"Precision CNC Components. Built for Your Machine's Peak Performance."

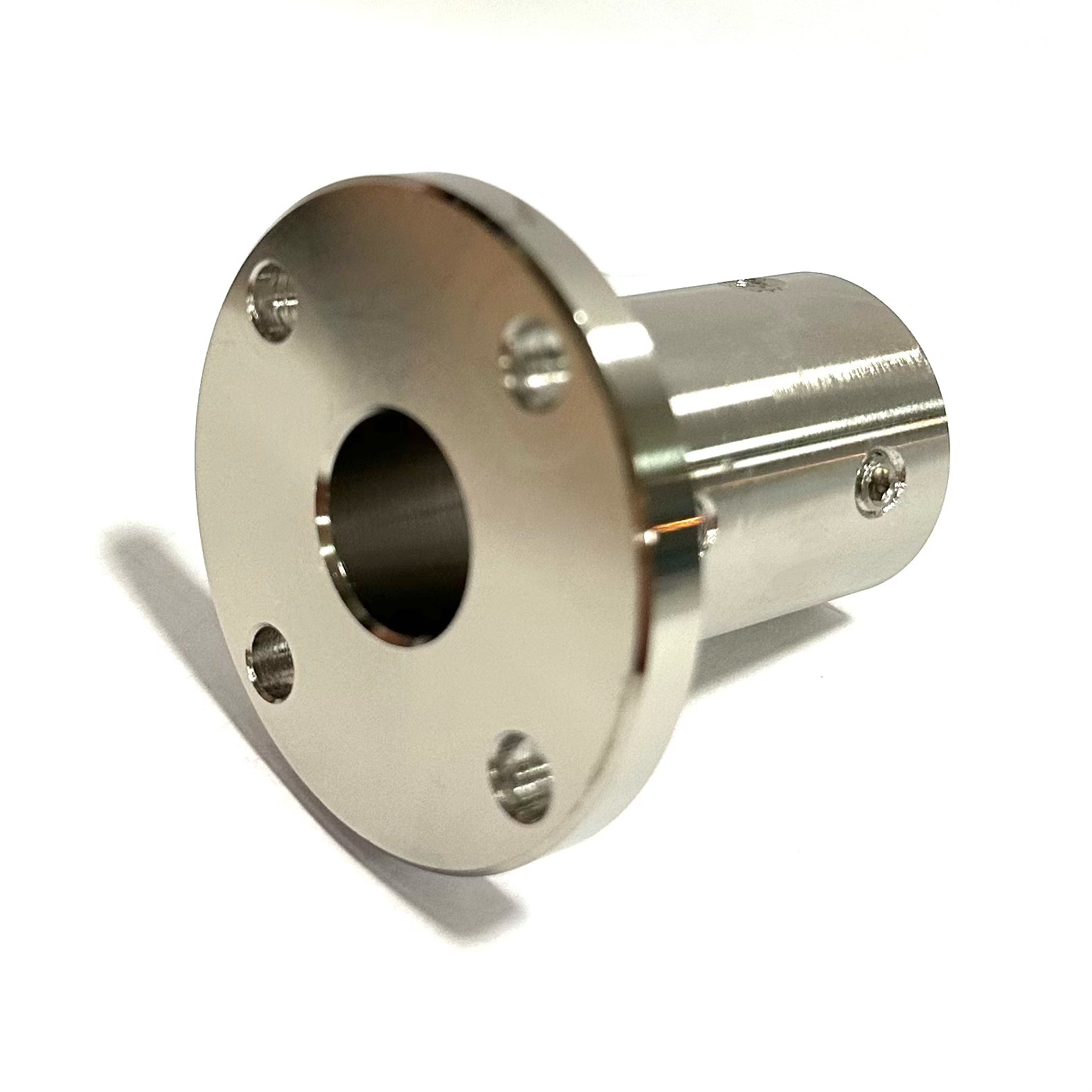

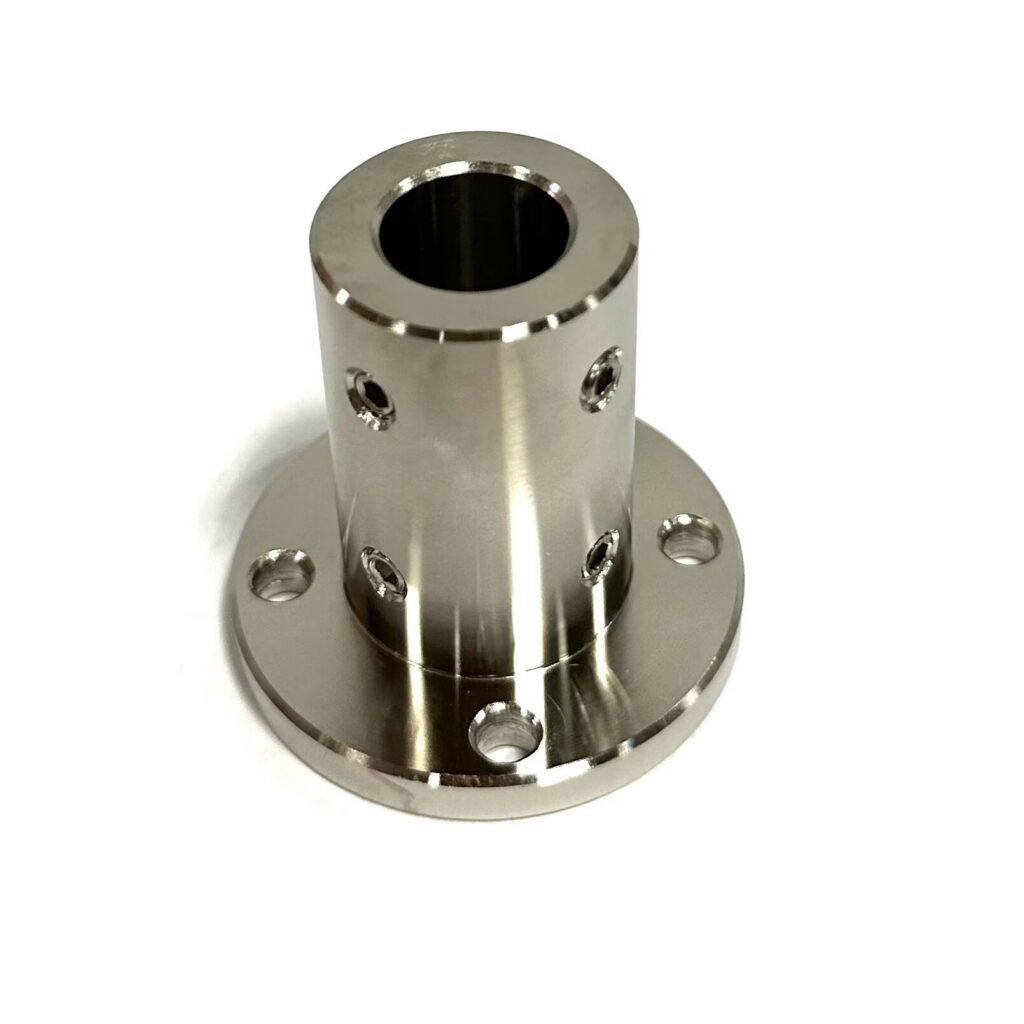

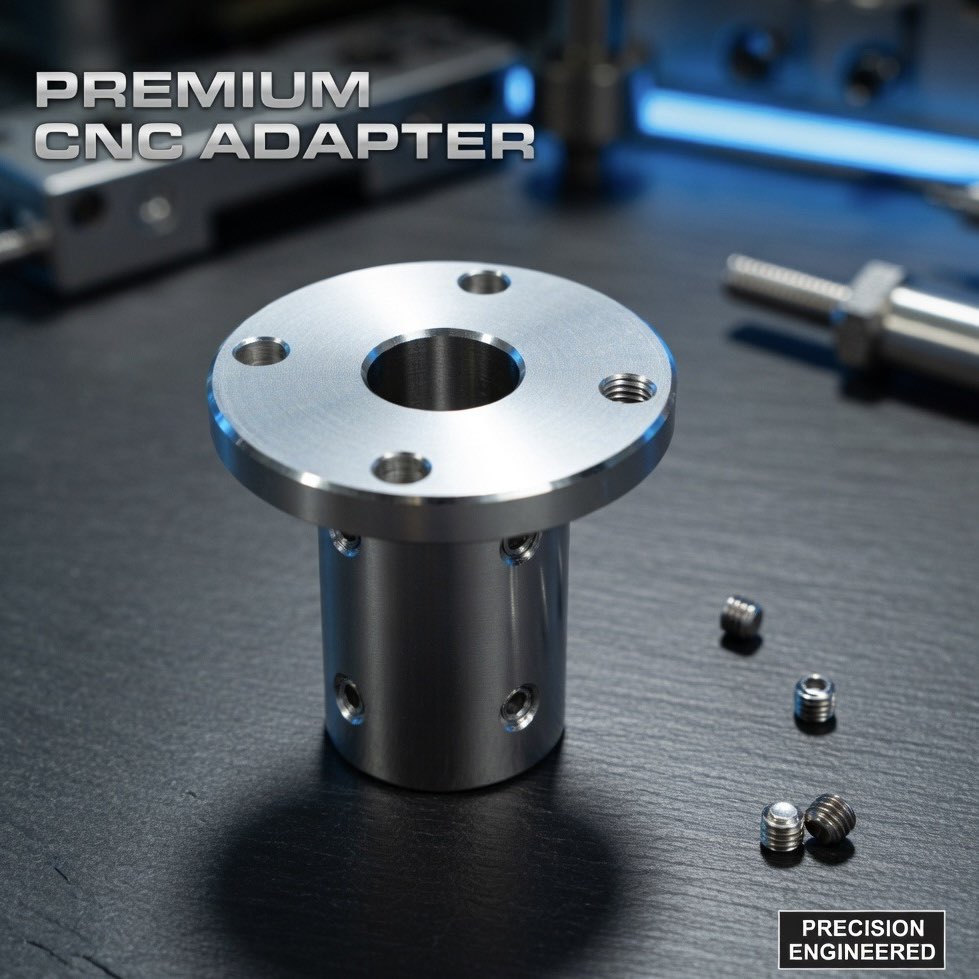

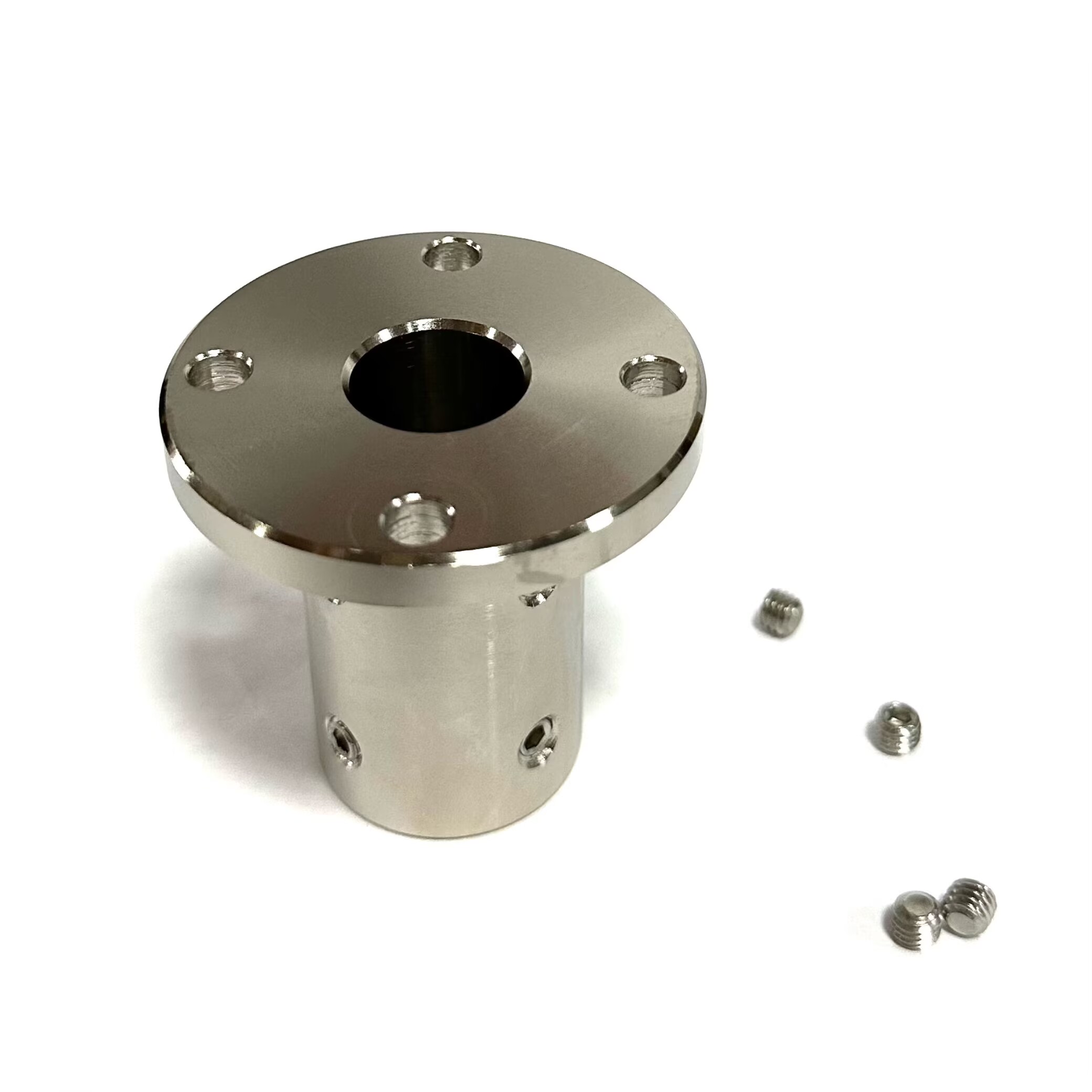

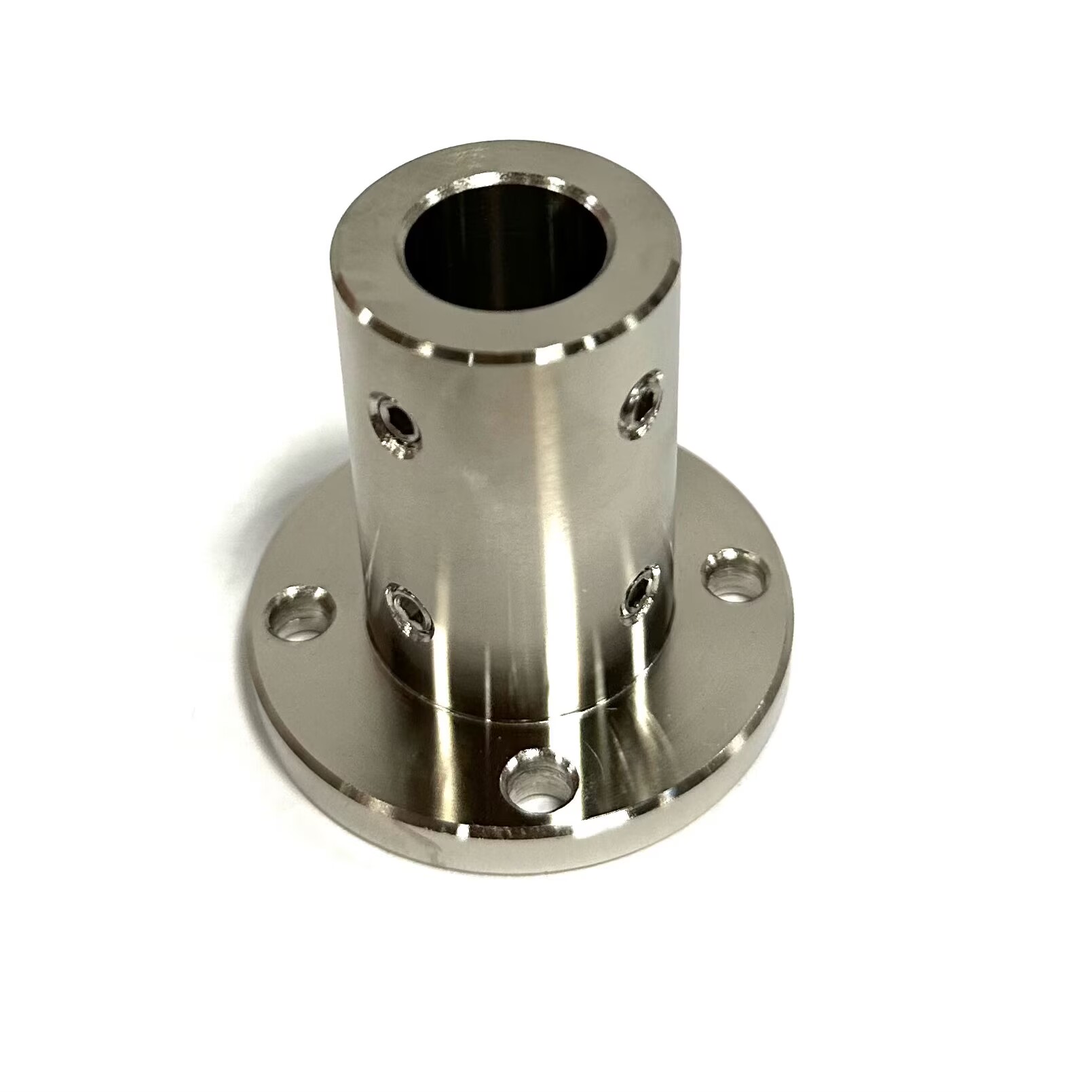

Flanged Shaft Supports | Through/Tapped Mounting Holes
PRODUCT PARAMETERS
Description
Key Features
- Premium Material Options: Crafted from stainless steel (303/304/316) or carbon steel, with optional surface finishes (passivation, nickel plating, anodization) for corrosion resistance and durability.
- Flanged Mount Design: Wide flange base ensures secure installation and maximum load distribution, reducing vibration and improving system accuracy.
- Flexible Mounting: Choose between through holes (for bolt-through installation) or tapped holes (for direct screw mounting) to match your equipment setup.
- High Precision Machining: Tight tolerance control guarantees smooth shaft rotation and consistent performance, compatible with standard linear shafts and interchangeable with leading brands (e.g., Misumi, STHWRL).
- Customization Available: We accept custom sizes, hole patterns, and materials to meet your specific application requirements.
Applications
- Industrial automation lines & robotic arms
- CNC machine tools & precision measuring instruments
- Packaging machinery & 3C manufacturing equipment
- Linear motion systems & conveying equipment
- Medical devices & optical instruments
Technical Specifications
表格
| Parameter | Details |
|---|---|
| Material | Stainless Steel / Carbon Steel (customizable) |
| Mounting Holes | Through Holes / Tapped Holes (selectable) |
| Shaft Diameter Range | 6mm – 50mm (custom sizes available) |
| Finish | Passivation / Nickel Plating / Anodization |
| Tolerance | ±0.01mm (precision machining) |
| Application | Linear shaft support, alignment & fixation |
