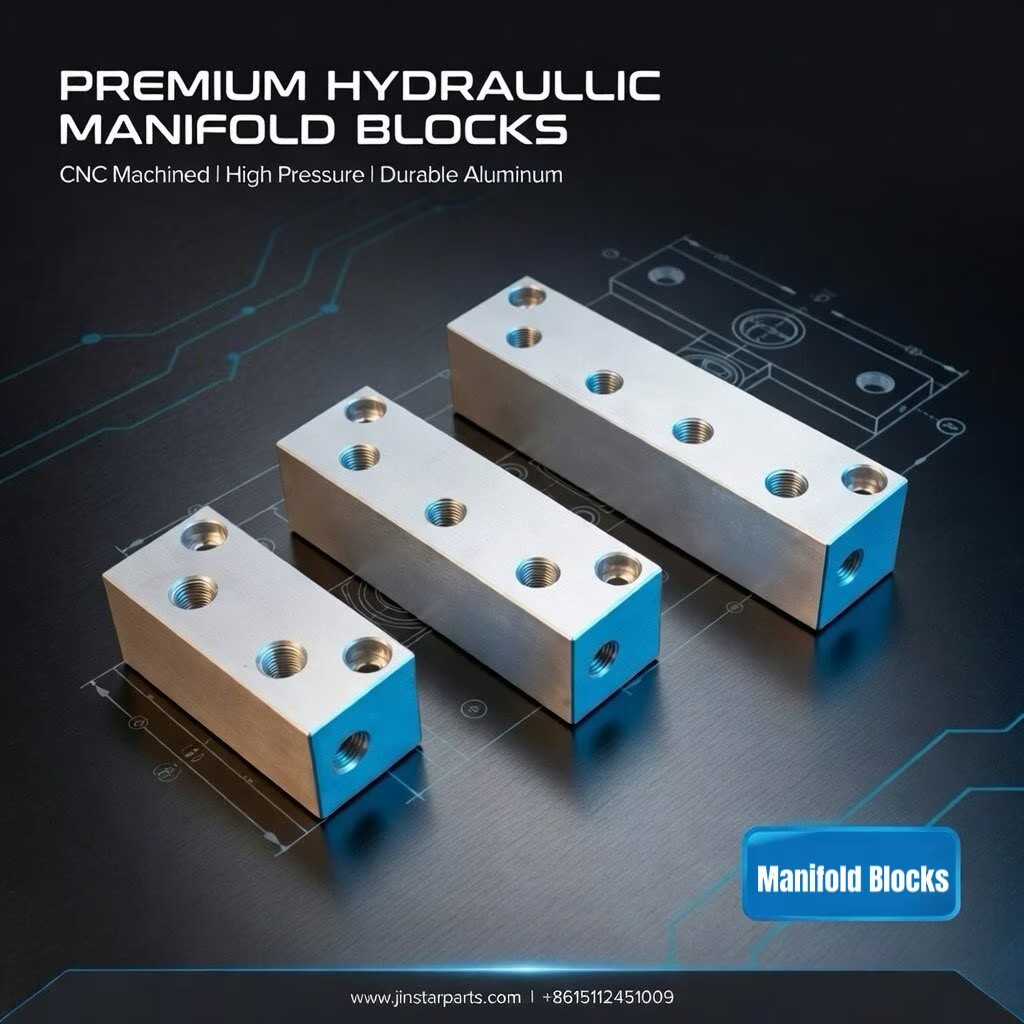

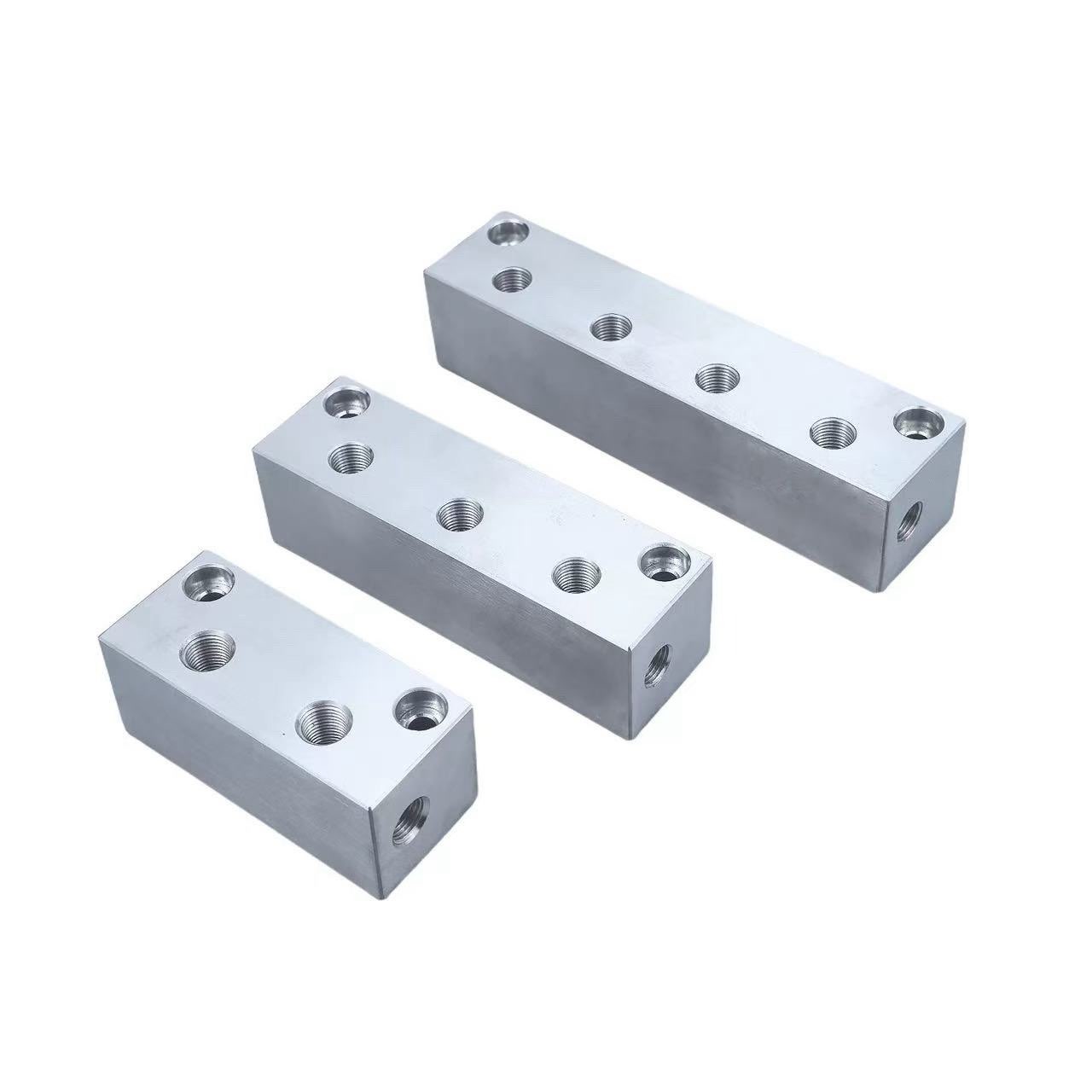

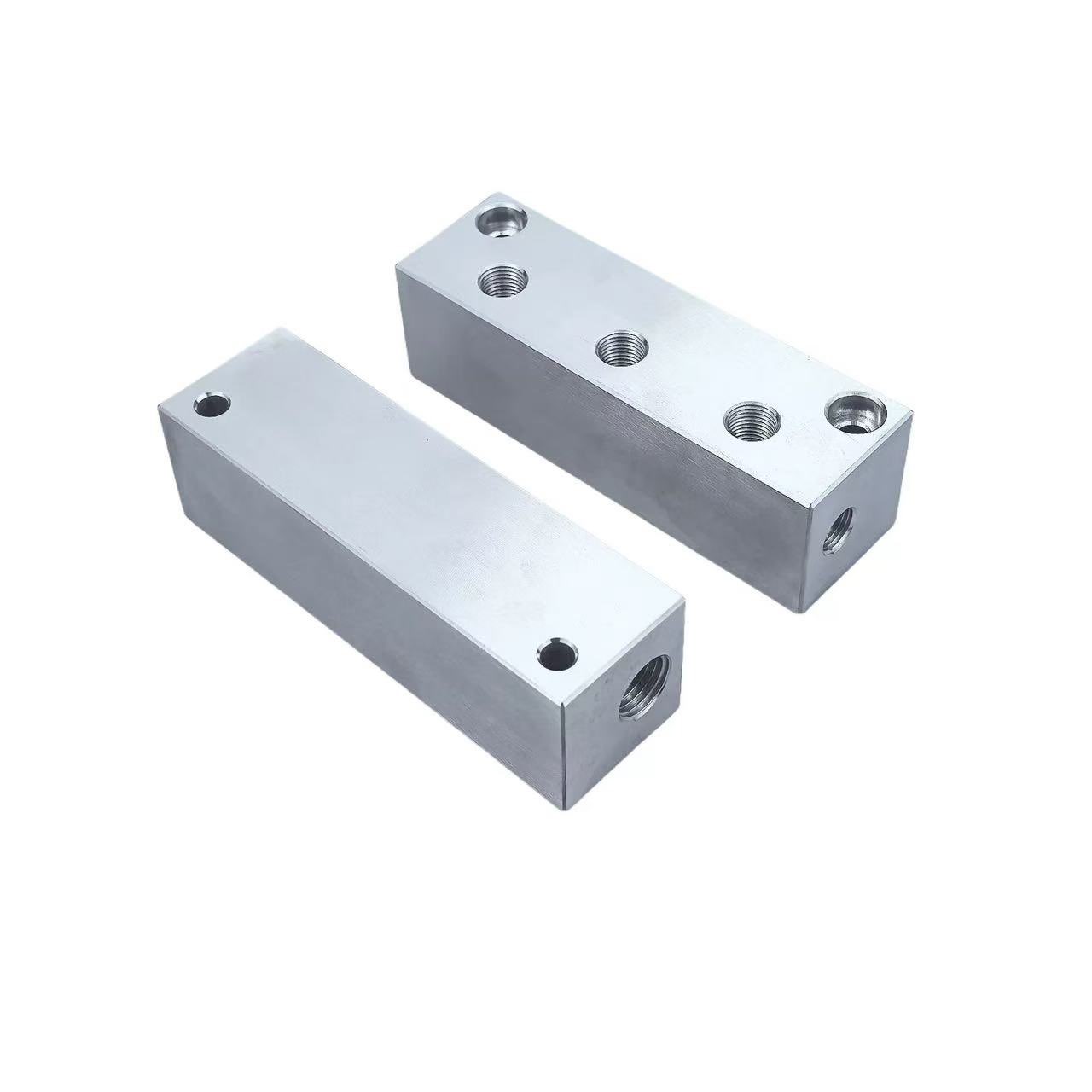

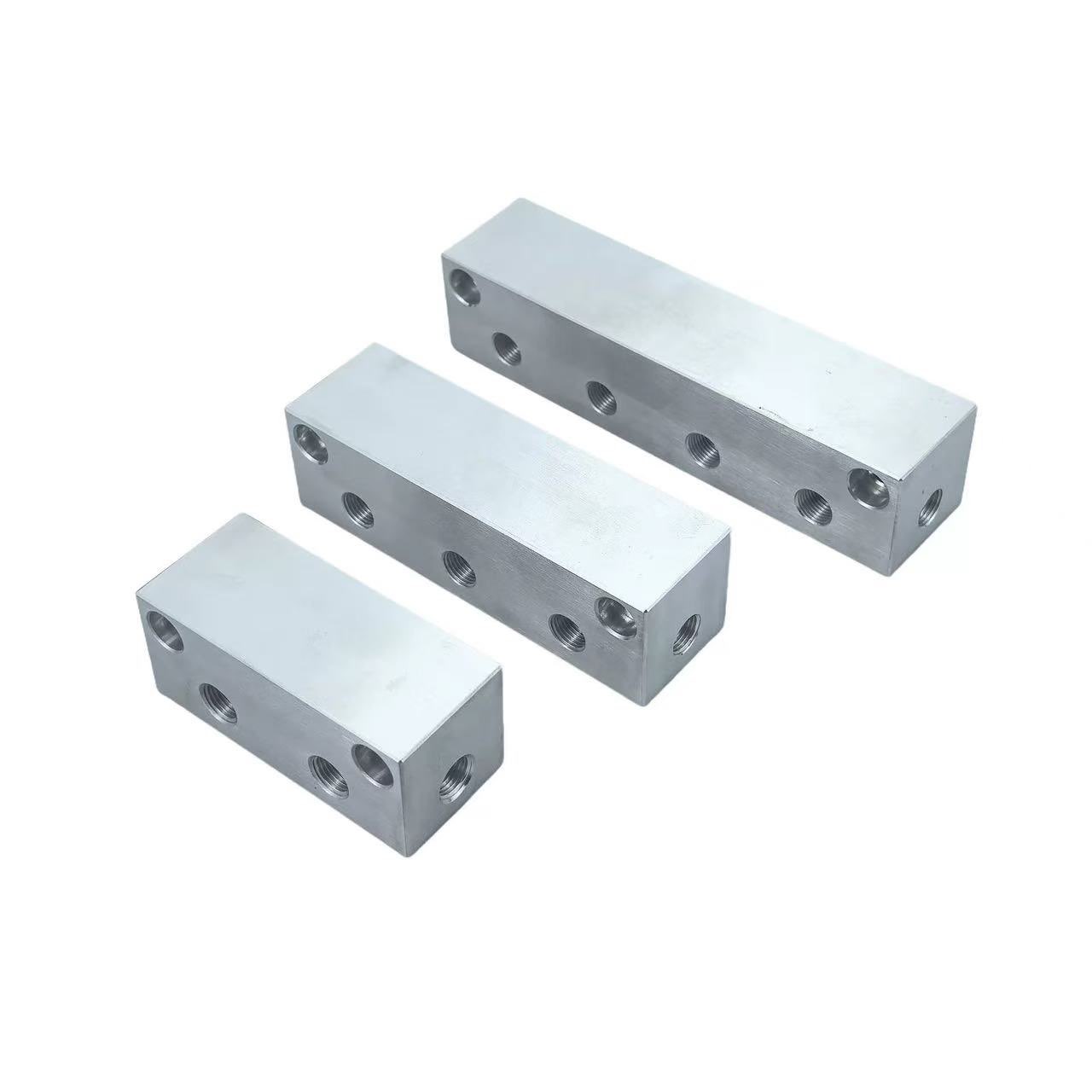

Manifold Blocks – Hydraulic or Pneumatic, Vertical Mounting Holes
PRODUCT PARAMETERS
Description
Our custom CNC machined manifold blocks are available in both hydraulic and pneumatic versions, featuring precision vertical mounting holes. Manufactured with strict tolerances, these blocks deliver leak-proof performance and superior durability for industrial automation, robotics, and heavy machinery applications.
Hydraulic & Pneumatic Manifold Blocks | CNC Machined Custom Manifolds
Key Features
- Fast custom prototypes and production
- Custom CNC Machined with tight tolerances (±0.02mm)
- Hydraulic & Pneumatic Compatible
- Vertical Mounting Holes for easy installation
- Leak-Proof Design with superior surface finish
- High-Pressure Rated for demanding applications
- Available in Aluminum, Carbon Steel, and Stainless Steel
Our high-performance hydraulic and pneumatic manifold blocks are precision-engineered using advanced CNC machining technology. Designed with vertical mounting holes, these manifold blocks provide maximum stability and simplified installation in compact automation systems.
Whether you need standard or fully custom manifold solutions, our blocks are built to exact specifications to ensure optimal fluid flow, minimal pressure drop, and zero leakage. Ideal for industrial automation equipment, hydraulic power units, pneumatic control systems, and custom machinery.
Available Materials: Aluminum (lightweight), Carbon Steel, Stainless Steel 304/316
Applications: • Industrial Automation • Robotics & Motion Control • Hydraulic Power Packs • Pneumatic Valve Banks • Custom Machinery
Manifold Blocks Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Custom CNC Machined Hydraulic & Pneumatic Manifold Blocks |
| Mounting Type | Vertical Mounting Holes |
| Material Options | Aluminum 6061/7075, Carbon Steel, Stainless Steel 304/316 |
| Machining Tolerance | ±0.02 mm (Standard) / ±0.01 mm (Precision) |
| Surface Finish | Ra 0.8 – 1.6 μm (Ports & Sealing Surfaces) |
| Maximum Pressure | Hydraulic: Up to 350 bar (5000 psi) Pneumatic: Up to 40 bar (580 psi) |
| Port Thread Types | NPT, BSPP, SAE, Metric (Custom available) |
| Port Sizes | 1/8″ to 2″ (Custom port sizes & configurations) |
| Mounting Hole Sizes | M6, M8, M10, M12, 1/4-20 UNC (Custom available) |
| Operating Temperature | -40°C to +120°C (Material dependent) |
| Leakage | Zero leakage (with proper O-ring/sealing) |
| Flow Optimization | CFD designed internal passages for minimal pressure drop |
| Customization | Fully custom designs, port configurations, and sizes available |
