Extra Short Threaded Stud Floating Connectors
PRODUCT PARAMETERS
Description

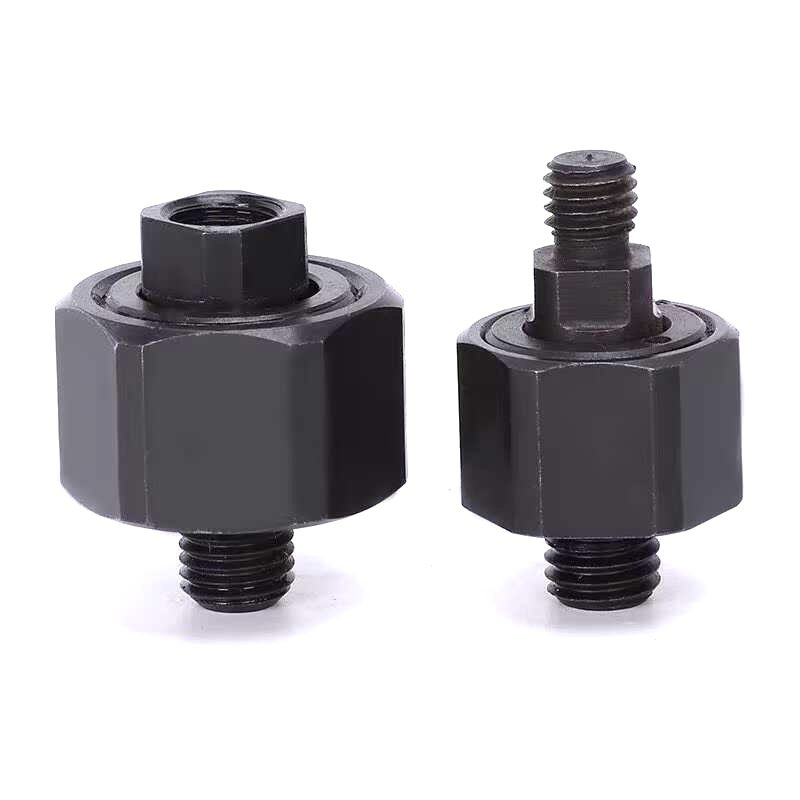

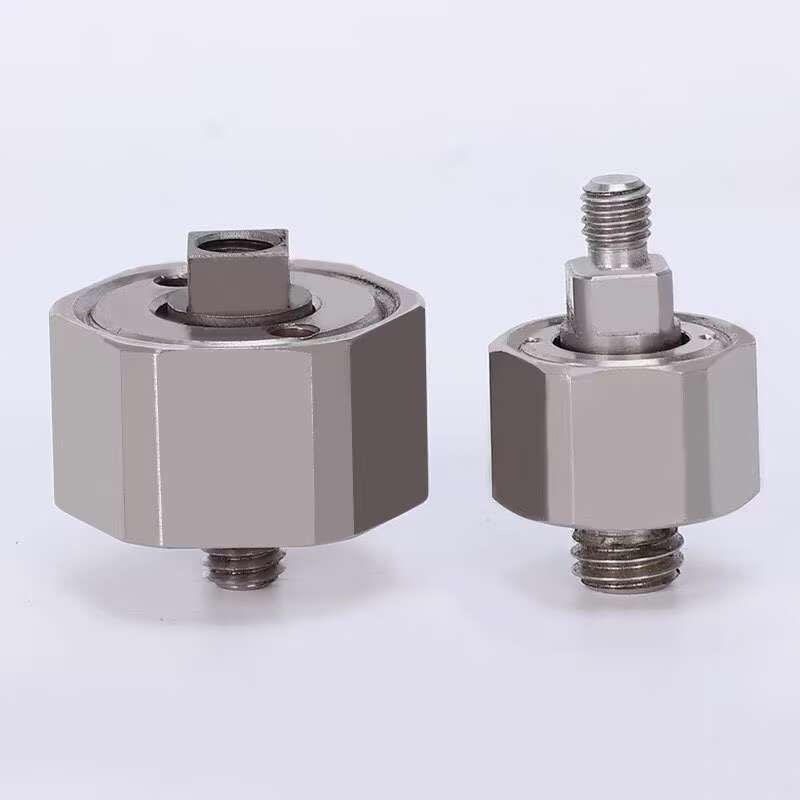

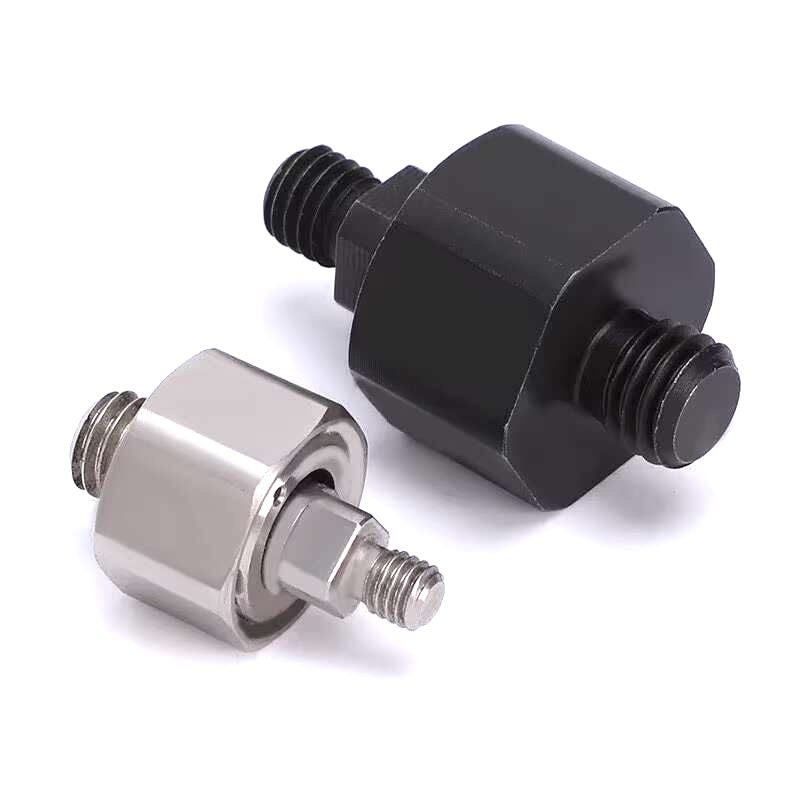

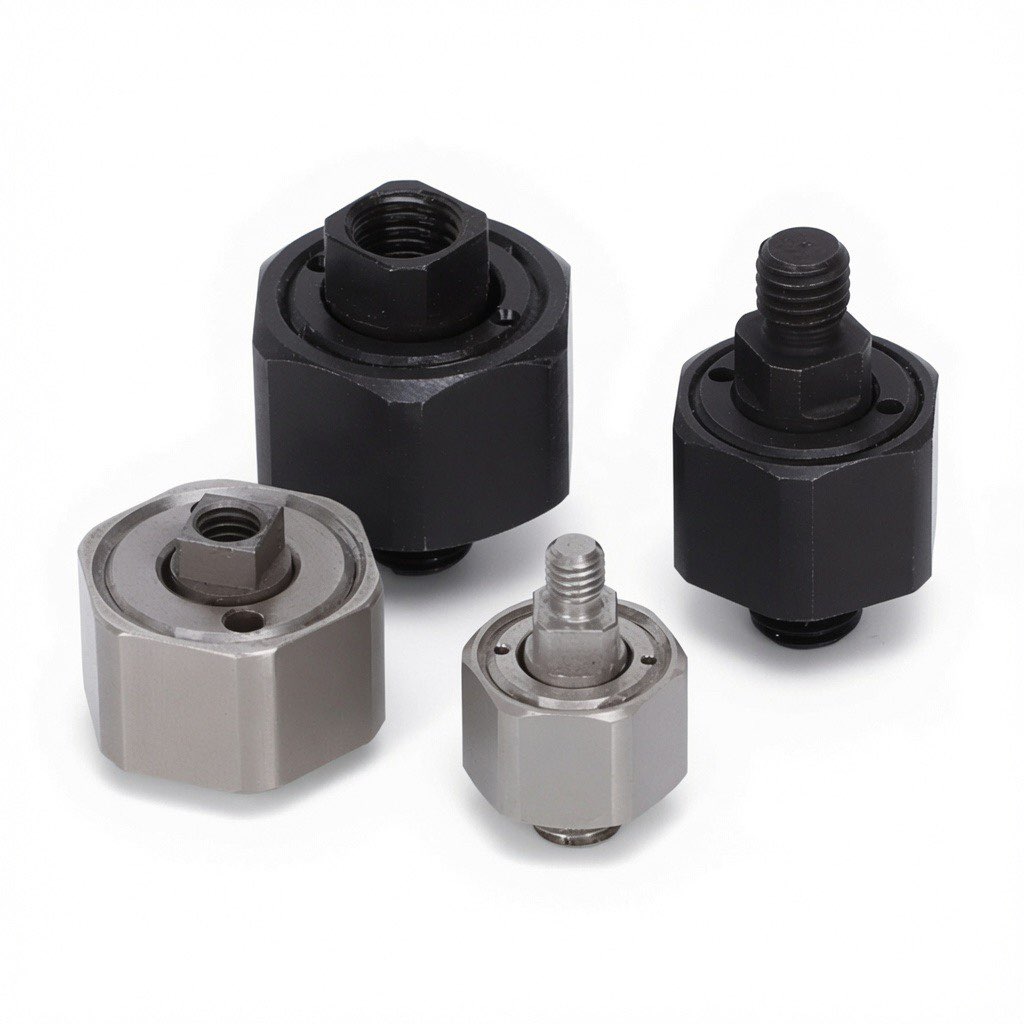

Precision Floating Connectors – Extra Short Threaded Stud Mount (Tapped & Threaded Versions)
In precision machinery, automation systems, and modular assemblies, Short Stud Floating Connectors are essential components that enable fast alignment, compensate for misalignment, and reduce mechanical stress. This product page showcases two high-performance variants:
- Floating Connectors – Extra Short Threaded Stud Mount, Tapped (Internal Thread)
- Floating Connectors – Extra Short Threaded Stud Mount, Threaded (External Thread)
These compact floating fasteners are manufactured from high-strength alloy steel with black oxide or silver finish, offering excellent durability and corrosion resistance. Designed specifically for space-constrained, high-accuracy industrial applications.
Key Features & Benefits
- Ultra-Short Stud Design The significantly shortened stud length reduces overall installation height, making these connectors ideal for thin panels, compact machinery, and tight-space environments. Installation height is typically 30%-50% lower than standard floating connectors, optimizing your equipment design.
- Radial Float Compensation The unique floating mechanism provides ±0.5mm to ±1.0mm of radial play, automatically compensating for installation tolerances, thermal expansion, and vibration. This prevents thread binding, stress concentration, and premature component wear.
- Two Versatile Versions
- Tapped (Internal Thread): Features a female thread on top, perfect for bolting from above or hidden installations.
- Threaded (External Thread): Equipped with a male stud for direct screw-in assembly, enabling fast modular connections.
- Heavy-Duty Hex Body Precision CNC-machined hexagonal housing allows easy wrench tightening while providing superior torque resistance and anti-rotation stability.
- Premium Materials & Finish Constructed from high-grade alloy steel. Available in robust black oxide finish for maximum corrosion protection or silver finish for cleanroom and aesthetic applications.
Technical Specifications
Common Specifications:
- Material: High-strength alloy steel (stainless steel optional)
- Surface Treatment: Black oxide or nickel-plated
- Float Compensation: Radial ±0.5mm ~ ±1.0mm (model dependent)
- Mounting Type: Threaded stud with floating disc
- Operating Temperature: -40°C to +150°C
Tapped Version (Internal Thread)
- Hex across flats: 25mm / 32mm
- Thread sizes: M6, M8, M10, M12
- Overall height: Ultra-short ~18-25mm
- Mounting hole diameter: Φ6.5–Φ13mm
Threaded Version (External Thread)
- Hex across flats: 25mm / 32mm
- Thread sizes: M6, M8, M10, M12
- Overall height: Ultra-short ~20-28mm
- Stud length: 8-15mm (customizable)
Wide Range of Applications
- Automation & Robotics: Industrial robots, CNC machines, automated assembly lines
- New Energy: Solar mounting systems, energy storage cabinets, battery modules
- Automotive & Rail: Instrument panels, battery packs, seat adjustment mechanisms
- Medical Equipment: Precision diagnostic devices and modular medical systems
- Aerospace: Lightweight structures and instrument mounting
- Electronics & Communications: Server racks, base stations, LED display frames
These floating connectors significantly improve assembly efficiency and reduce rework rates, especially in high-volume production.
Why Choose Our Floating Connectors?
- Precision Manufacturing: Full CNC machining ensures tight tolerances .
- Fast Delivery: Ready stock available. Small-batch customization with lead time as short as 3 days.
Customer Testimonial: “Switching to these extra short floating connectors cut our modular equipment assembly time by 40% and eliminated alignment issues. The float compensation is excellent.” — Procurement Manager, Automation Equipment Manufacturer
Ordering & Customization
We offer both Tapped (Internal Thread) and Threaded (External Thread) versions. Custom options include thread size, float range, material, and special finishes. OEM/ODM services are welcome. Sample orders and bulk pricing available.
Contact us today for pricing, samples, or technical datasheets! Available via phone, WhatsApp, or email – support available worldwide.
