Super Compact Perpendicular Strut Clamps with Wing Knob

Super Compact Strut Clamps – Perpendicular Configuration with Wing Knob

Discover the ultimate solution for secure, space-efficient pipe and strut mounting with our Super Compact Strut Clamps – Perpendicular Configuration, Wing Knob. Designed for professionals in construction, electrical, mechanical, and industrial automation, these high-performance clamps deliver reliable fastening in tight spaces while allowing quick, tool-free adjustments.

Why Choose Super Compact Strut Clamps?

In today’s fast-paced industrial environments, every millimeter and minute counts. Traditional strut clamps can be bulky, time-consuming to install, and difficult to reconfigure. Our Super Compact Perpendicular Strut Clamps solve these challenges with a sleek, low-profile design optimized for perpendicular (90-degree) mounting.

Key Features:

• Ultra-Compact Design: Engineered for minimal footprint, ideal for dense strut channel systems, tight equipment enclosures, and modular frameworks. Perfect where standard clamps won’t fit.
• Perpendicular Configuration: Specifically built to clamp pipes or rods at a right angle to the strut channel, ensuring stable horizontal or vertical support for piping, conduits, sensors, or structural elements.

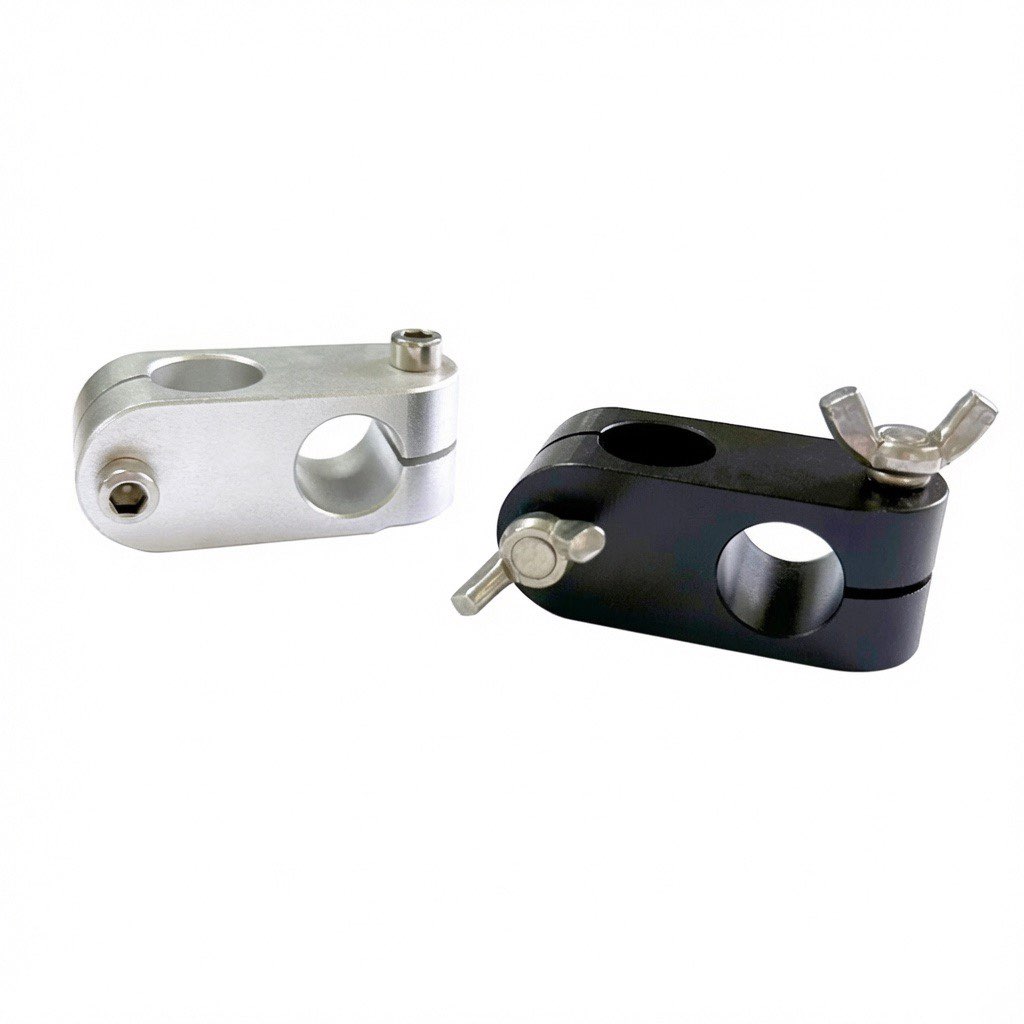

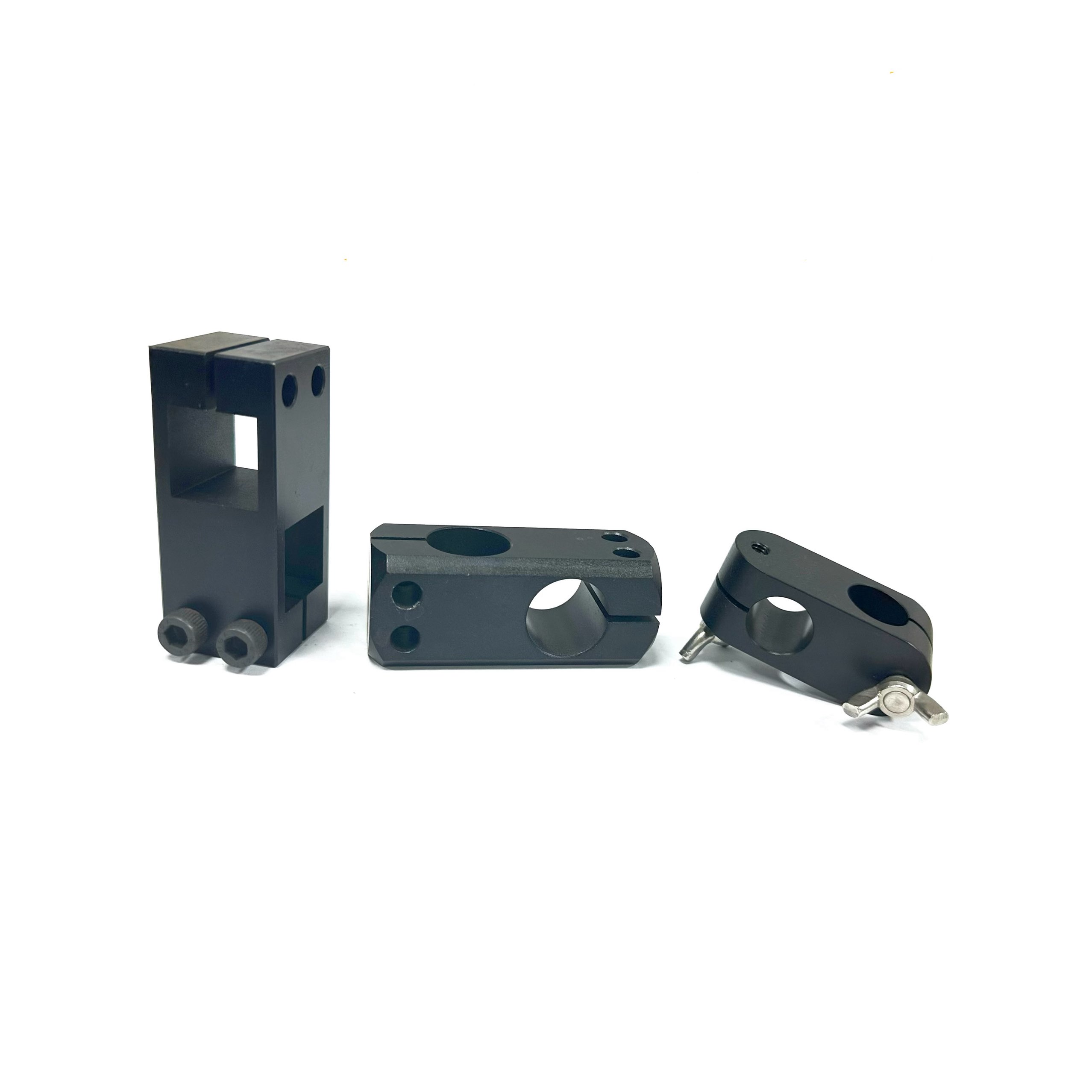

• Convenient Wing Knob: Hand-tightenable wing knob eliminates the need for tools, enabling rapid setup changes, frequent repositioning, and easy maintenance—perfect for prototyping, test fixtures, or dynamic production lines.
• Double-Hole Stability: Dual mounting holes provide superior grip and load distribution, reducing vibration and enhancing overall system integrity.
• Premium Materials: Available in durable options like 1018 carbon steel (with protective finishes), 6063 aluminum alloy, or 304 stainless steel for corrosion resistance in harsh environments.
• Equal & Unequal Diameter Compatibility: Supports various pipe and post sizes with precision-machined edges for a secure, non-slip fit

Super Compact Strut Clamps Technical Specifications

• Type: Perpendicular Configuration with Wing Knob
• Sizes: Multiple options (e.g., compatible with 6mm–30mm+ diameters; check specific part numbers like ALNCC10-6 series)
• Load Capacity: Engineered for reliable support in light-to-medium duty applications (consult load charts for your exact configuration)
• Finish Options: Clear anodizing, black oxide, or stainless for optimal durability
• Mounting: Compatible with standard strut channels (Unistrut-style)
• RoHS Compliant: Environmentally friendly design

Whether you’re securing electrical conduits, hydraulic lines, or structural posts, these clamps offer precise fit and long-term reliability.

Benefits for Your Projects

1. Space Savings: The super compact profile frees up valuable real estate in crowded installations, allowing more components in less space.
2. Time Efficiency: Wing knob design cuts installation time dramatically—no wrenches needed. Ideal for frequent reconfiguration in R&D labs, maintenance shops, or modular machinery.
3. Enhanced Safety & Stability: Perpendicular clamping with double holes minimizes movement, vibration, and potential failures, protecting your entire system.
4. Versatility: Suitable for HVAC, plumbing, electrical, solar panel mounting, machinery framing, and more. Works with both equal and unequal diameter setups.
5. Cost-Effective: High-quality performance at an affordable price point, reducing overall project expenses without compromising on durability.
6. Easy Maintenance: Quick release and repositioning make inspections and upgrades simple, minimizing downtime.

Users in industrial automation and construction praise these clamps for their robustness and user-friendly operation, making them a go-to choice for both permanent installations and temporary fixtures.

Applications

• Electrical & Conduit Support: Secure cables and pipes perpendicular to strut channels in commercial buildings and data centers.
• Factory Automation: Mount sensors, actuators, and pneumatic lines on modular frames.
• HVAC & Plumbing: Stable support for tubing in tight mechanical rooms.
• OEM Machinery: Custom fixtures and test rigs requiring frequent adjustments.
• Renewable Energy: Lightweight yet strong mounting for solar and wind installations.
• Robotics & Prototyping: Flexible solutions for dynamic environments.

Installation Guide

1. Position the clamp on your strut channel at the desired perpendicular angle.
2. Align the pipe or rod through the clamp opening.
3. Hand-tighten the wing knob until secure.
4. Verify stability and load distribution.

Pro Tip: For high-vibration environments, consider adding lock washers or thread-locking compound for extra security.

Why Buy from Us?

As a dedicated supplier of premium industrial hardware, we offer:

• Competitive pricing with bulk discounts
• Fast shipping and reliable stock availability
• Expert technical support
• Full compatibility with major strut systems

Upgrade your strut assemblies today with Super Compact Strut Clamps – Perpendicular Configuration, Wing Knob. Experience the perfect balance of compactness, convenience, and strength that professionals demand.

Order now and transform how you build and maintain your structural systems. For custom sizes, material specifications, or bulk inquiries, contact our sales team.
