Round Coaxial Right-Angle Strut Clamp (Same Diameter)
PRODUCT PARAMETERS
Description
Round Coaxial Right-Angle Strut Clamp | Same-Diameter Cross Connector

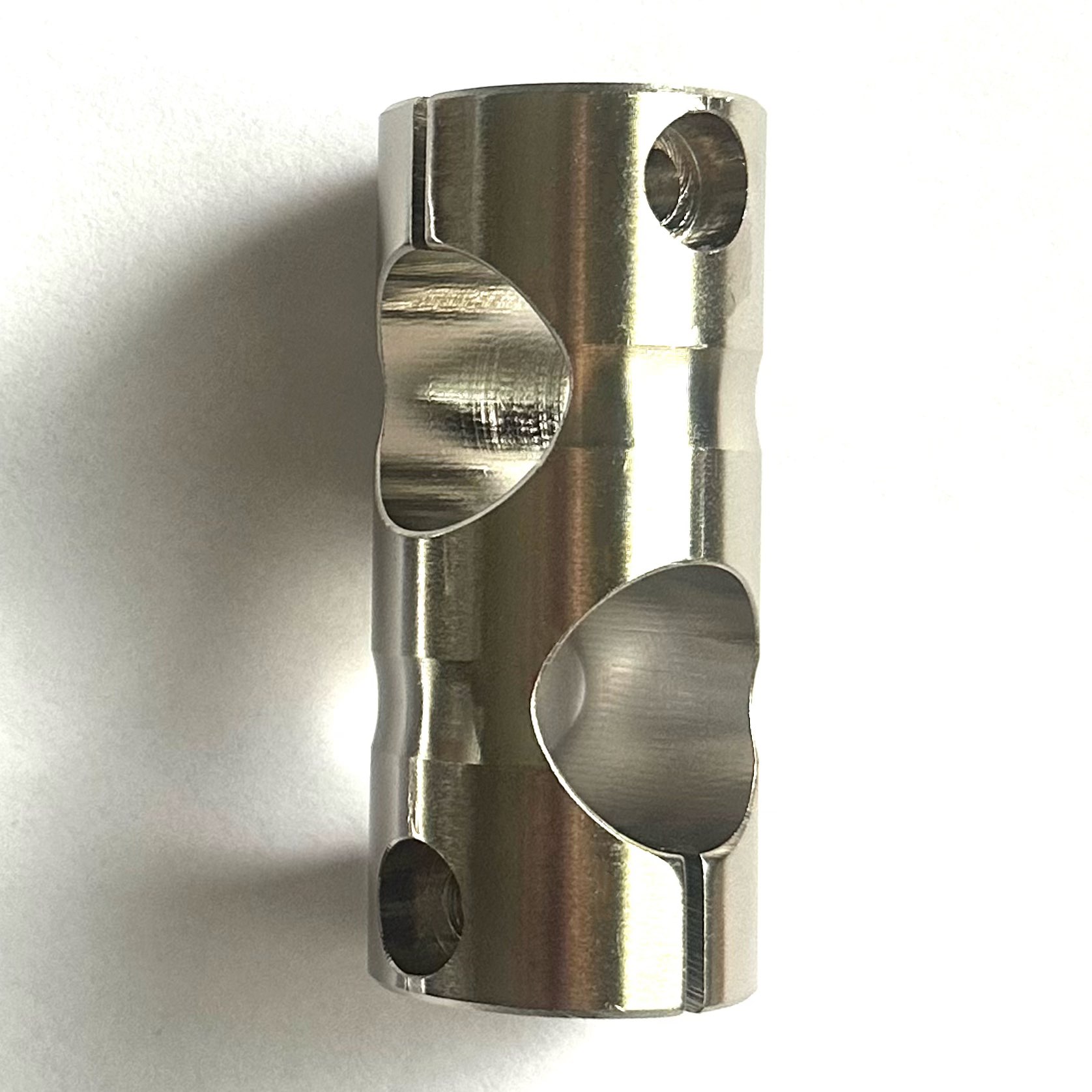

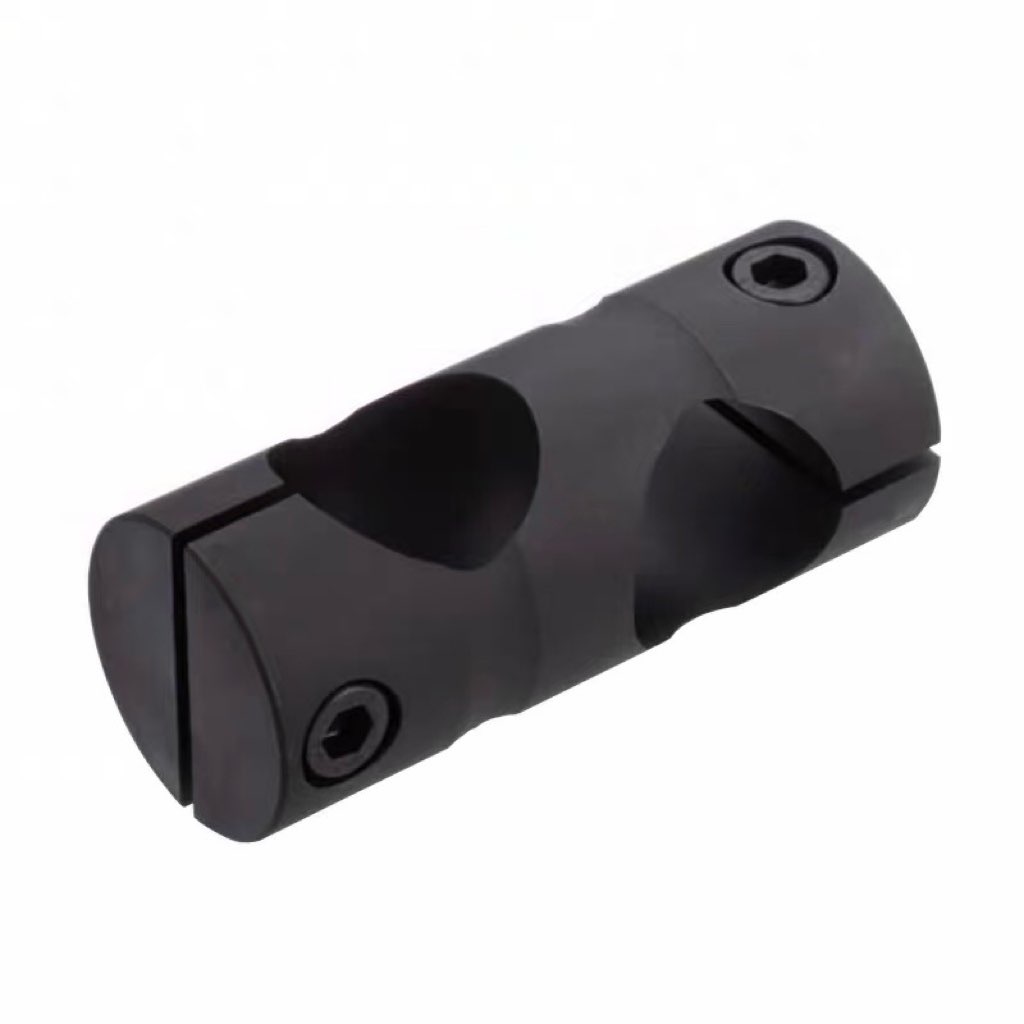

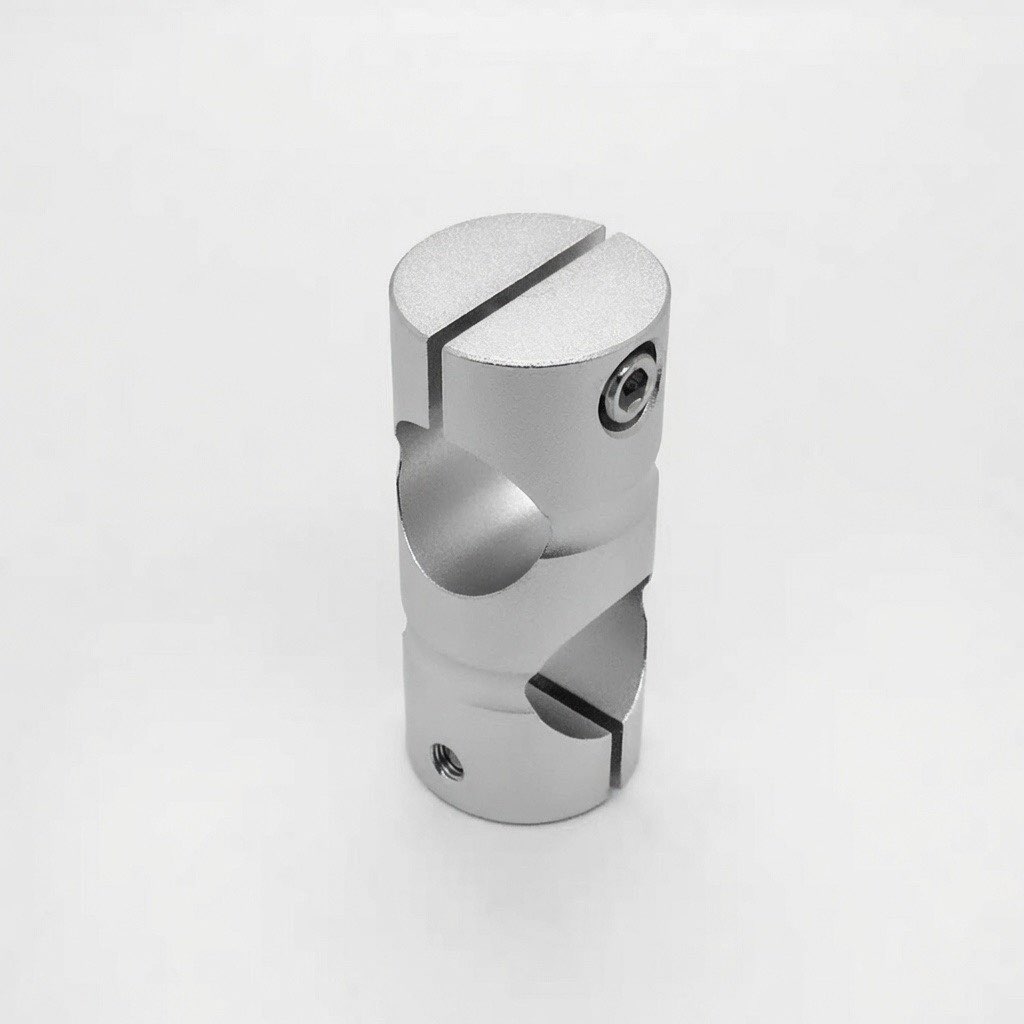

The Round Coaxial Right-Angle Strut Clamp (Same Diameter) is an engineered, high-precision mechanical hardware solution designed to lock two round bars, linear shafts, or pipes of identical diameters at a perfect 90-degree orthogonal configuration. Built with an integrated, highly space-efficient coaxial design, this clamp enables intersecting rods to cross closely and rigidly while maintaining absolute alignment under physical load.

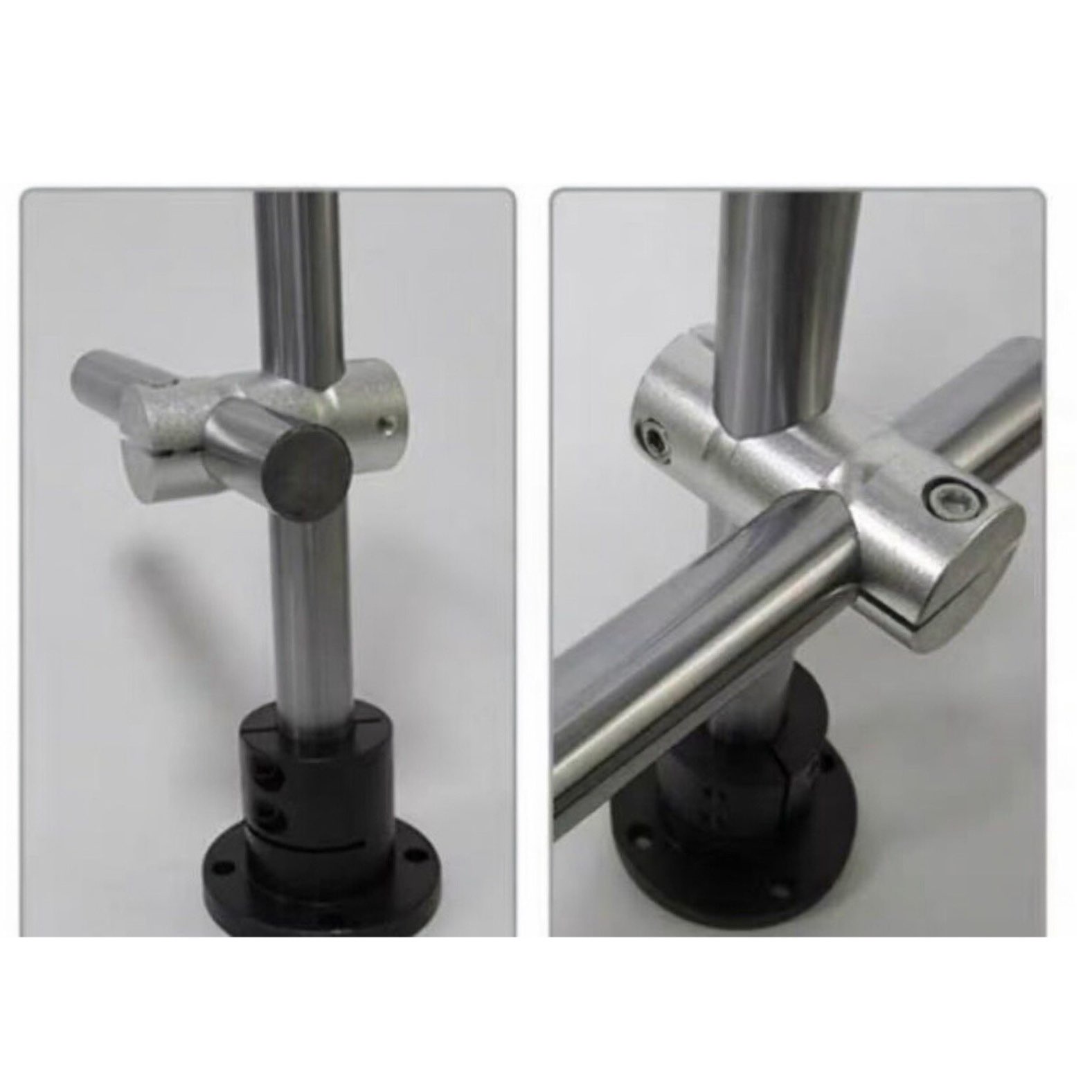

As demonstrated in image.png, this multi-axis crossover bracket delivers a rigid, deflection-free anchoring point that is ideal for structural buildouts requiring maximum stability and quick adjustment. Tightened using top-tier integrated hex socket cap screws , the advanced split-body clamping profile exerts a massive, non-destructive circumferential holding force. This makes it an ideal, premium alternative to traditional permanent welding, pinning, or manual threading methods in modern modular framing systems.
Round Coaxial Strut Clamp Key Features & Engineered Advantages
Perfect 90° Coaxial Orthogonal Precision: Specialized CNC bore machining guarantees a strict perpendicular layout between the two channels, completely eliminating tolerance stack-ups and protecting system accuracy during multi-axis mechanical movements.
Uniform Concentric Grip, Zero Rod Defacement: The unique split-collar body wraps completely around the pipe perimeter. When tightened, it applies a smooth, high-friction clamp that prevents axial sliding or rotational play without scoring, scratching, or denting the mating shafts.
Rapid Adjustability & Maximum Reusability: No permanent modifications required. The assembly can be easily released, realigned, or repositioned vertically or horizontally along the main pillar by simply loosening the screws, giving modular grids unlimited configuration potential.
Industrial-Grade Material Options: Precision manufactured in clear/black anodized aerospace aluminum alloy (6061-T6) for lightweight, corrosion-resistant framing, as well as premium oxide-coated carbon steel or stainless steel for high-load, heavy-duty industrial environments.
Round Coaxial Strut Clamp Technical Specifications
| Parameter | Specification Details |
| Product Name | Round Coaxial Right-Angle Strut Clamp (Same Diameter) |
| Intersection Angle | Fixed 90° Right-Angle Crosspoint |
| Mating Profile Type | Round Tubes / Smooth Linear Shafts / Rigid Structural Rods |
| Bore Size Match ($D_1 = D_2$) | Standard 8mm, 10mm, 12mm, 15mm, 16mm, 20mm, 25mm, 30mm (Custom mm/inch sizing supported) |
| Material Selection | AL6061-T6 Aluminum Alloy / Grade 45 Carbon Steel / SUS304 Stainless Steel |
| Surface Finish | Satin Sandblasted Clear Anodizing, Matte Black Anodizing, or Chemical Black Oxide |
| Fasteners Included | High-Tensile Grade 12.9 Alloy Steel Hex Socket Cap Screws |
Industrial Applications
This versatile equal-diameter right-angle strut clamp is universally implemented across a variety of industrial assembly configurations:
- Industrial Automation & Conveying:Rigidly supports photo-eye brackets, proximity sensors, sensor flags, laser line levels, and smart vision cameras on multi-axis conveyor rails.
- Laboratory Racking & Medical Apparatus: Connects cleanroom equipment modules, analytical test instrument arrays, and adjustable fluid/gas line manifolds.
- Camera Rigging & Studio Support: Creates robust, vibration-isolated crossbars for overhead light grids, studio slider rails, and custom professional camera equipment cages.
- Robotics & Custom Prototyping: Acts as structural chassis framing joints for commercial 3D printer enclosures, CNC gantry rigs, and automated robotic testing cells.
5. Standard Installation Walkthrough
- Primary Axis Positioning: Slide the main vertical rod or stand-post through the first open clamping bore to your required height position.
- Cross Axis Insertion: Slide the matching-diameter horizontal crossbar smoothly into the intersecting coaxial right-angle bore.
- Dual-Fastener Torquing: Alternately tighten the premium hex socket cap screws on each end using a standard Allen wrench. The split collar will cleanly collapse, compressing both bars into an unyielding, rigid structural intersection.
6. Why Source From Us?
We specialize in serving international industrial distributors, automation engineers, and OEM clients worldwide.
- Strict Tolerance Control:Our right-angle clamps have precise bores for wobble-free, smooth shaft fitting.
- Flexible OEM/ODM Customization: We customize bore specs and surface finishes per your drawings.
- Global Supply Chain Reliability: As a manufacturer, we offer low MOQs, factory pricing and fast global shipping.
