Straight cross-type reducer strut clamp

Precision Straight Cross-Type Reducer Strut Clamps | Multi-Size Shaft Mounting Solutions

Enhance the stability and versatility of your linear motion systems, automation frames, and structural assemblies with our high-quality straight cross-type strut clamp. These robust split-type aluminum clamps are engineered to securely hold round shafts, struts, or tubes while allowing easy cross-mounting and size reduction between different diameters.

As clearly shown in the product image, our strut clamps feature a precision-machined split design with a large central bore, side mounting holes, and sturdy clamping bolts. Available in multiple sizes, they provide reliable shaft fixation with excellent alignment and vibration resistance.

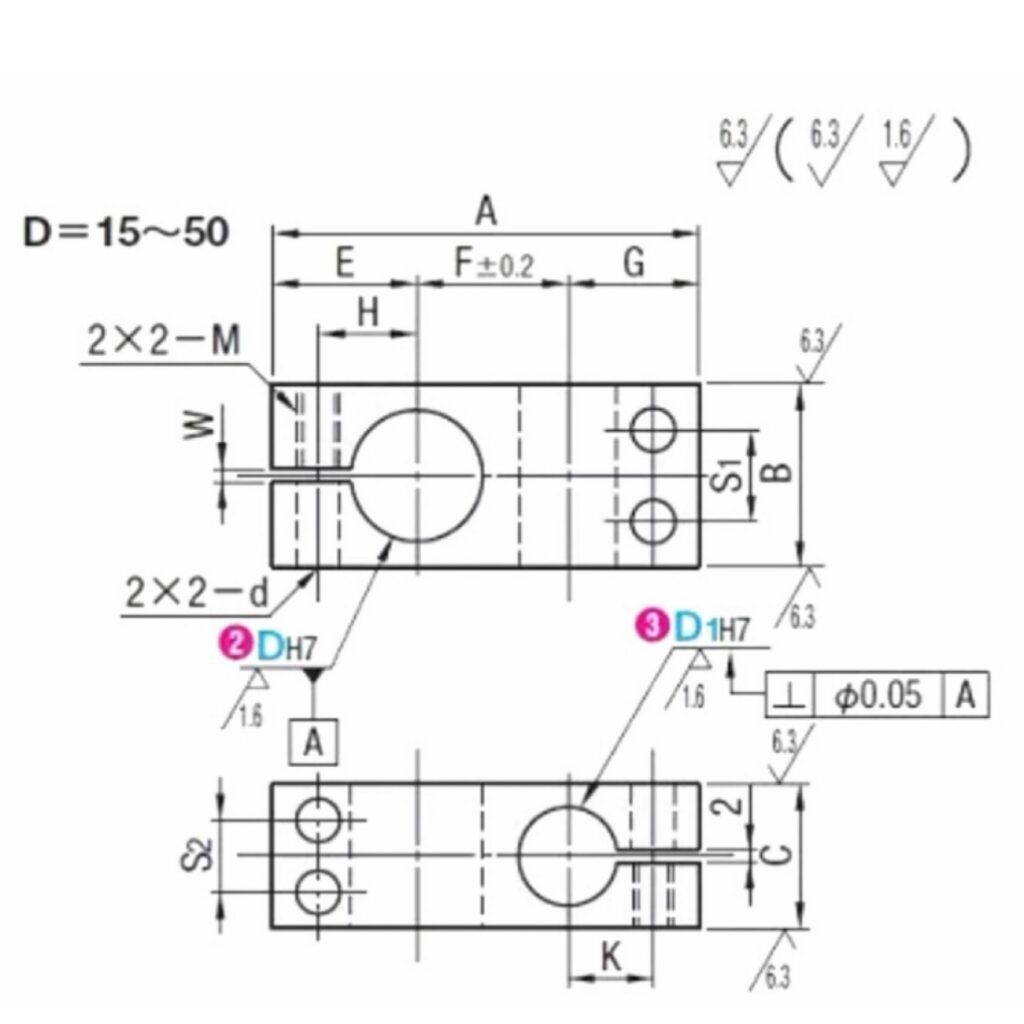

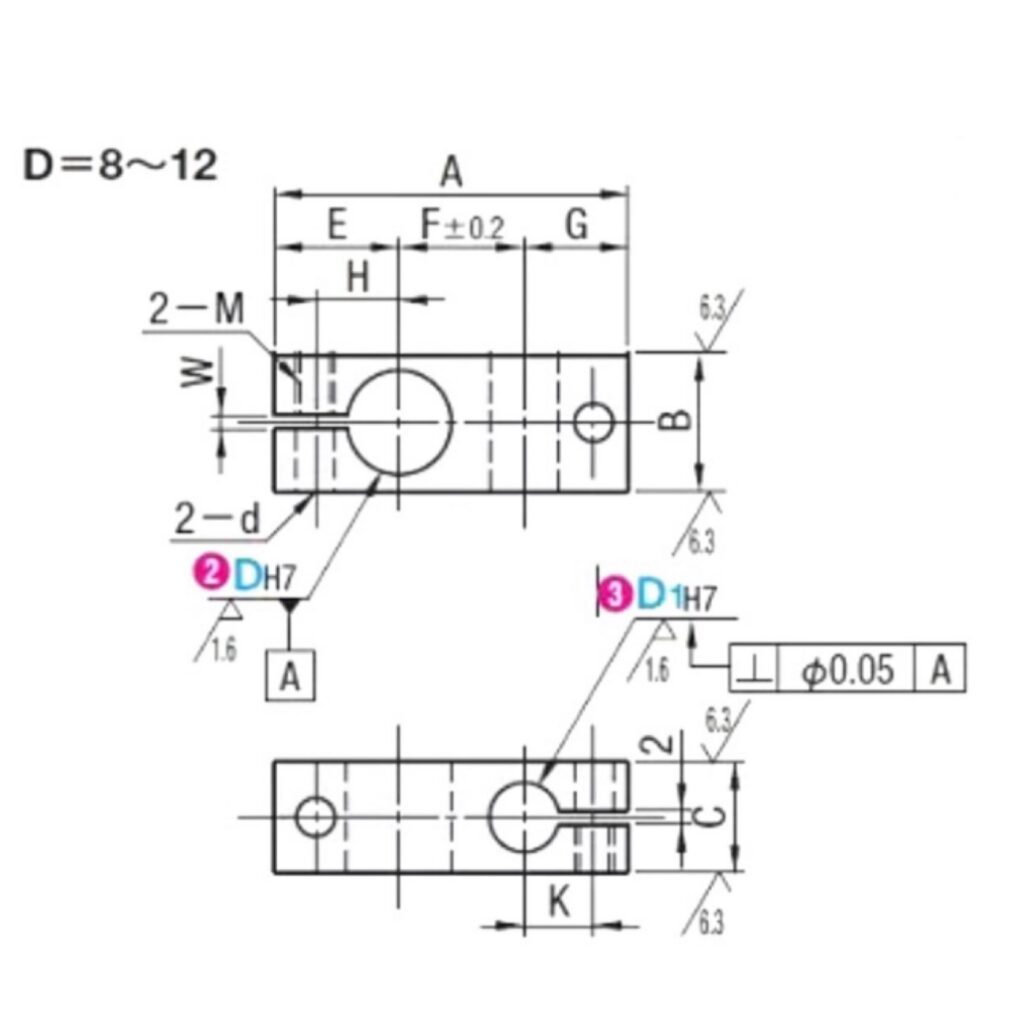

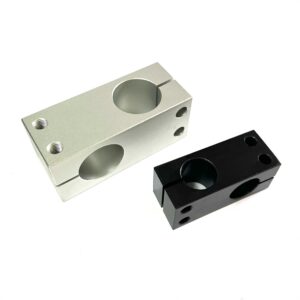

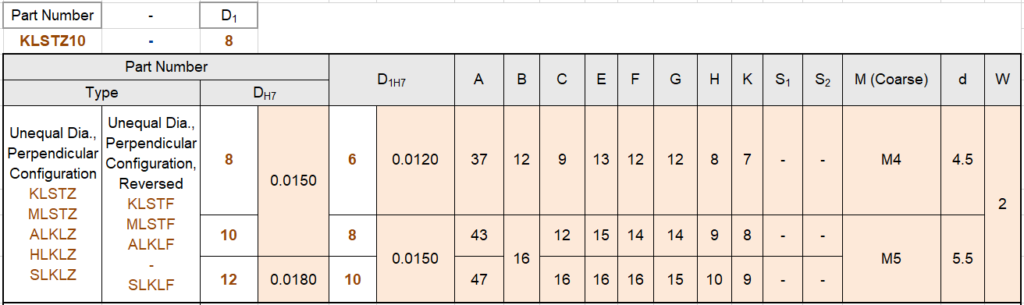

Unequal Dia., Perpendicular Configuration, Reversed:The fastener screws are inserted in the opposite side of the above Unequal Dia., Perpendicular Configuration.

Why Choose Our Straight Cross-Type Reducer Strut Clamps?

In linear guide systems, CNC machines, and T-slot aluminum extrusion builds, securely mounting round shafts is critical for precision and longevity. Our Straight Cross-Type Reducer Strut Clamps offer a strong, adjustable solution that simplifies assembly while maintaining perfect perpendicularity and concentricity.

Key Features & Benefits:

Straight Cross-Type Strut Clamp Key Features & Benefits:

• Split Design with Clamping Bolts: Easy installation and removal without sliding components off the shaft.
• Cross-Type Mounting Capability: Side mounting holes allow perpendicular attachment to plates, frames, or other profiles.
• Reducer Function: Ideal for connecting or adapting between different shaft diameters in one assembly.
• High-Strength Aluminum Alloy: Lightweight yet rigid 6061-T6 material reduces overall system weight while maintaining durability.
• Precision Machined Bores: Tight tolerances ensure excellent shaft grip and minimal play.
• Silver Anodized Finish: Professional appearance with superior corrosion resistance and cleanroom compatibility.
• Multiple Sizes Available: One product family supports a wide range of shaft diameters from small to large.
• Strong Holding Power: Even clamping force prevents shaft slippage under dynamic loads.

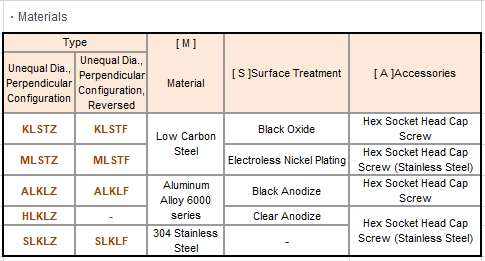

Technical Specifications

• Material: 6061-T6 Aluminum Alloy
• Surface Treatment: Silver Anodized
• Design: Straight Cross-Type Split Clamp with Reducer Capability
• Mounting: Dual threaded holes on the side for M4/M5/M6 bolts

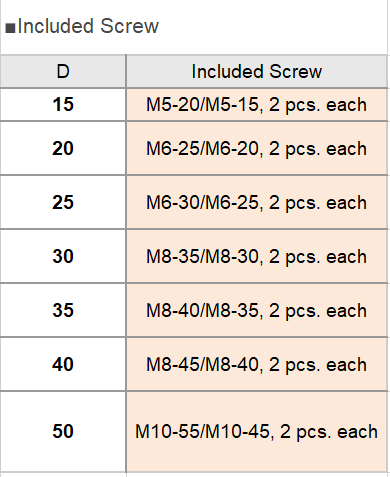

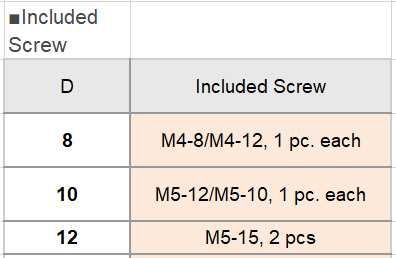

• Clamping Method: Hex socket head bolts (included on most models)
• Bore Sizes: Ø6mm, Ø8mm, Ø10mm, Ø12mm, Ø15mm, Ø20mm, Ø25mm, and custom options
• Load Capacity: High radial and axial holding strength (model dependent)
• Operating Temperature: -40°C to +150°C
• Applications: Linear shafts, round tubes, strut profiles, and guide rods

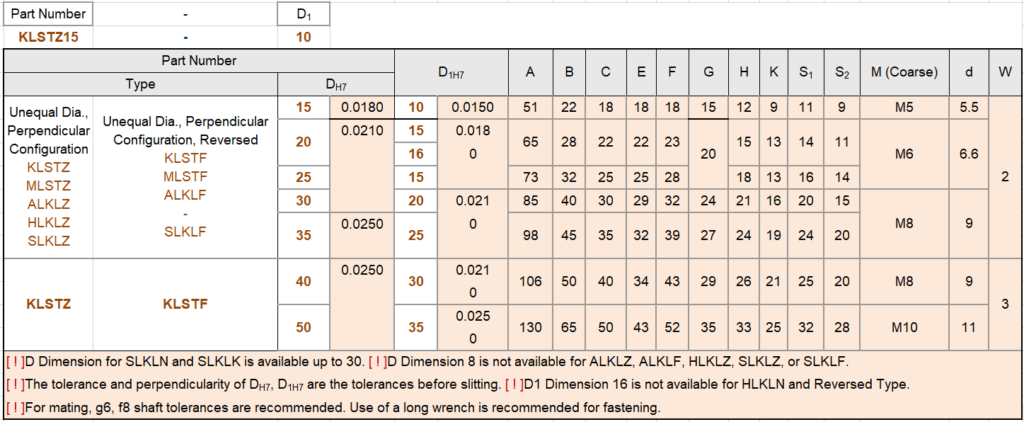

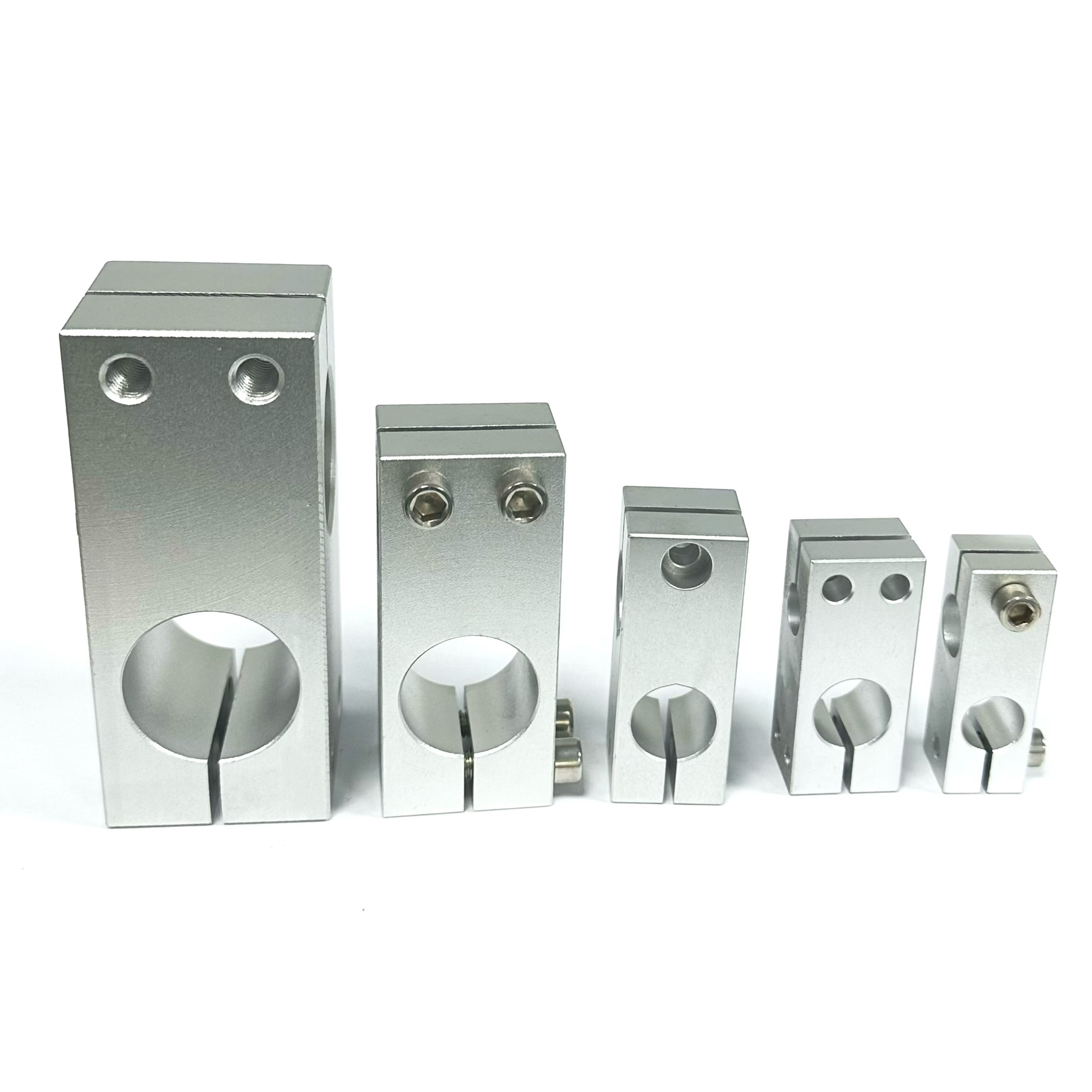

The image displays a clear size progression, making it easy to select the right clamp for your specific shaft diameter and structural requirements.

Wide Range of Applications

• CNC Routers & Laser Engravers: Secure linear guide shafts and lead screws
• 3D Printers & DIY CNC: Stable shaft mounting on aluminum extrusion frames
• Automation & Robotics: Fixed-axis supports and structural connections
• Material Handling Equipment: Conveyor rollers and guide rail systems
• Workstations & Fixtures: Adjustable strut and tube clamping
• Medical & Lab Automation: Clean, lightweight precision assemblies
• Photovoltaic & Solar Tracking Systems: Structural shaft supports

These versatile clamps are favored by engineers, makers, and industrial manufacturers for their reliability and ease of use.

Easy Installation Guide

1. Loosen the clamping bolts to open the split.
2. Position the clamp around the shaft at the desired location.
3. Align the side mounting holes with your base or cross structure.
4. Tighten the bolts evenly to secure the shaft firmly in place.

No special tools required beyond a standard hex wrench, enabling fast assembly and adjustments.

Product Comparison

Quality Assurance

Every strut clamp is CNC precision machined, inspected for dimensional accuracy, and tested for clamping force. We maintain strict quality control to ensure consistent performance and long service life. These clamps serve as cost-effective, high-performance alternatives to MISUMI, THK, and other premium brands.
