Compact Perpendicular Strut Clamps, Variable Hole Diameters
PRODUCT PARAMETERS
Description

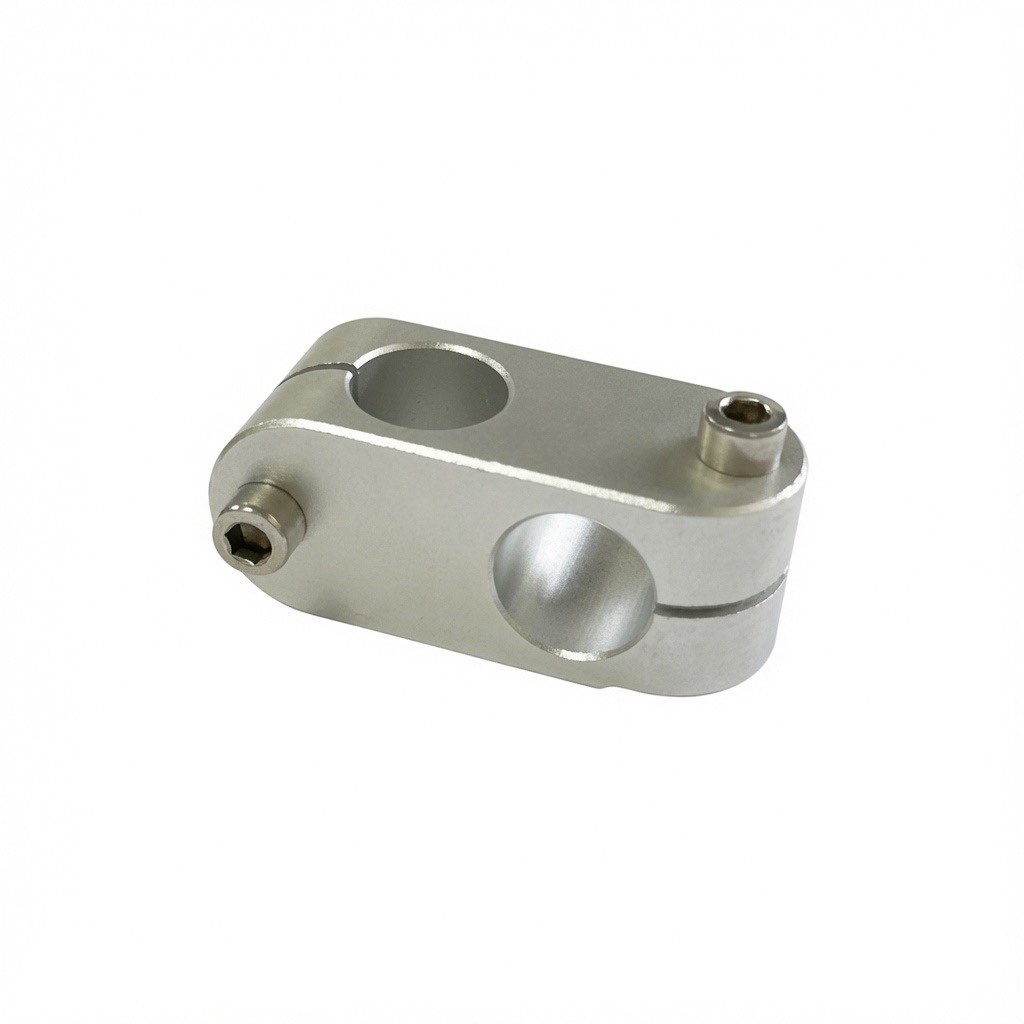

Compact Strut Clamps – Perpendicular Configuration
Same or Different Hole Diameter
The Compact Strut Clamps – Perpendicular Configuration is a high-performance fastening solution designed for 90-degree connections in strut channel, pipe support, and structural framing systems. Manufactured with precision CNC machining from high-strength aluminum alloy or galvanized steel, these clamps deliver excellent corrosion resistance and load-bearing capacity.
Its compact, one-piece design with dual perpendicular holes (same or different diameters) makes it ideal for space-constrained applications while maintaining maximum rigidity and ease of installation.
Key Features & Benefits
✅ Perpend.icular 90° Design
Precisely engineered 90-degree hole orientation for reliable right-angle strut channel connections.
✅ Same or Different Hole Diameters
Flexible configuration supports identical or mixed hole sizes (e.g., Ø20mm + Ø25mm), reducing inventory needs.
✅ High Strength & Compact
Small footprint with exceptional load capacity. Perfect for tight spaces without compromising performance.
✅ Tool-Free Quick Installation
Hex socket screws included. Single-person installation in seconds. Reusable and adjustable.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | 6061-T6 Aluminum Alloy or Galvanized Carbon Steel (Stainless Steel available) |
| Configuration | Perpendicular (90°) – Same or Different Diameters |
| Hole Diameter Options | 15mm / 20mm / 25mm / 30mm (custom combinations supported) |
| Fastening | Dual Hex Socket Screws (M6/M8) |
| Surface Finish | Anodized / Hot-Dip Galvanized / Powder Coated |
| Working Temperature | -40°C to +150°C |
| Load Capacity | Up to 500kg+ static load (per specifications) |
| Dimensions | Compact design: 80–120mm length (varies by model) |
Compact Perpendicular Strut Clamps Applications
- MEP (Mechanical, Electrical, Plumbing) support systems
- Solar PV mounting structures
- HVAC pipe and cable tray installations
- Industrial automation equipment frames
- Stage lighting and audio rigging
- Warehouse racking reinforcement
- Marine and rail infrastructure
Compact Perpendicular Strut Clamps Simple 3-Step Installation
- Position the clamp on the strut channel or structure at the desired 90° angle.
- Insert pipes, rods, or channels into the perpendicular holes.
- Tighten the hex socket screws with a standard Allen key to the recommended torque.
