"Precision CNC Components. Built for Your Machine's Peak Performance."
Custom Plastic Heatsink Frame with Metal Thermal Pad
PRODUCT PARAMETERS
Description
Custom Plastic Heatsink Frame

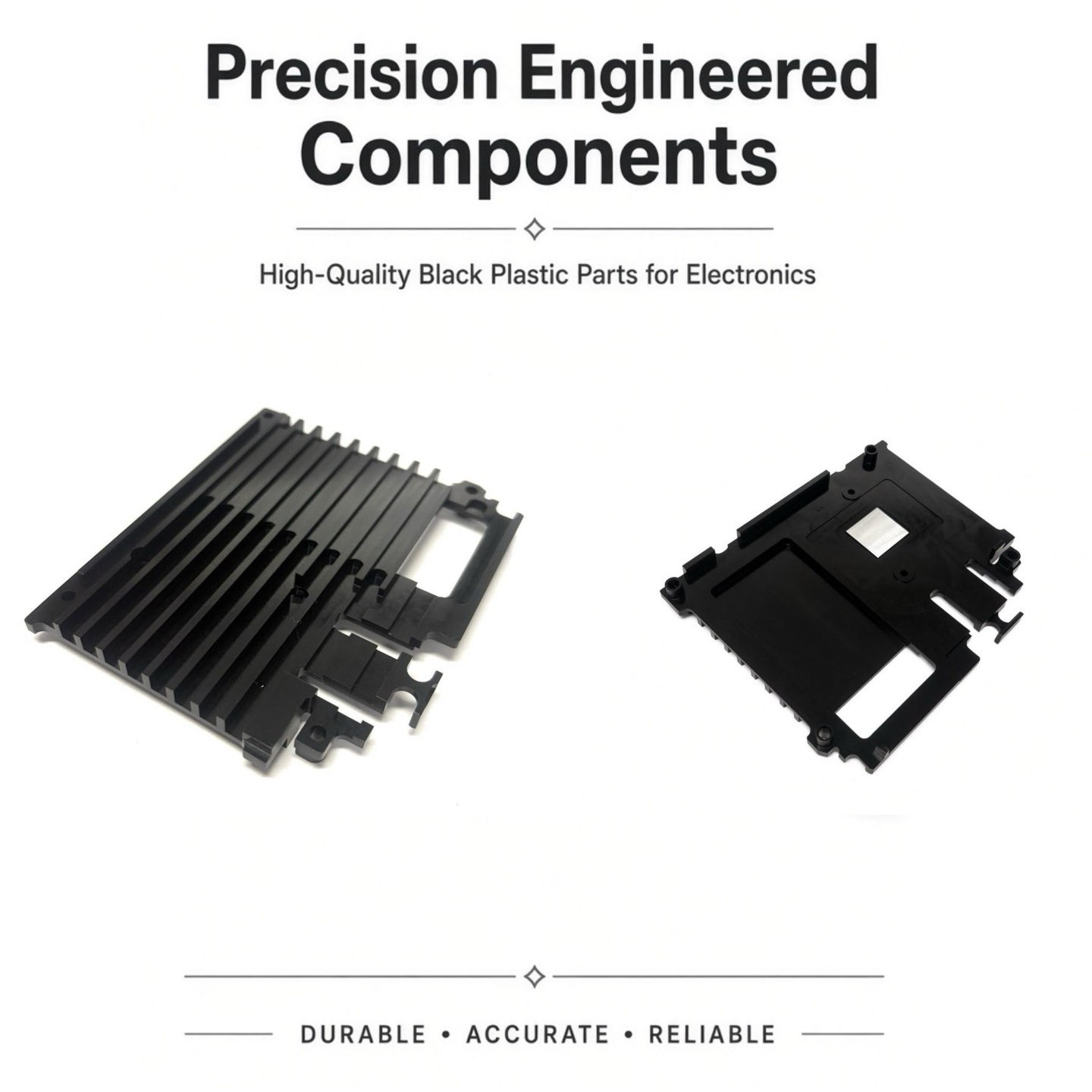

High-precision custom black plastic heatsink frame featuring parallel cooling fins and an integrated square metal thermal pad. Designed for efficient heat dissipation in electronic devices. Fully customizable via OEM/ODM injection molding. Ideal for laptops, set-top boxes, routers, industrial controls and consumer electronics.

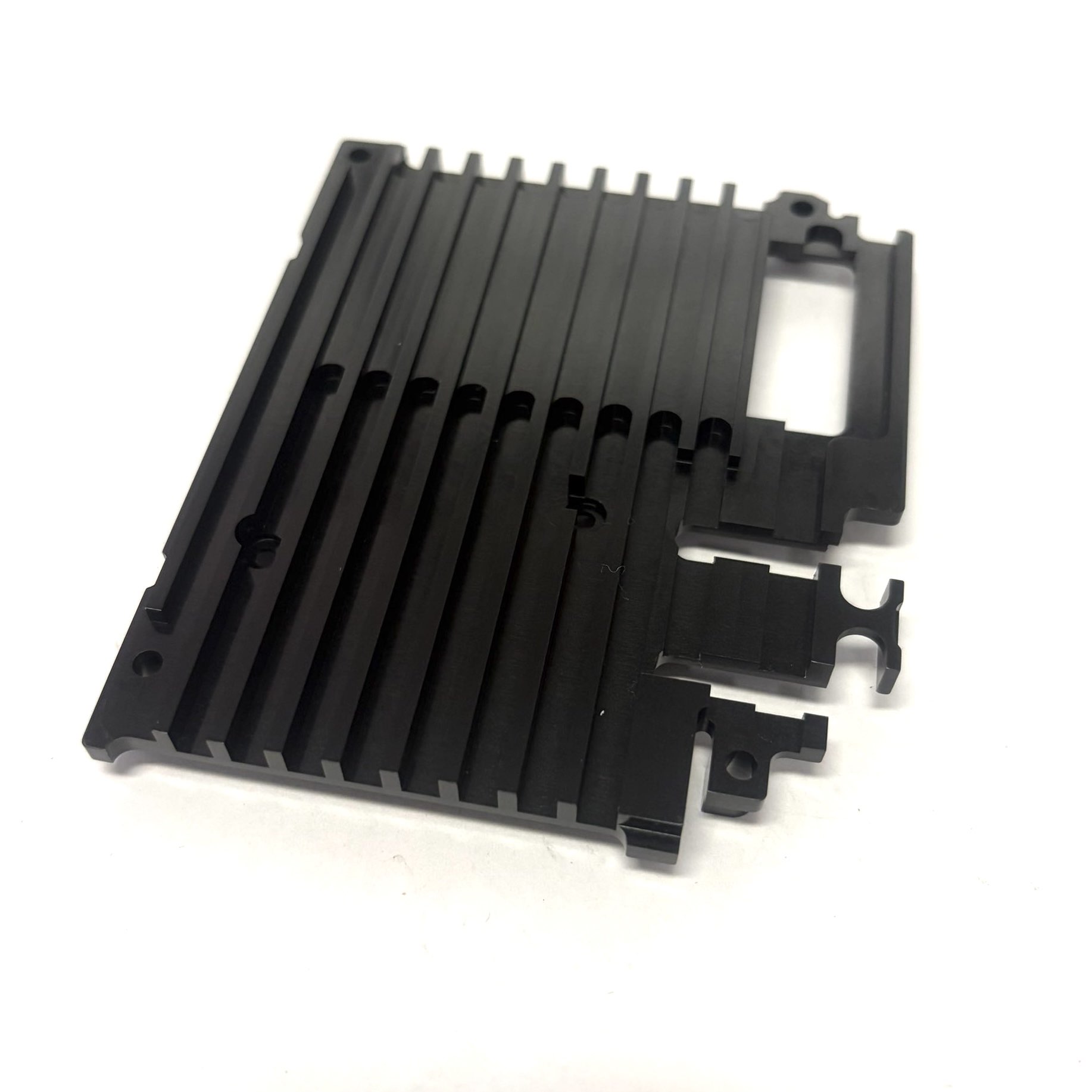

This precision injection-molded plastic heatsink frame delivers reliable thermal management for modern electronics. We manufacture the main body from high-performance engineering plastics (ABS, PC, PA or other materials available) using advanced injection molding technology. In addition, the outer surface features multiple parallel cooling fins that significantly increase surface area. As a result, these fins enhance airflow and thereby improve natural convection.

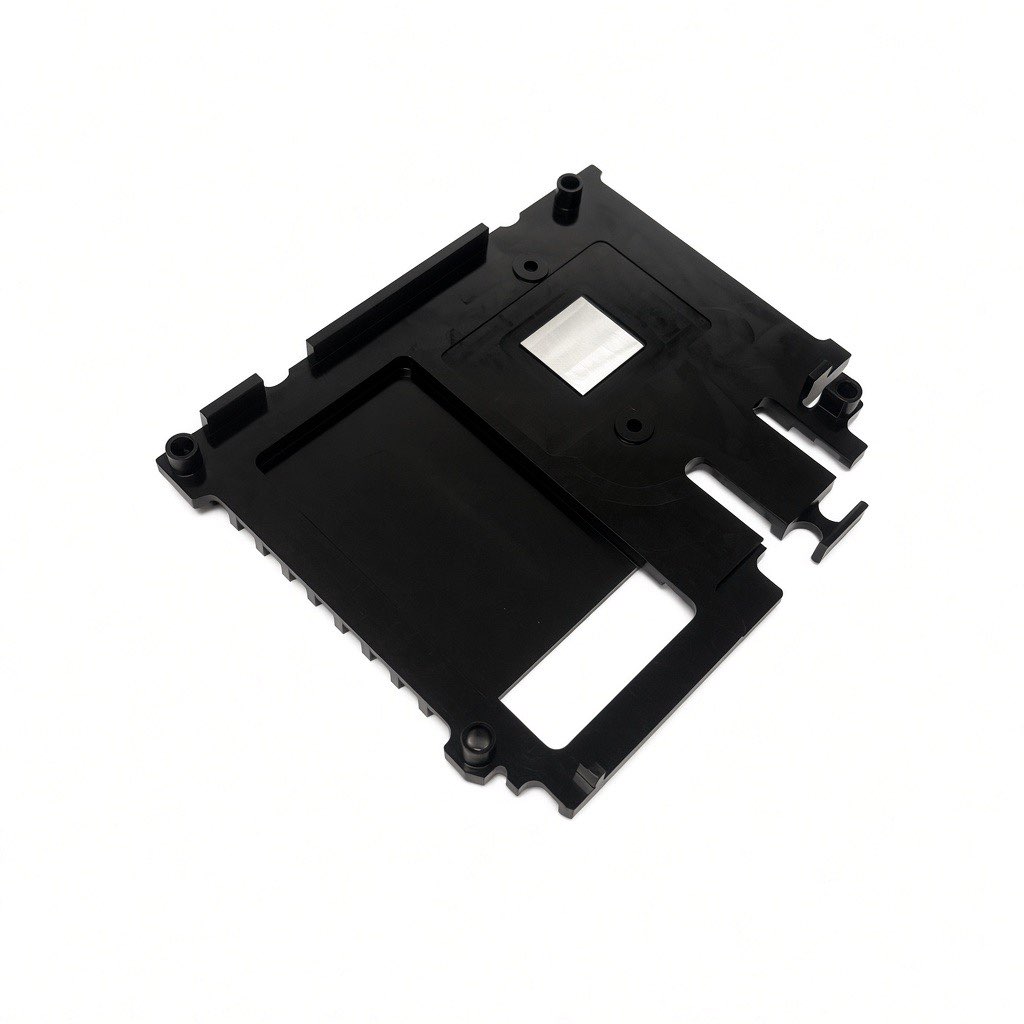

A square metal thermal pad (aluminum or copper options) is embedded on the contact side, enabling direct and efficient heat transfer from the heat-generating component (CPU, chipset, power IC, etc.) to the plastic structure. Positioning posts, mounting holes and custom cut-outs are accurately designed to match your PCB and chassis layout for easy and secure installation.
Combining structural support and passive cooling in one lightweight, cost-effective component, this frame is an excellent alternative to traditional all-metal heatsinks. We provide complete OEM/ODM services from mold design and prototyping to mass production, ensuring consistent quality and reliable lead times.
Key FrameFeatures & Benefits
- Precision injection molding with tight dimensional tolerances
- Embedded metal thermal pad for superior heat conduction
- Parallel fin design maximizes airflow and heat dissipation
- Fully customizable based on your drawings or samples
- Multiple engineering plastic materials available
- Lightweight, electrically insulating and cost-effective
- Suitable for high-volume production with stable quality
- Fast prototyping and flexible MOQ options
Applications
- Laptop and notebook computer chipset / GPU auxiliary cooling modules
- Set-top boxes, streaming devices and media players
- Routers, gateways and network communication equipment
- Industrial control boards, PLCs and automation systems
- Power supply modules and voltage regulator circuits
- Consumer electronics and smart home devices
- Any compact electronic product requiring efficient passive thermal management
