U-Type Step Block | Custom Step Clamping Blocks

High-Precision Custom U-Type Step Block | Stainless Steel Adjustable Step Clamps

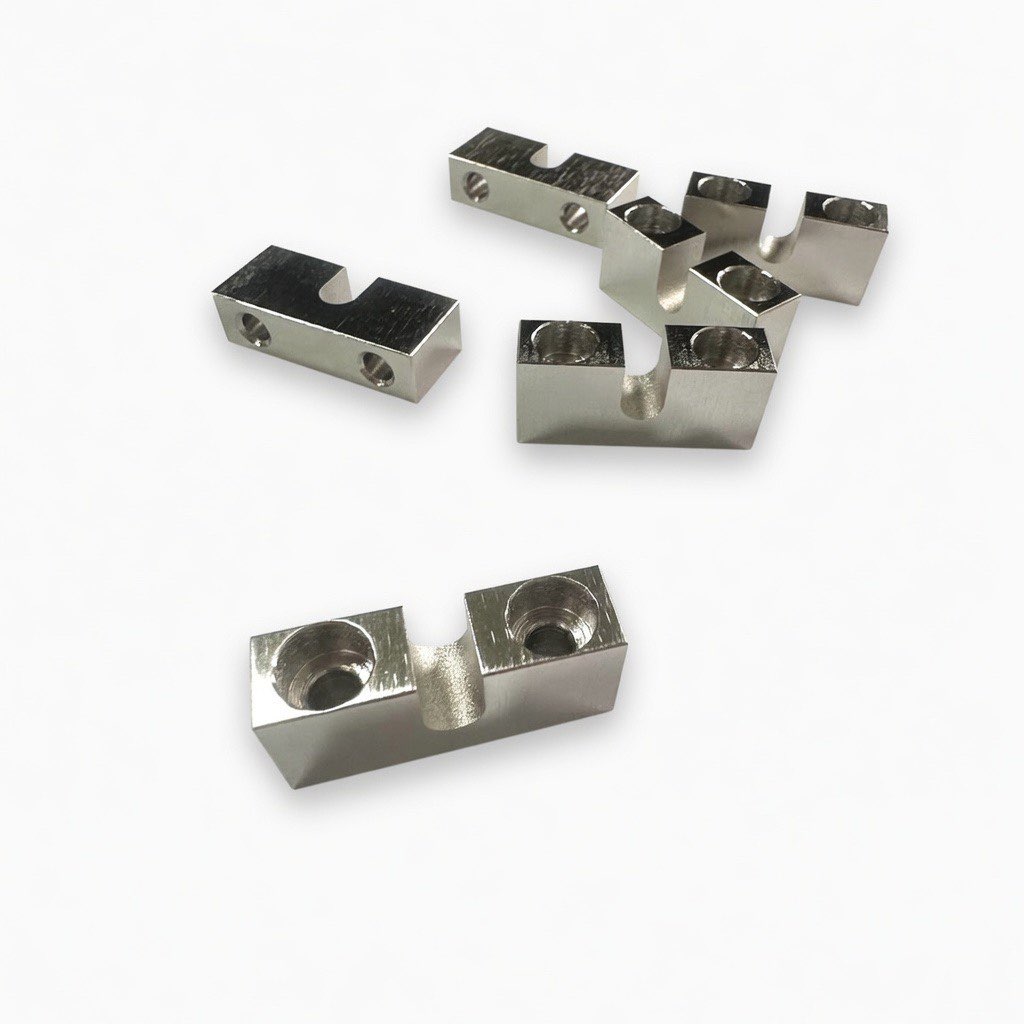

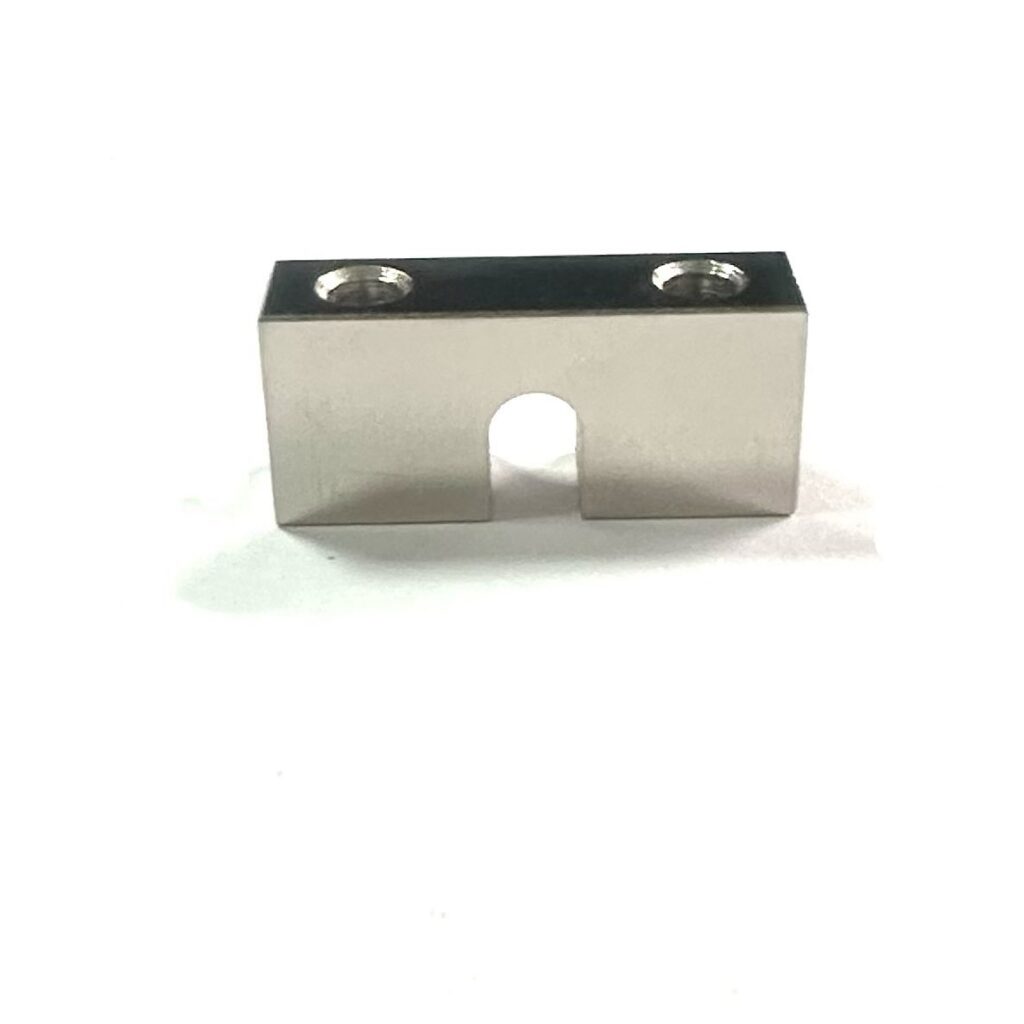

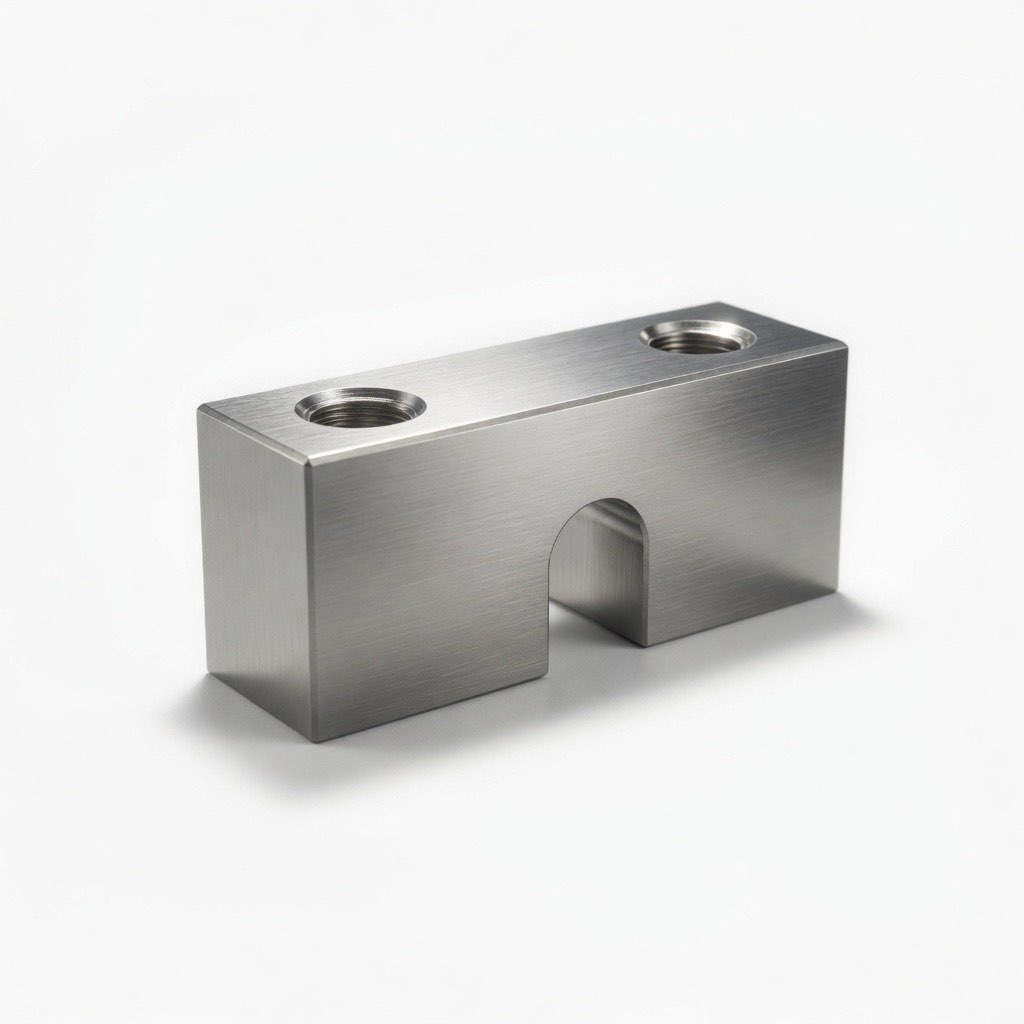

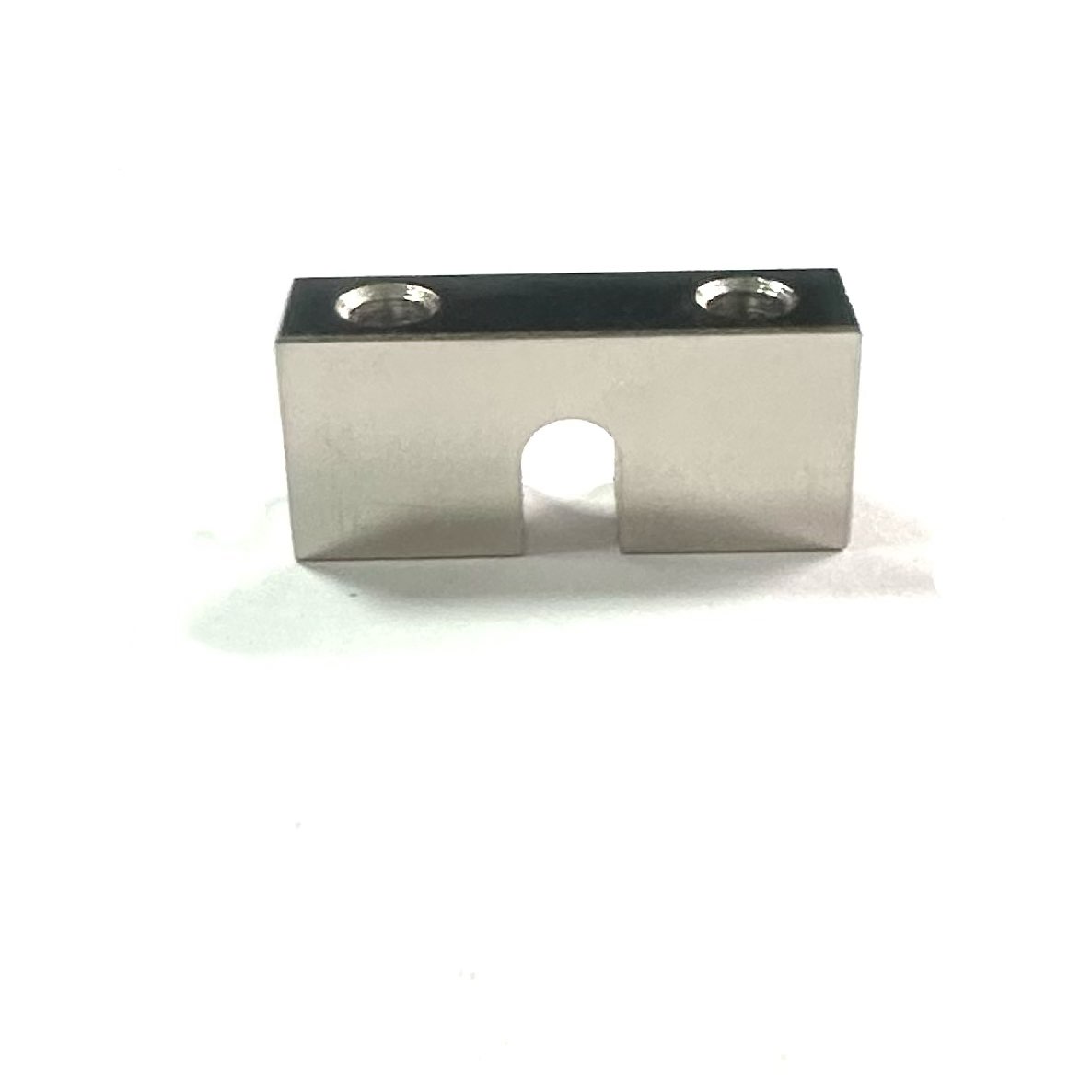

The U-Type Step Block is a high-precision fixturing component engineered for accurate workpiece positioning and height adjustment in CNC machining and industrial applications. Made from premium 316L stainless steel, these custom step blocks deliver exceptional corrosion resistance, strength, and long-term accuracy.

We offer full customization services — including custom sizes, special tolerances, engraving, and special configurations to perfectly match your specific machining requirements.

View more Videos

Key Features

• Premium 316L Stainless Steel: Superior corrosion resistance and durability.
• Precision Machined: Tight tolerances with precision ground surfaces.
• U-Type Step Design: Excellent for flexible stacking and multi-level support.
• Full Customization Available: Custom sizes, hole patterns, and special designs upon request.
• Versatile Mounting: Pre-drilled holes for easy and secure fixturing.

Specifications

Why Choose Our Custom U-Type Step Blocks?

1. Tailor-Made Precision: We manufacture custom step blocks to your exact specifications.
2. Exceptional Accuracy: Engineered for ultimate precision and repeatability.
3. Outstanding Durability: 316L stainless steel ensures long service life.
4. Fast Custom Service: From design to delivery, we support your unique requirements.

Applications

• CNC Milling and Turning Setups
• Precision Workholding Fixtures
• Machine Shop Tooling
• Automation Equipment

What’s Included

Each U-Type Step Block is precision manufactured. Mounting hardware is not included. Custom orders are welcome.

Installation Guide

The U-Type Step Block is designed for quick and precise workpiece support and height adjustment in CNC machining and fixturing setups. Follow these steps for optimal use:

Step-by-Step Installation

1. Prepare the Work Area Clean the machine table and the U-Type Step Blocks to remove any debris, chips, or oil for maximum accuracy.
2. Determine Required Height Stack one or multiple U-Type Step Blocks to achieve the desired support height. The U-shaped design ensures stable interlocking when stacked.
3. Position the Step Blocks Place the blocks under the workpiece or fixture plate in pairs or sets for balanced support. Align them properly according to your workpiece geometry.
4. Secure the Blocks (Optional) Use T-slot bolts, clamps, or socket head cap screws through the pre-drilled holes to fix the step blocks firmly to the machine table.
5. Position the Workpiece Place your workpiece or fixture plate on top of the step blocks. Ensure full contact with the precision-ground surfaces.
6. Final Alignment & Clamping Check for level and alignment using a dial indicator or precision level. Secure the workpiece with appropriate clamps or vises.
7. Verify Stability Before machining, confirm there is no movement or rocking. Make final micro-adjustments if necessary.

FAQ

Do you offer custom sizes?

Yes! We provide full customization including different dimensions, hole patterns, and special designs. What is the material?

High-quality 316L Stainless Steel for maximum corrosion resistance.

Need Custom U-Type Step Blocks?

Contact us today for custom sizes, drawings, or bulk orders. We can manufacture exactly what you need.

VIEW MORE PRODUCTS
