Compact Threaded Floating Joints
PRODUCT PARAMETERS
Description

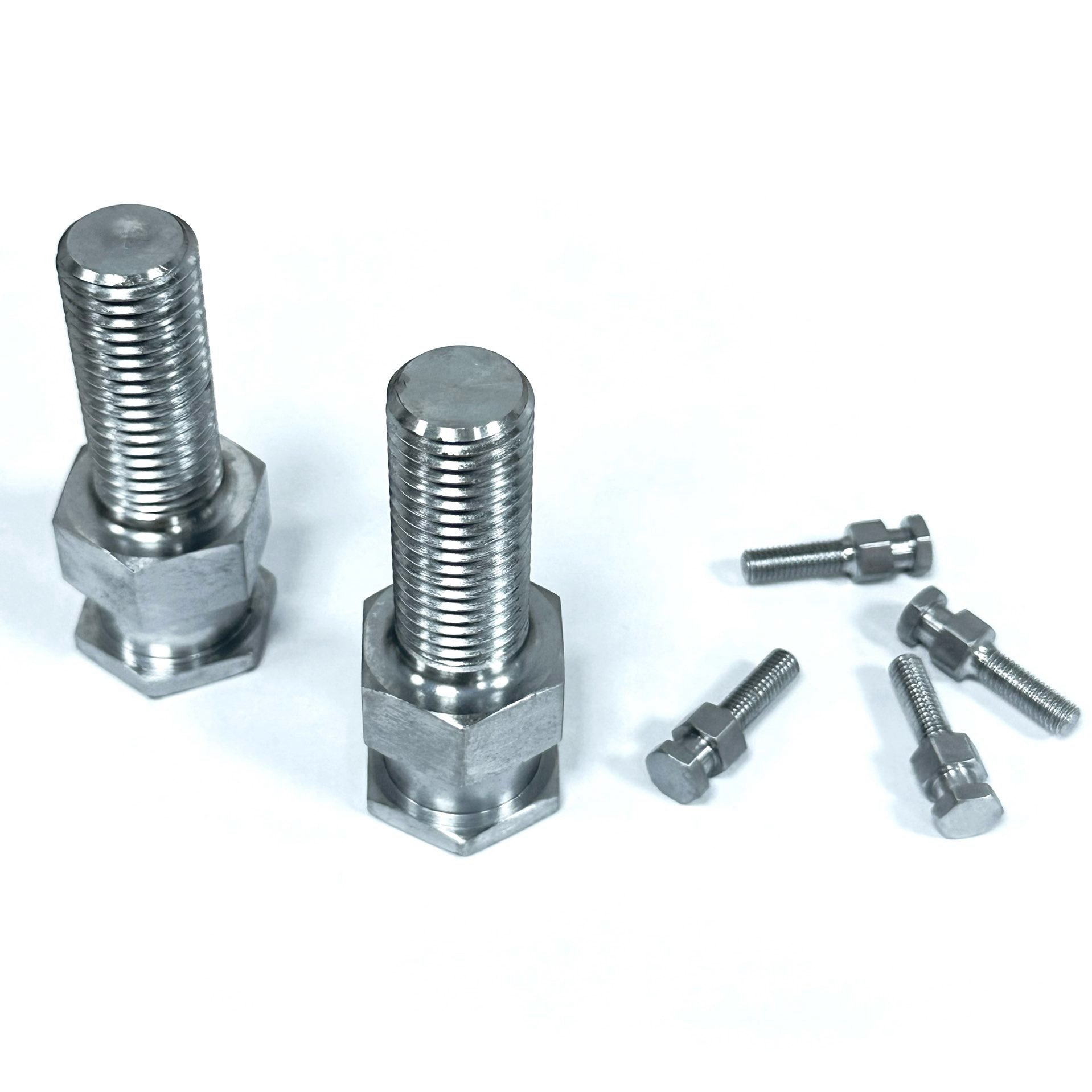

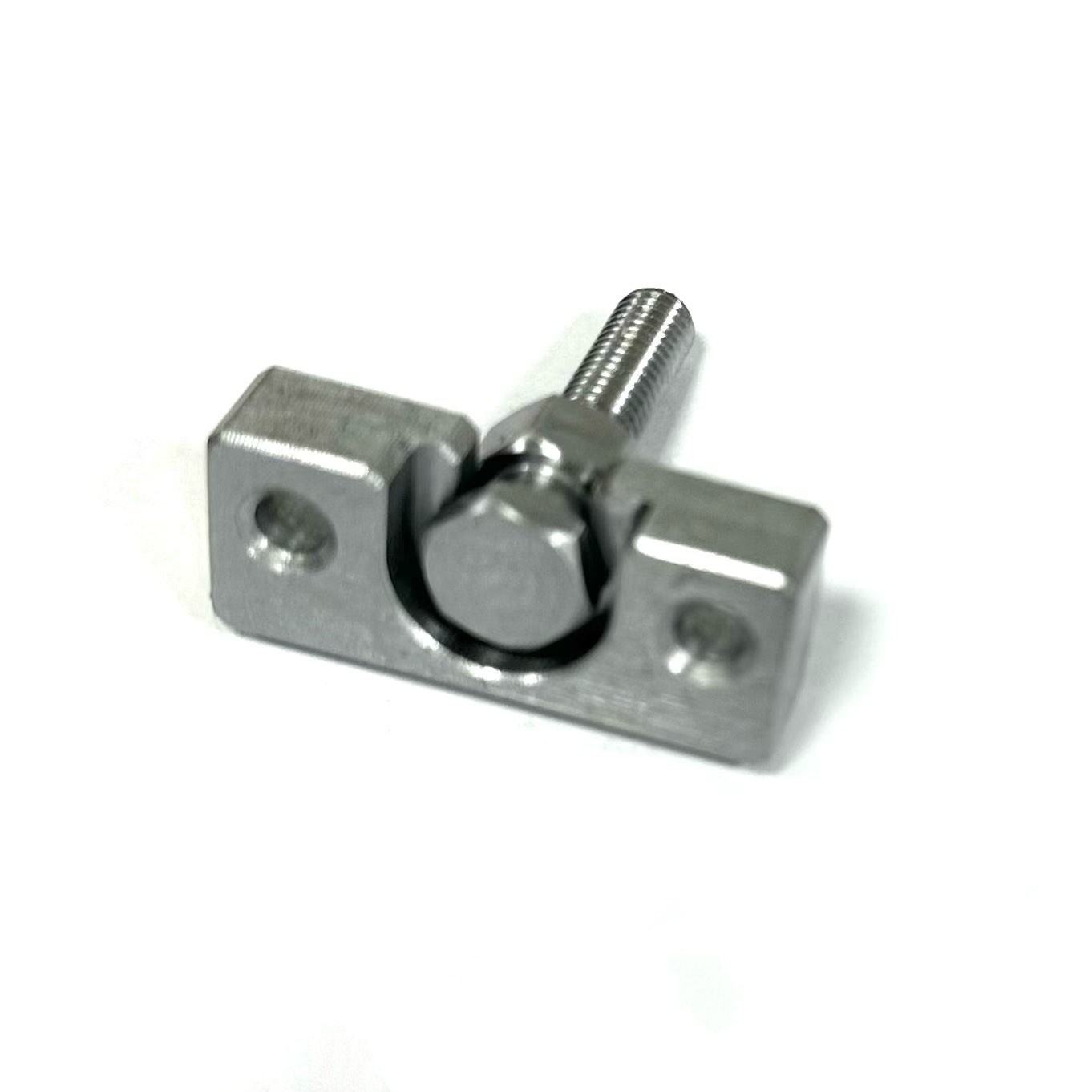

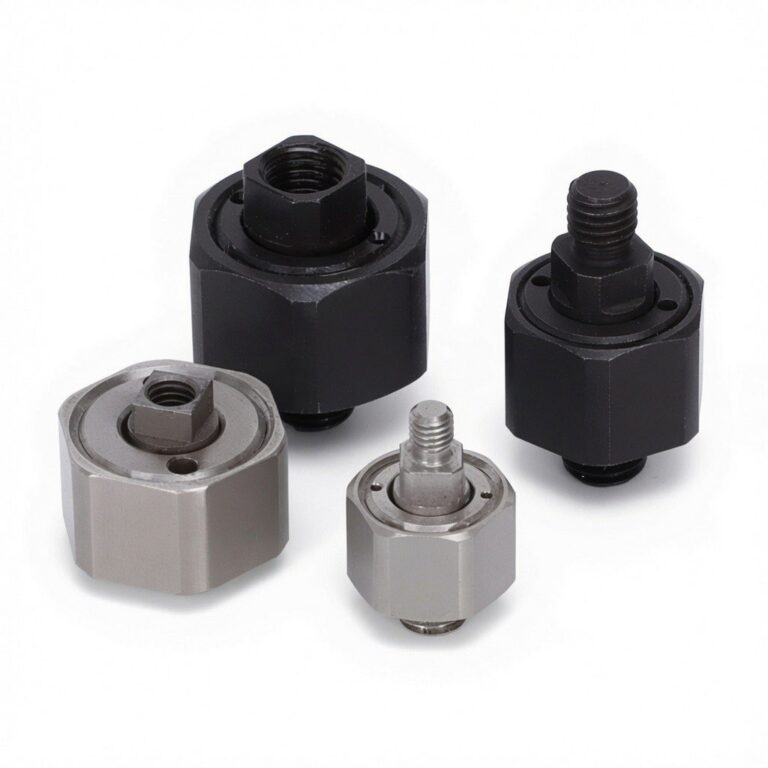

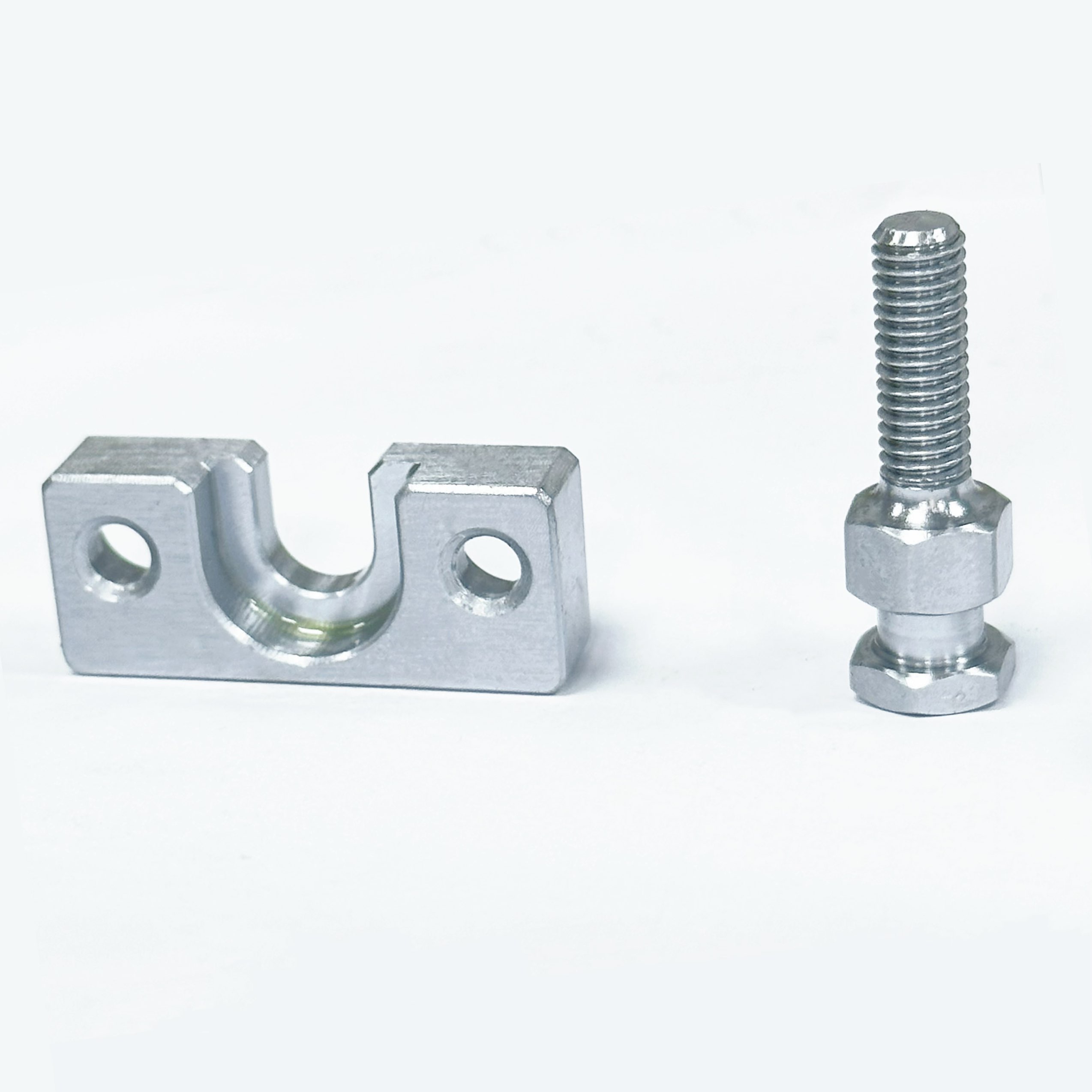

Compact Threaded Floating Joints | High-Precision Alignment Couplers for Pneumatic Cylinders
Compact Threaded Floating Joints are precision-engineered components designed to connect pneumatic cylinders to driven mechanisms. These high-performance alignment couplers effectively absorb axial misalignment, angular deviations, and parallel offsets, preventing excessive side loads on the cylinder rod. By compensating for installation errors and operational deviations, they significantly extend the service life of cylinders and actuators, making them essential in modern industrial automation.
Key Features & Benefits
- Ultra-Compact Design: Engineered for space-constrained applications. Ideal for compact cylinders (bore sizes 16–50mm) where traditional floating joints are too bulky. Smaller footprint and lighter weight without compromising strength.
- Excellent Misalignment Compensation: Allows up to ±2° to ±5° of angular movement and 0.5–0.75mm of eccentricity. Automatically corrects misalignment to protect the cylinder rod from bending, wear, and premature failure.
- Threaded Connection: External male thread design (M3, M4, M5, M6, M8, M10) for easy and secure installation on standard cylinder rods. High-precision threads ensure reliable, vibration-resistant connections.
- High Durability: Manufactured from premium stainless steel or high-strength alloy steel with precision CNC machining. Corrosion-resistant surface treatment makes them suitable for demanding industrial environments.
- Broad Compatibility: Perfectly matches major brands including SMC, AirTAC, CKD, MISUMI, and most Chinese-made compact cylinders.
Technical Specifications
- Type: Compact Threaded Floating Joint (External Thread)
- Material: Stainless Steel / High-Strength Alloy Steel
- Thread Sizes: M3×0.5, M4×0.7, M5×0.8, M6×1.0, M8×1.25, M10×1.25 (custom available)
- Allowable Angular Deflection: ±2° ~ ±5°
- Allowable Eccentricity: 0.5mm ~ 0.75mm
- Operating Temperature: -10°C to +60°C (higher ranges available)
- Surface Finish: Nickel-plated, Passivated, or Polished
Wide Range of Applications
Compact Threaded Floating Joints are widely used in:
- Pneumatic automation systems
- Packaging machinery and assembly lines
- Robotic arms and pick-and-place units
- Material handling equipment
- Machine tools and inspection devices
- Food processing and medical equipment (stainless steel versions)
- Automotive parts assembly lines
By installing these floating joints, customers typically reduce installation and debugging time by over 50% while lowering maintenance costs and unplanned downtime.
Why Choose Our Compact Floating Joints?
- Superior Quality: Aerospace-grade materials, strict quality control, and individual testing for pull strength and misalignment performance.
- Competitive Pricing: High performance at a better value compared to original SMC JA/JB series or equivalent brands.
- Fast Delivery: Popular sizes (M5, M6, M8) in stock with quick shipping for small and bulk orders.
- Customization Support: Non-standard lengths, special threads, and custom surface treatments available.
- Full Technical Support: Professional selection guidance, installation instructions, and 12-month warranty.
Selection Guide:
- For small cylinders (φ16–25mm): Recommend M4–M6
- For medium cylinders (φ32–50mm): Recommend M8–M10
Installation Tip: Always screw the floating joint onto the cylinder rod first, then connect to the driven part. Avoid forcing the connection under misalignment.
