Floating Joints – Cylinder Connector, Fixed Length, Tapped

Floating Joints | Quick Connect Cylinder Connectors | Fixed Length & Tapped

Enhance the performance and longevity of your pneumatic systems with our premium Floating Joints – Cylinder Connector, Fixed Length, Tapped. These precision-engineered cylinder couplers are specifically designed to compensate for misalignment between the cylinder rod and the driven load, eliminating harmful side loads and ensuring smooth, reliable operation.

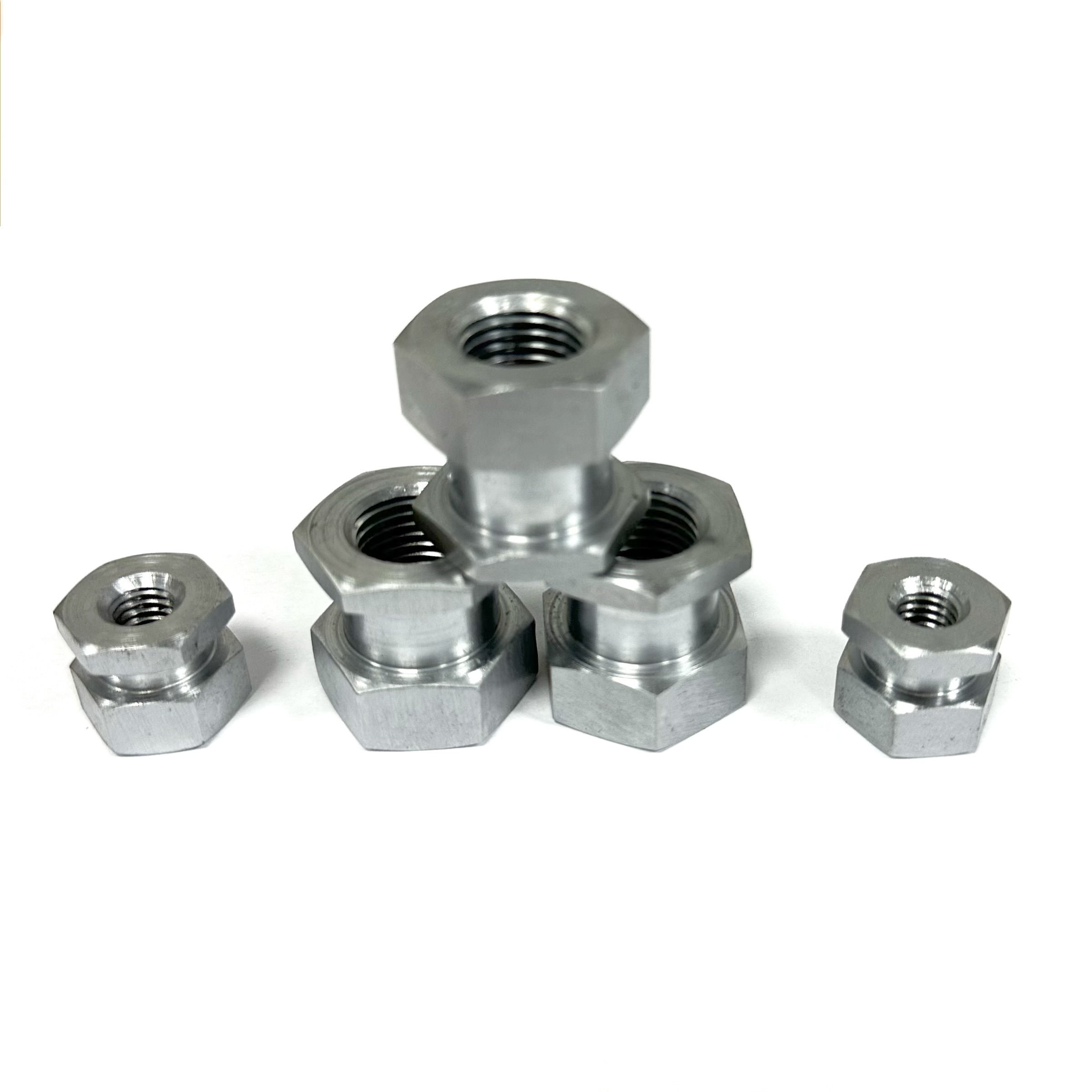

As shown in the product images, our floating joints feature a robust hexagonal body design with high-precision internal threads (tapped) on both ends, allowing direct and secure connection to pneumatic cylinder rods and workpieces. The compact, fixed-length construction provides excellent rigidity in the axial direction while allowing angular and lateral float to absorb installation and operational misalignments.

VIEW MORE VIDEOS

[ ! ]Salt-bath Nitriding may cause uneven color, which doesn’t affect mechanical function.

Floating Joints Key Features & Benefits

• Misalignment Compensation: Built-in floating mechanism absorbs up to several degrees of angular misalignment and lateral offset, protecting the cylinder rod, seals, and bearings from excessive wear.
• Tapped Connections (Female Thread): Both ends are internally threaded for easy, space-saving installation without additional adapters.
• Fixed Length Design: Maintains precise and repeatable stroke transmission, ideal for applications requiring consistent positioning.
• Hexagonal Body: Facilitates easy tightening with standard wrenches during assembly and maintenance.
• Premium Material & Finish: Manufactured from high-strength carbon steel or stainless steel with a durable silver metallic finish (as pictured) for excellent corrosion resistance and long service life.

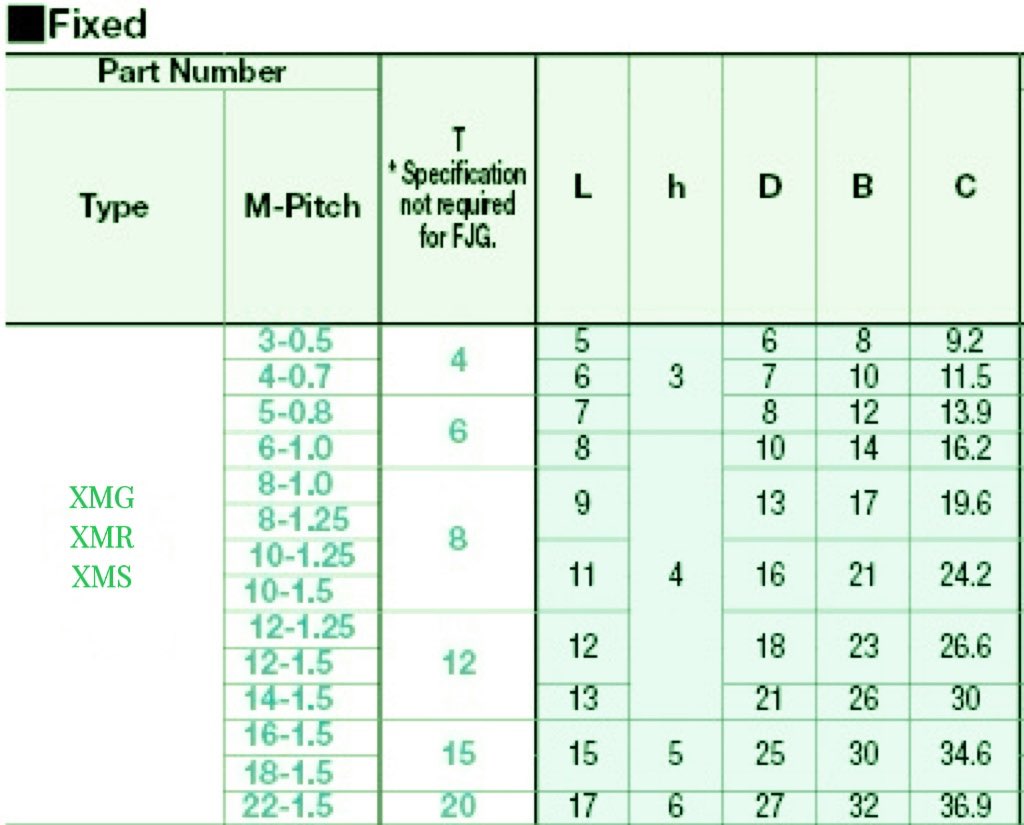

Technical Specifications

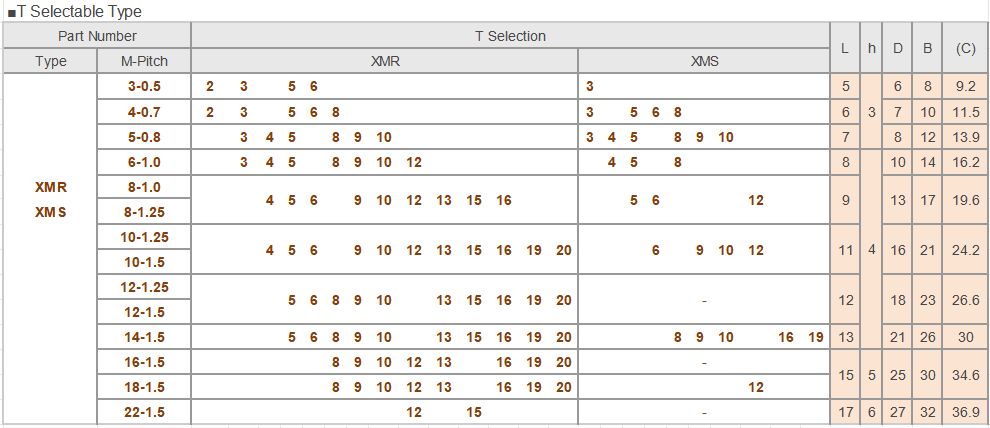

Our Fixed Length Tapped Floating Joints are available in a wide range of sizes to match most popular pneumatic cylinder bores:

• Thread Sizes: M3, M4, M5, M6, M8, M10, M12, M16, M20, M22, M26, M30, M36, M42 and more
• Body Design: Hexagonal for wrenching, compact floating structure
• Length: Fixed per model (varies by thread size and series)

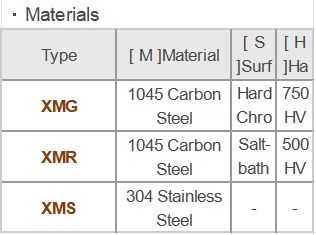

• Material: High-tensile steel with precision-machined pivot components
• Surface Treatment: Silver finish (electroless nickel plating or equivalent) for superior corrosion protection
• Operating Temperature: -20°C to +80°C (higher temperatures available on request)

Wide Range of Applications

Industrial Automation Perfect for pick-and-place units, robotic arms, and indexing mechanisms where perfect alignment is challenging.

Packaging & Food Processing Machinery Absorbs vibration and minor shifts in high-speed cartoners, fillers, and sealing equipment.

Material Handling & Conveyors Used in lifting, clamping, pushing, and transfer systems to prevent rod damage.

Automotive Assembly Lines Reliable performance in welding jigs, pressing stations, and testing fixtures.

Medical Device & Lab Equipment Clean, precise movement in sensitive automation setups.

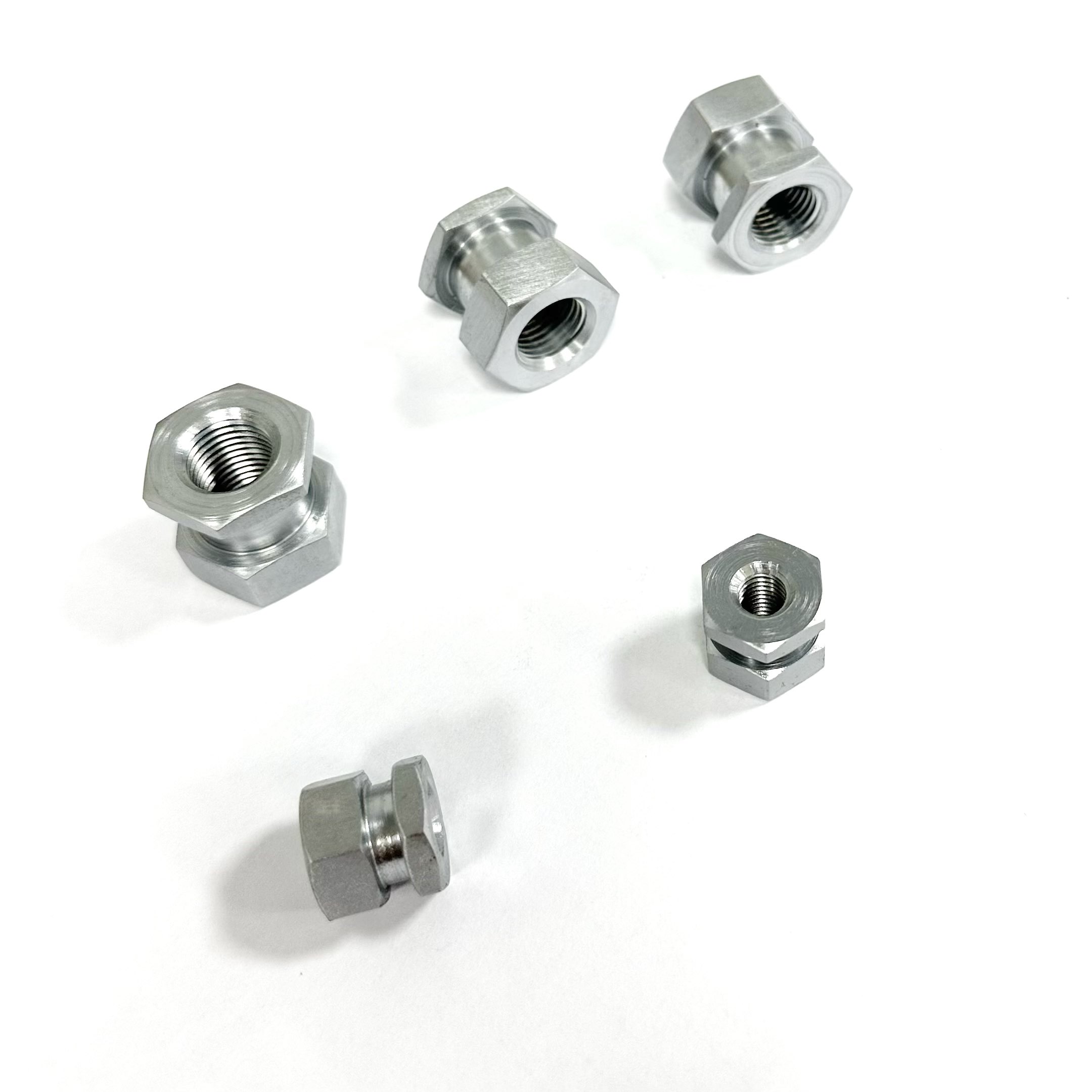

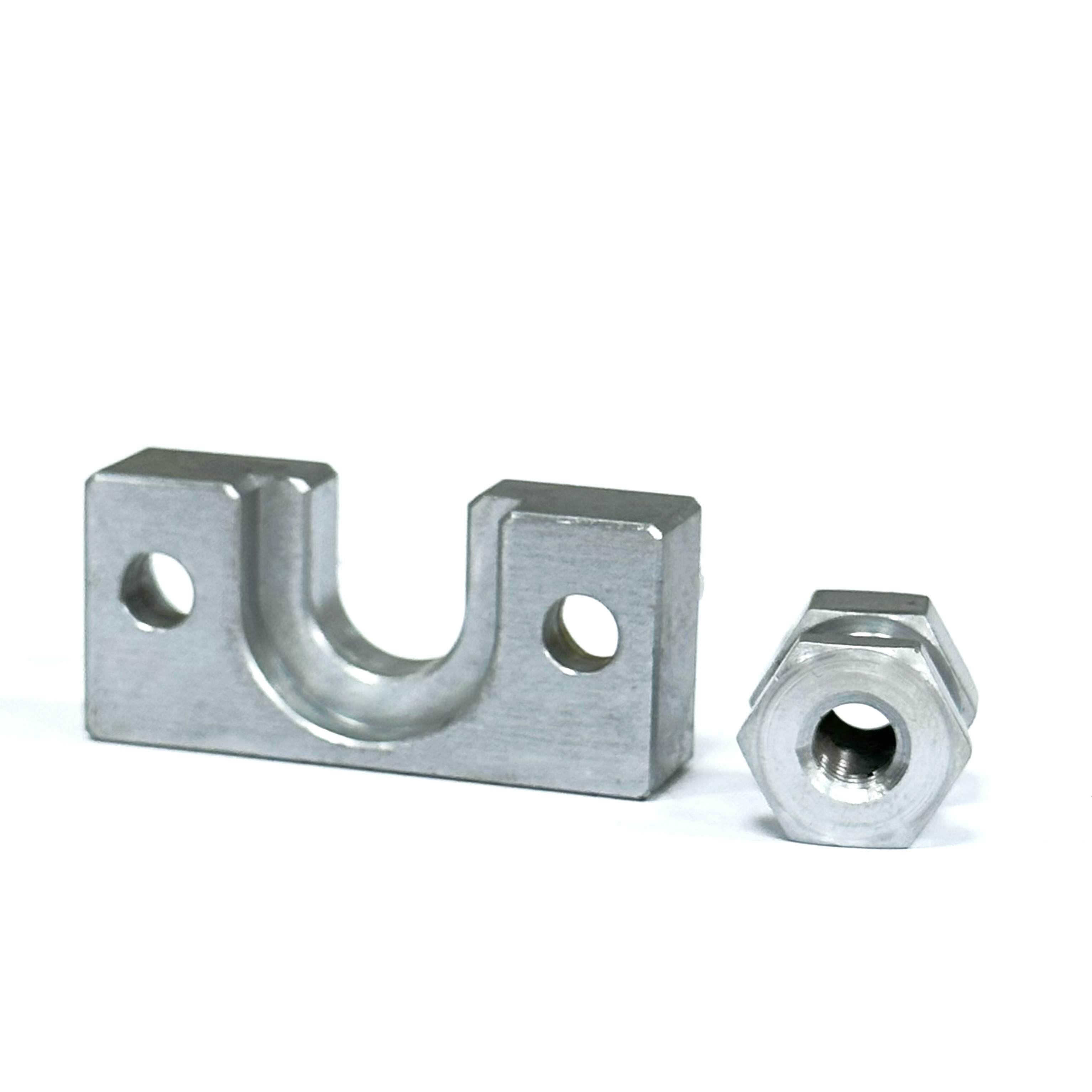

The real-product photos clearly show the high-quality machining, clean threads, and professional finish that our customers rely on for mission-critical applications.

Why Choose Our Floating Joints?

Unlike rigid connectors that transfer all misalignment forces directly to the cylinder, our floating joints act as a mechanical “buffer,” dramatically reducing side loading. This results in:

• Up to 2–3x longer cylinder life
• Reduced maintenance costs
• Faster and easier machine assembly
• Smoother, quieter operation
• Lower total cost of ownership

Easy Installation Guide

1. Select the correct thread size matching your cylinder rod.
2. Thread one end onto the cylinder piston rod and tighten using the hexagonal flats.
3. Attach the opposite tapped end to your load or linkage.
4. The internal floating mechanism will automatically compensate for any misalignment.

Pro Tip: Always use thread locker on high-vibration applications and avoid over-tightening.

Order with Confidence

All our floating joints undergo strict quality control including dimensional inspection, thread accuracy testing, and load testing. We maintain large inventory for immediate shipping and offer competitive wholesale pricing for OEMs, distributors, and system integrators.
