High-Precision 30° T-Type Lead Screw Nut Brackets for Linear Motion Systems
Upgrade your CNC, 3D printer, laser engraver, or automated machinery with our premium 30° T-Type Lead Screw Nut Brackets. These robust aluminum mounting brackets are specifically engineered to securely hold lead screw nuts at a precise 30° angle. They deliver optimal force distribution and excellent space efficiency in compact linear motion setups.

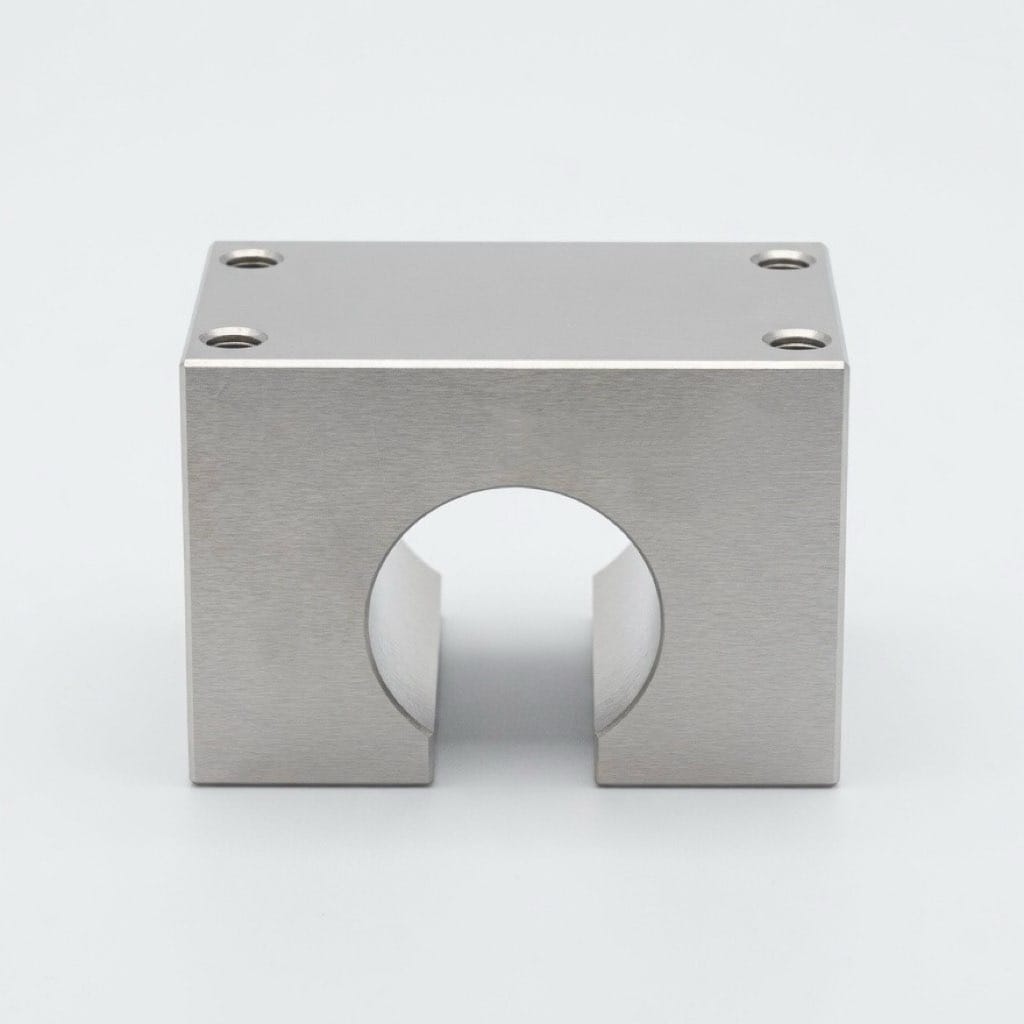

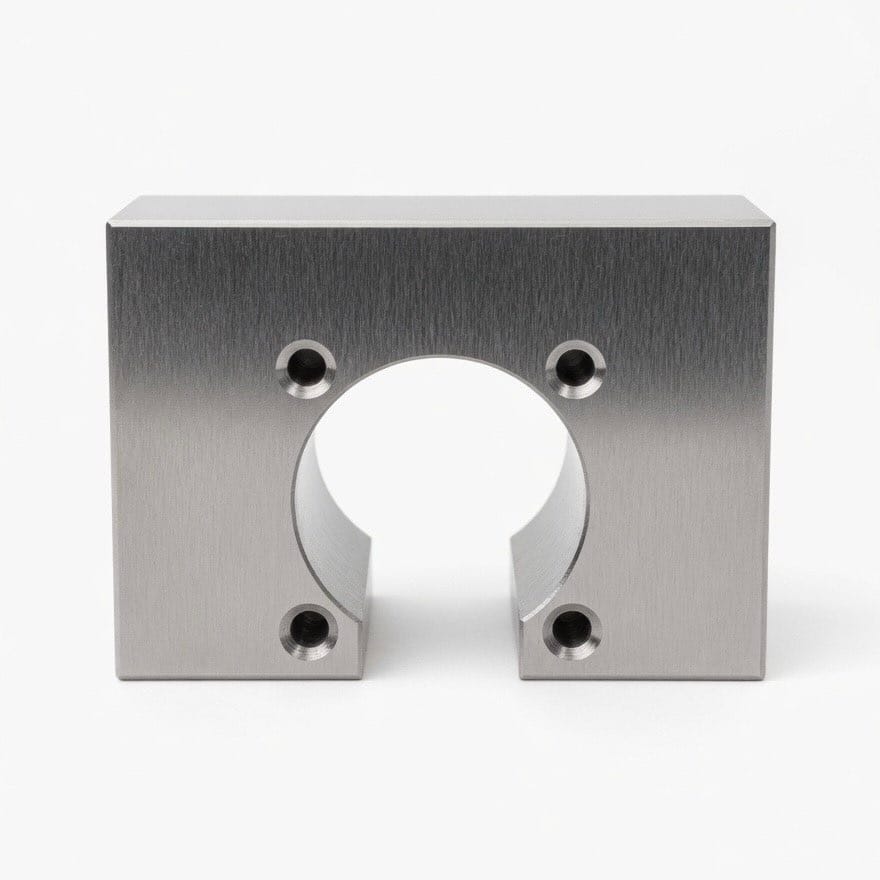

As shown in the product image, the bracket features a sturdy anodized aluminum block construction with a large central bore for lead screw nuts and multiple precision-tapped mounting holes, making it ideal for T-slot aluminum extrusion frames and custom automation projects.
Why Choose Our 30° T-Type Lead Screw Nut Brackets?
In linear motion systems, proper alignment and rigid mounting of the lead screw nut are critical for accuracy, speed, and longevity. Our 30° angled T-Type brackets solve common design challenges by allowing the lead screw to be positioned at an optimal angle while maintaining exceptional stiffness and vibration resistance.
Lead Screw Nut Brackets Key Features & Benefits:
- 30° Angled Design: Provides ideal force vectoring and clearance for motors, belts, and other components in tight spaces.
- Precision Central Bore: Accurately sized to fit standard lead screw nuts (Tr8, Tr10, Tr12, Tr16, etc.).
- Multiple Tapped Mounting Holes: 4–8 threaded holes (M4/M5/M6) on multiple faces for flexible installation on T-slot profiles or plates.
- Anodized Silver Finish: Corrosion-resistant, professional appearance with excellent wear protection.
- Excellent Rigidity: Minimizes deflection under load, ensuring high-precision linear movement.
Available Models:
- 30° T-Type for Tr8 / Tr10
- 30° T-Type for Tr12 / Tr16
- 30° T-Type for larger Tr20+ nuts
- Custom bore sizes and hole patterns available
Wide Range of Applications
- CNC Routers & Engraving Machines: Perfect for Z-axis or angled gantry setups.
- 3D Printers & Filament Extruders: Ideal for lead screw driven beds and axes.
- Laser Cutters & Plasma Tables: Enhances stability in linear drive systems.
- Robotics & Automation: Used in pick-and-place, camera sliders, and actuator assemblies.
- DIY & Maker Projects: Popular in open-source linear motion builds and custom machinery.
- Medical & Lab Equipment: Clean, precise motion control applications.
These brackets are widely trusted by engineers and makers for their reliability and professional finish.
Installation Advantages
- Slide the lead screw nut into the central bore.
- Secure the nut with set screws or bolts (depending on nut design).
- Mount the bracket to your T-slot aluminum extrusion using T-nuts and bolts.
- Align the lead screw and tighten all fasteners.
The multi-face threaded holes offer exceptional mounting flexibility, significantly reducing assembly time compared to traditional flat brackets.
Why Our 30° T-Type Brackets Stand Out
| Feature | Standard Flat Bracket | Our 30° T-Type Bracket |
|---|---|---|
| Mounting Angle | 0° / 90° | Optimized 30° |
| Design Flexibility | Limited | Multi-face tapped holes |
| Rigidity & Vibration | Average | Superior |
| Space Efficiency | Standard | Excellent |
| Build Quality | Basic | Precision CNC + Anodized |
Quality Assurance
Every bracket undergoes strict CNC quality control, dimensional inspection, and surface finish verification. We maintain high inventory levels for fast shipping and offer bulk/wholesale pricing for manufacturers, 3D printer builders, and automation integrators.
