Flexible Shaft Coupling – Jaw, Clamping Type

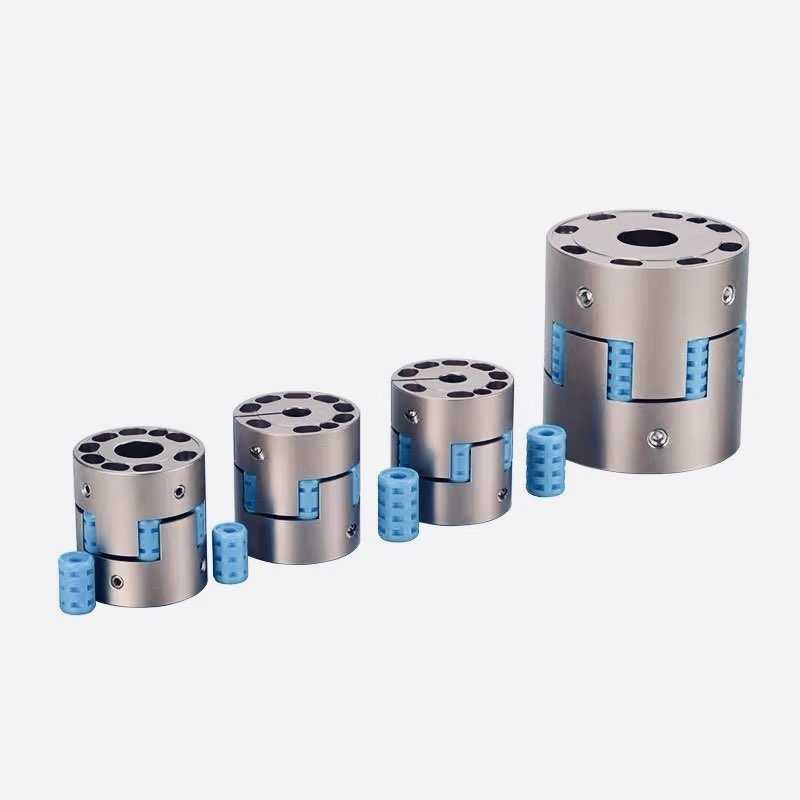

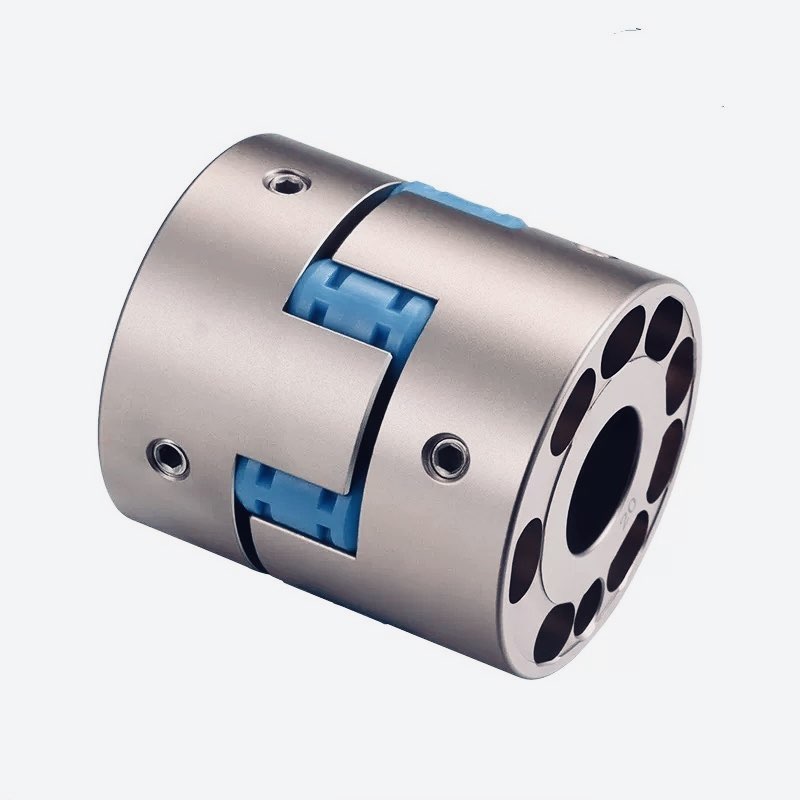

Our Flexible Shaft Coupling – Jaw Clamping Type is a high-performance flexible coupling designed to transmit torque while compensating for shaft misalignment. Featuring a robust three-piece design with a durable polyurethane spider (blue elastomer insert), this coupling delivers excellent vibration damping, shock absorption, and reliable power transmission in demanding industrial applications.

The clamping-type hubs provide a strong, backlash-free connection to the shaft without requiring keyways, making installation fast and secure. Precision machined from high-quality aluminum alloy, this coupling ensures outstanding concentricity and balance for smooth, quiet operation at high speeds.

Flexible Shaft Coupling Key Features & Benefits

• Jaw Spider Design The flexible polyurethane spider (insert) effectively absorbs shock, vibration, and minor misalignments (parallel, angular, and axial). Easy to replace when worn — no need to disassemble the entire coupling.
• Clamping Type Hubs Powerful clamping rings with tightening screws ensure a secure, high-torque grip on the shaft. Provides zero-backlash transmission and excellent shaft holding power without damaging the shaft surface.
• High-Quality Materials Precision CNC-machined aluminum alloy hubs for lightweight strength and superior heat dissipation. The blue spider is made of high-grade polyurethane, offering excellent resilience, oil resistance, and temperature stability.
• Zero Backlash & High Precision Designed for accurate motion control with minimal backlash, making it ideal for servo motors, stepper motors, and precision automation systems.
• Easy Installation & Maintenance Split clamping design allows quick assembly and disassembly. No special tools required.
• Wide Temperature Range Reliable performance from -30°C to +80°C (standard spider). Custom spiders available for higher temperatures.

Technical Specifications

• Material: Aluminum alloy (hubs) + Polyurethane (spider)
• Spider Color: Blue (standard)
• Bore Type: Clamping / Set Screw Clamping
• Torque Range: Available in multiple sizes (please specify required torque)
• Misalignment Capability: Angular ±1°, Parallel ±0.2mm, Axial ±0.5mm (varies by size)
• Speed: Up to 10,000 RPM (depending on model)
• Finish: Natural anodized aluminum
• Sizes Available: From 14mm to 65mm outer diameter (multiple bore combinations)

Wide Applications

This Flexible Jaw Clamping Coupling is widely used in:

• CNC machines and machining centers
• Servo motor and stepper motor systems
• Automation equipment and robotics
• Packaging machinery
• Printing and textile machines
• Pump and compressor drives
• Medical equipment and precision instruments
• General power transmission systems

Why Choose Our Flexible Jaw Coupling?

1. Superior Vibration Damping — Significantly reduces noise and extends the life of connected components.
2. High Torque Capacity — Strong clamping force ensures reliable torque transmission even under dynamic loads.
3. Excellent Misalignment Compensation — Protects expensive motors and equipment from misalignment stress.
4. Long Service Life — High-quality polyurethane spider and anodized aluminum construction resist wear and corrosion.
5. Competitive Price & Fast Delivery — Premium quality at factory-direct prices with quick global shipping.
6. Strict Quality Control — Every coupling is precision tested for balance, concentricity, and torque capacity before shipment.

The Flexible Shaft Coupling – Jaw Clamping Type is the ideal solution for engineers and manufacturers seeking reliable, high-precision power transmission with excellent misalignment tolerance and vibration control. Whether you need a single piece for prototyping or bulk orders for production lines, this coupling delivers outstanding performance and value.

Available Services:

• Custom bore sizes and keyway options
• Different spider hardness (80A, 92A, 98A, etc.)
• Technical support and size selection guidance

Upgrade your motion control system today with our high-performance Flexible Jaw Clamping Couplings. Contact us for bulk pricing, datasheets, or custom solutions.
