Auto-Latch Replacement for MISUMI ATLAM/ATLAS/ATLAN Series
PRODUCT PARAMETERS
Description

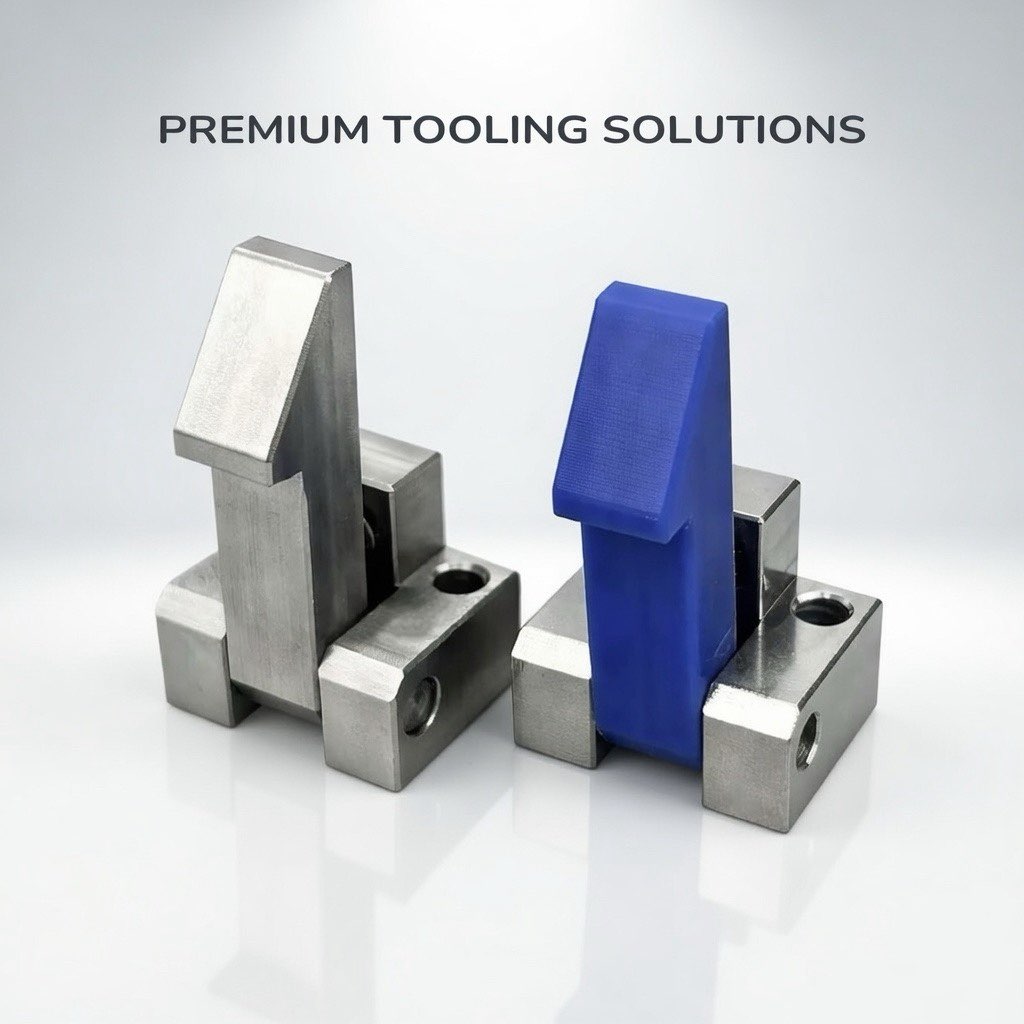

Our Auto-Latch are 100% dimensional & performance interchangeable replacement parts for MISUMI, high-performance automatic locating and clamping components specially designed for thin workpieces.
These alternative parts deliver fast, reliable, repeatable positioning for PCB boards, sheet metals, aluminum panels, plastic parts and other thin materials, perfectly suited for electronics manufacturing, precision assembly and inspection processes.
With a simple downward press, the auto-latch automatically locks and holds workpieces with one-way retention. It replaces manual screws, extra clamps and complicated auxiliary structures, greatly boosting production efficiency and lowering labor workload.
Auto-Latch Key Features & Benefits
- One-Touch Automatic LockingPress down the workpiece directly; spring claw locks instantly for stable positioning.
- High Repeatability & PrecisionStrict dimensional control ensures consistent positioning accuracy for mass production.
- Quick ReleaseSupports manual or mechanical auxiliary release for fast workpiece replacement.
- Compact StructureSmall footprint, perfect for compact fixture and jig layout.
- Multiple Material OptionsThree series available to match different working environments and application demands.
- Easy InstallationReserved standard mounting holes for direct assembly on fixtures, jigs and machine tables.
- Long Service LifePrecision manufacturing ensures stable performance under frequent repeated use.
- RoHS CompliantFully followed industrial environmental standards, same mounting and assembly as original MISUMI parts.
Series Comparison
| Material | Surface Treatment | Best For | Key Advantages |
|---|---|---|---|
| 1045 Carbon Steel | Electroless Nickel Plating | General industrial applications | High strength, cost-effective MISUMI alternative |
| SUS304 Stainless Steel | Natural Finish | Cleanroom, moisture & corrosive environments | Excellent rust and corrosion resistance |
| MC Nylon Engineering Plastic | Natural Finish | Fragile / scratch-proof surface requirements | Non-marring, no workpiece damage, lightweight |
Available Sizes: 25 / 35 / 45 mm (H dimension).
Typical Applications
- Electronics Manufacturing: PCB testing fixtures, SMT assembly jigs, circuit board positioning
- Precision Sheet Metal Processing: Locating thin aluminum / steel panels for assembly and inspection
- Automotive & Aerospace: Positioning of lightweight thin material components
- Medical Equipment: Cleanroom compatible alternative models for sensitive part assembly
- Consumer Electronics: High-volume production lines with fast workpiece changeover
- Automated Systems: Matching robotic loading and unloading stations
Adopting our MISUMI replacement auto-latch can improve workpiece loading efficiency by 30–50% compared with traditional positioning methods.
Technical Specifications
- Type: Vertical Auto-Latch (MISUMI compatible replacement)
- H Dimension: 35 mm
- Claw Material: 1045 Carbon Steel
- Hardness: 20~35 HRC
- Stroke: Optimized for thin plate positioning
- Mounting: Bottom base mounting holes
- Operating Temperature: Standard industrial working range
- Feature: Fully interchangeable with original MISUMI in size, installation and performance
Complete dimension drawings, load parameters and stroke data can be provided upon request.
Why Choose Our Auto-Latch?
- 100% InterchangeableSame dimension, installation hole position and assembly interface, direct substitute for MISUMI original parts.
- Cost-EffectiveGreat price advantage with equivalent quality, effectively reducing procurement costs.
- Stable QualityStrict precision machining and quality inspection, consistent performance with brand standard parts.
- Low MOQ & Fast Lead TimeSupport single piece sample order, in-stock models with fast delivery.
- Free Technical SupportProvide 2D drawings, 3D CAD files and application selection guidance.
