Miniature One-End Stepped Trapezoidal Lead Screws: Brass Nuts for 3D Printer, CNC & Automation Linear Motion

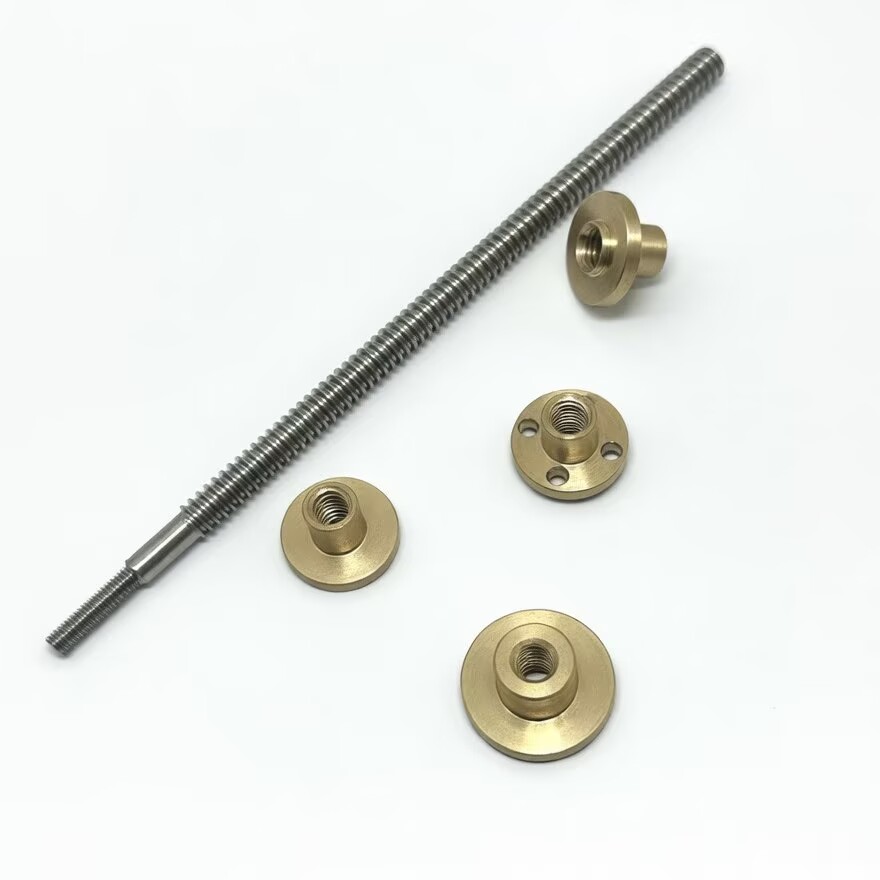

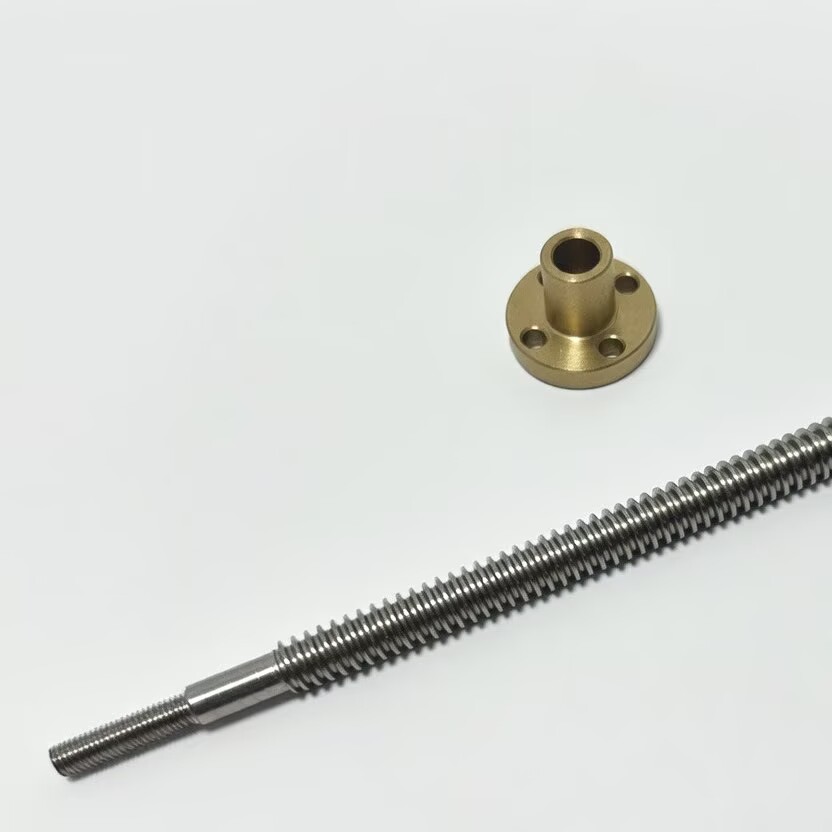

This precision one-end stepped Miniature Slide Screws set features a high-quality 304 stainless steel screw and multiple self-lubricating brass nuts (flange/stud types available). Designed for smooth, low-backlash linear motion, it is the ideal upgrade component for 3D printers, mini CNC engraving machines, small automation devices, and lab instruments. The stepped end design enables easy motor coupling and secure installation, ensuring stable, long-lasting performance in compact mechanical systems.

View more Slide Screws Video

View more Brass Flange Nuts

The one-end stepped design simplifies installation and alignment, making them ideal for tight spaces where precision mounting is critical. Each screw is machined to tight tolerances, ensuring minimal backlash and smooth movement even under continuous use. The brass nut provides excellent wear resistance, reducing maintenance needs while maintaining consistent motion accuracy over thousands of cycles.

These Miniature Slide Screws are a versatile solution for applications requiring compact linear drive systems. Common uses include 3D printer Z-axis mechanisms, micro-positioning stages for CNC equipment, small automation actuators, and robotics miniature drive systems. Custom sizes and thread specifications are available to meet your unique project requirements, whether you need a specific length, pitch, or diameter.

Key features:

• Precision-machined trapezoidal thread for reliable motion
• Integrated one-end stepped design for easy mounting
• High-quality brass nut included for smooth, low-friction operation
• Compact miniature size for space-constrained applications
• Durable construction for long service life in automation and 3D printing environments

Choose our miniature one-end stepped slide screws for a dependable, cost-effective linear motion solution built to perform in your most demanding small-scale projects.

Installation Instructions: Miniature Single-End Stepped Slide Screws with Brass Nuts

1. Preparation
   • Inspect the screw and brass nut for burrs or debris.
   • Clean both parts with a lint-free cloth; avoid harsh solvents.
2. Thread the Nut
   • Slowly screw the brass nut onto the slide screw by hand.
   • Do not force the nut; misalignment will cause binding.
3. Align the Stepped End
   • Insert the stepped end into your mounting bearing or bracket.
   • Ensure the screw sits flush and spins freely without wobble.
4. Secure the Assembly
   • Tighten the set screw or fastener on the mounting bracket to lock the stepped end.
   • Do not over-tighten, as this may deform the shaft.
5. Test Movement
   • Run the screw through its full travel range by hand.
   • Verify the nut moves smoothly with no binding, skipping, or unusual noise.
6. Initial Operation
   • Run a low-speed, low-load test cycle for 5–10 minutes.
   • Check for heat or excessive wear before full use.
