Clamping Shaft Collars – One Piece, Lever, 2 Tapped Holes
PRODUCT PARAMETERS
Description

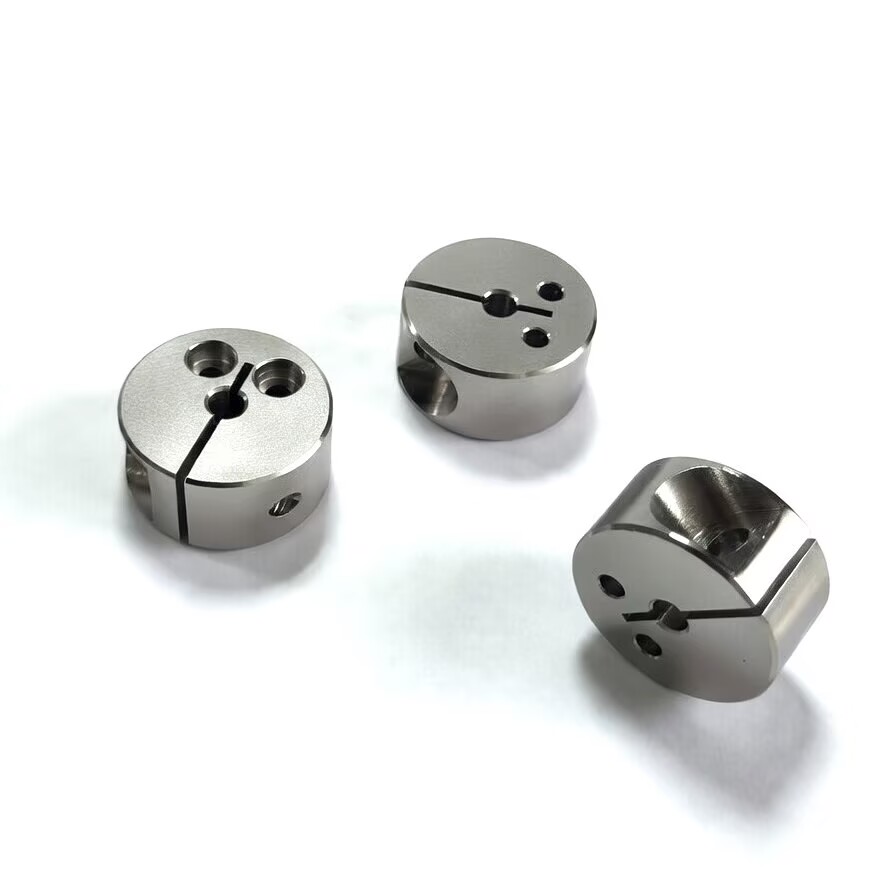

Steel Shaft Collar: Quick & Secure Shaft Locking Solution – A Key Component of Clamping Shaft Collars
The split steel shaft collar is designed for easy installation and adjustment, allowing for quick changes without the need for special tools. Its robust construction ensures reliable performance even in demanding environments. Available in various sizes and materials, it can accommodate a wide range of applications. This versatility makes it an ideal choice for industries such as automotive, aerospace, and manufacturing. Users appreciate its effectiveness in preventing slippage and maintaining precise positioning of components.
Utilizing Clamping Shaft Collars ensures optimal performance and reliability in various applications.

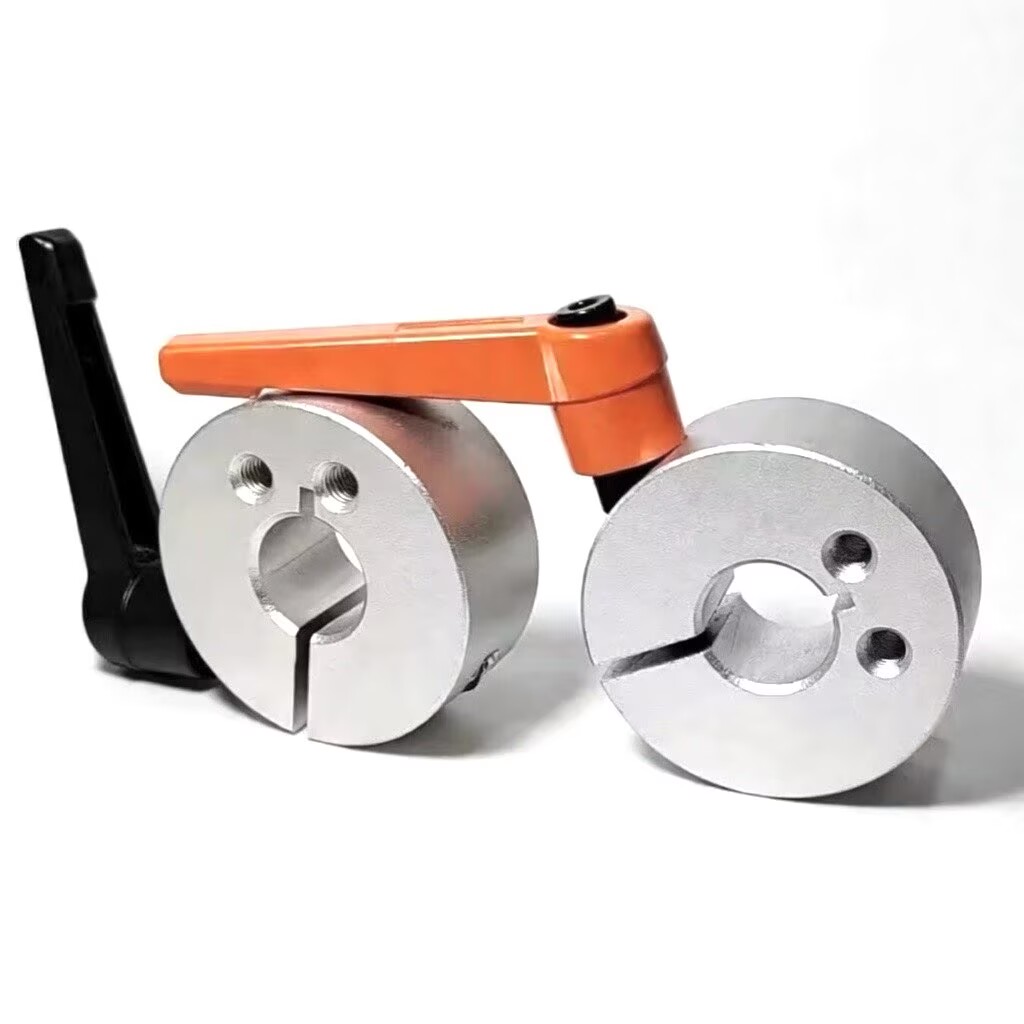

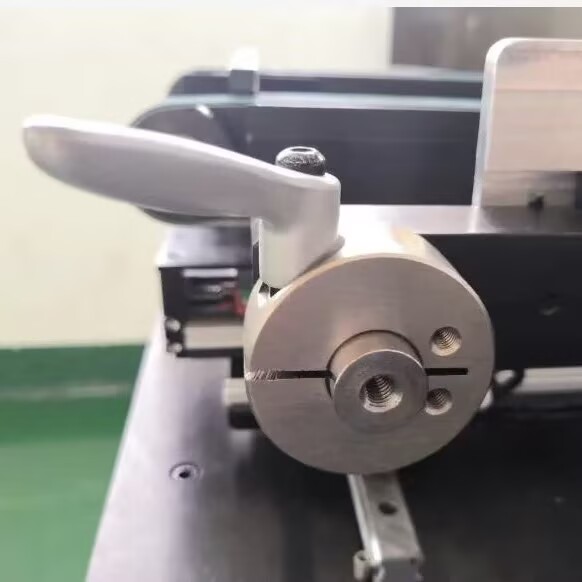

Our one-piece lever clamping shaft collars feature tool-free operation, 2 tapped holes, and steel/stainless steel options. They provide secure, damage-free clamping for automation, CNC machinery, and linear motion systems requiring frequent adjustments.
Key Features
Clamping Shaft Collars: Enhance Your Clamping Solutions
- Tool-Free Lever: Quick adjustment without tools, saving installation/maintenance time.
- One-Piece Design: Uniform clamping force, no shaft marring or slippage.
- 2 Tapped Holes: Flexible mounting for attachments/brackets.
- Dual Materials: Steel (general use) & 304/316 stainless steel (corrosion-resistant).
- Secure Clamping: Precision bore for tight fit, anti-vibration performance.
- Easy Installation: End-of-shaft mounting, compatible with standard shafts.
Specifications
| Specification | Steel Version | Stainless Steel Version |
| Material | High-Strength Carbon Steel | 304/316 Stainless Steel |
| Design | One-Piece, Lever-Activated | One-Piece, Lever-Activated |
| Tapped Holes | 2 Pcs (M5/M6/M8, Customizable) | 2 Pcs (M5/M6/M8, Customizable) |
| Bore Size | 6-50mm (Standard: 6,8,10,12,14,15,16,18,20,22,25,30,35,40,45,50mm; Custom Available) | 6-50mm (Same standard sizes; Custom Available) |
| Operating Temperature | -20°C to 120°C | -40°C to 150°C |
| Finish | Zinc-Plated (Anti-Rust) | Polished/Brushed (Corrosion-Resistant) |
| Clamping Force | Up to 5000N | Up to 4500N |
Application Scenarios
These collars are designed for quick installation and removal, streamlining the workflow in high-paced environments. Their robust construction allows them to withstand high torque and dynamic loads, making them suitable for demanding applications. Additionally, the option for corrosion-resistant materials ensures longevity in harsh settings. With their precision-engineered design, they contribute to the overall efficiency and safety of machinery operations. Users can customize their setup according to specific needs, enhancing adaptability across diverse projects.
Suitable for: Automation equipment, CNC machinery, packaging/printing machines, food processing (stainless steel only), marine equipment, material handling, test tools.
Why Choose Us?
Our shaft collars are designed for quick installation and removal, saving you valuable time during maintenance. With a strong grip and minimal wear on the shaft, they ensure longevity and reliability in demanding environments. The versatile design allows for easy customization, accommodating various shaft sizes and configurations. Choose our clamping shaft collars for a dependable solution that streamlines your operations and enhances productivity.
Tool-free convenience, damage-free clamping, versatile mounting, durable materials, and customizable options.
FAQs
- Q: Steel vs Stainless Steel? A: Steel for general use; stainless steel for corrosion-prone environments.
- Q: Custom sizes? A: Standard bore 6-50mm (listed sizes); custom bore/thread available—contact support.
- Q: Lever adjustability? A: Fixed lever, adjustable clamping force without tools.
- Q: Max shaft speed? A: Up to 3000 RPM (stainless steel better for high speed).
Order Information
MOQ: 1 | Bulk discounts (≥100 pieces). Lead Time: 1-3 days (in-stock), 7-10 days (custom). Global shipping. 1-year warranty.
Contact Us
Our clamping shaft collars are designed to streamline assembly processes, allowing quick adjustments without the need for additional tools. The robust construction ensures longevity, making them ideal for high-demand environments. Each collar is meticulously crafted for precision fit, minimizing play and enhancing overall system performance. With customizable options available, users can tailor these collars to their specific application needs, ensuring optimal functionality across various industries. Trust our commitment to quality and service for all your clamping needs.
For custom/bulk inquiries or support: ximi@jinstarparts.com | 24-hour response.
