Industrial Shaft Sliding Seat - Single/Dual Bushing Options

PRODUCT PARAMETERS

Single/Dual Bushing Shaft Fixing Base, Corrosion Resistant for Automation

Parameter	Single Bushing	Dual Bushing
Material	Aluminum Alloy/Carbon Steel	Aluminum Alloy/Carbon Steel
Bushing Material	Copper/POM/Stainless Steel	Copper/POM/Stainless Steel
Load Capacity	0-500N	500-2000N
Working Temp	-20℃~80℃	-20℃~80℃
Shaft Diameter	5mm-50mm (Customizable)	5mm-50mm (Customizable)

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

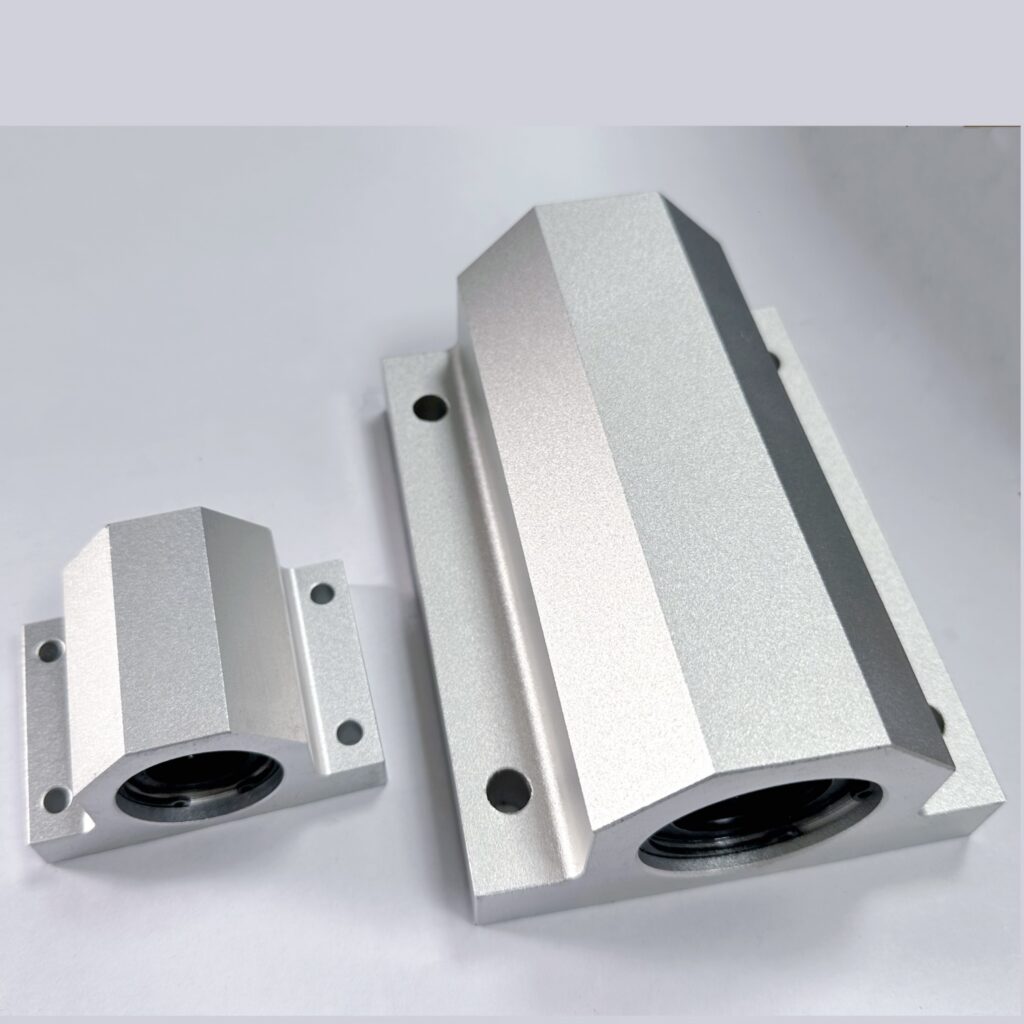

Single vs. Dual Bushing

Single Bushing: For light-medium load, compact structure, ideal for space-limited light-duty automation & small machinery.
Dual Bushing: For heavy load/high precision, enhances stability, reduces shaft deflection, suitable for heavy machinery & industrial automation lines.

Key Features

High precision sliding with minimal backlash
Durable anti-corrosion construction
Easy installation with standardized holes
Versatile for various shaft sizes & industries
Two models for different load/precision needs
