T-Shaped Bearing Housing, Base Mount, Retained

T-Shaped Base Mount Retained Bearings – Compact Housing Units | MISUMI Alternative

Discover premium T-Shaped Bearings with Housing — engineered for engineers who demand compact design, rock-solid stability, and easy installation. These base-mounted, retained bearing units combine a high-quality deep groove ball bearing inside a rigid T-shaped aluminum housing, delivering exceptional performance in space-limited applications.

Whether you call them BGHKB-style units, compact pillow block alternatives, or T-base retained bearing blocks, our units offer superior value for automation, machinery builders, and OEMs.

VIEW MORE VIDEOS

T-Shaped Bearing Housing Features & Benefits

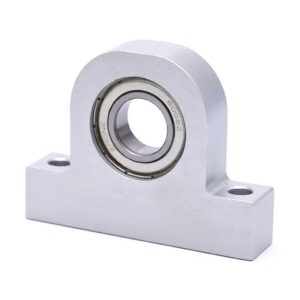

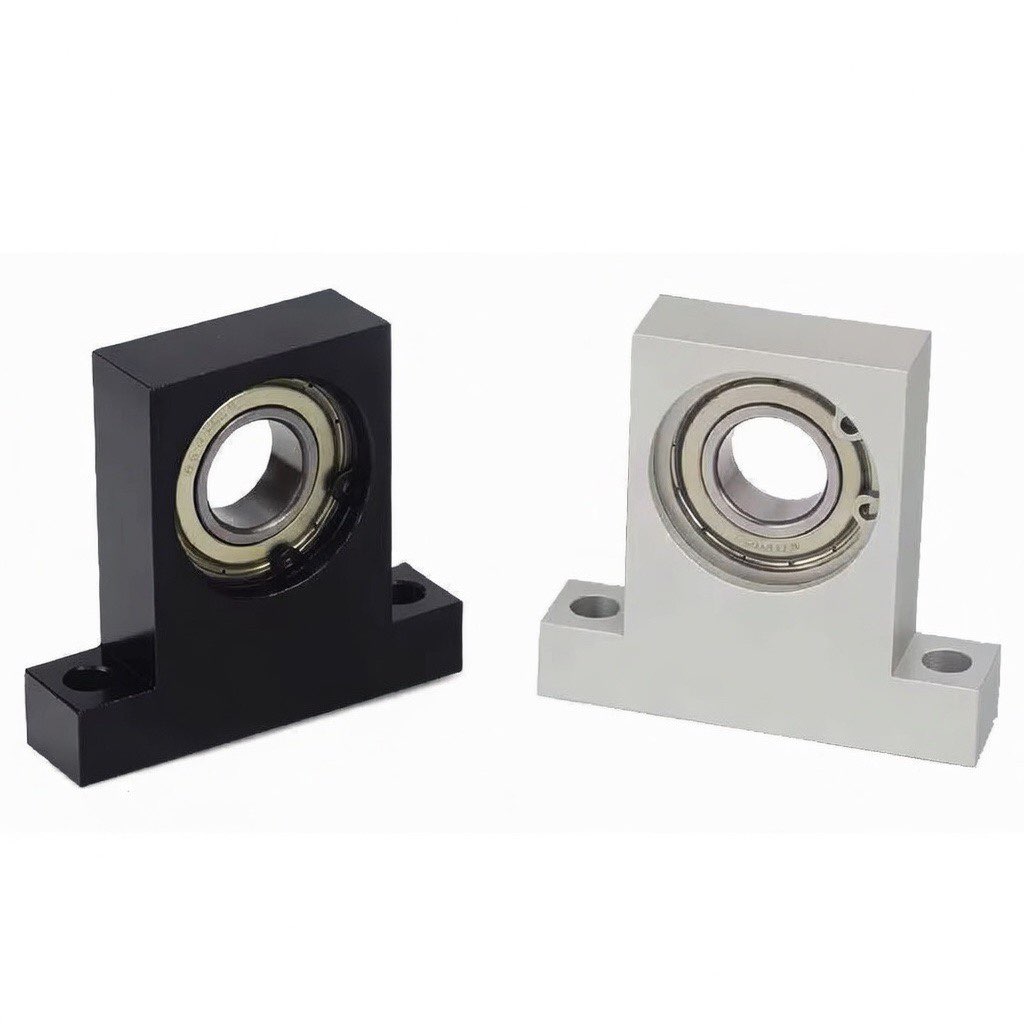

Space-Saving T-Shaped Design The unique T-shaped housing provides a stable base mount while keeping the overall footprint minimal. As shown in the product images above, the low-profile design allows mounting close to frames, plates, or extrusion systems where traditional pillow blocks or flange bearings simply won’t fit. The extended base with two mounting holes ensures secure attachment and excellent vibration resistance.

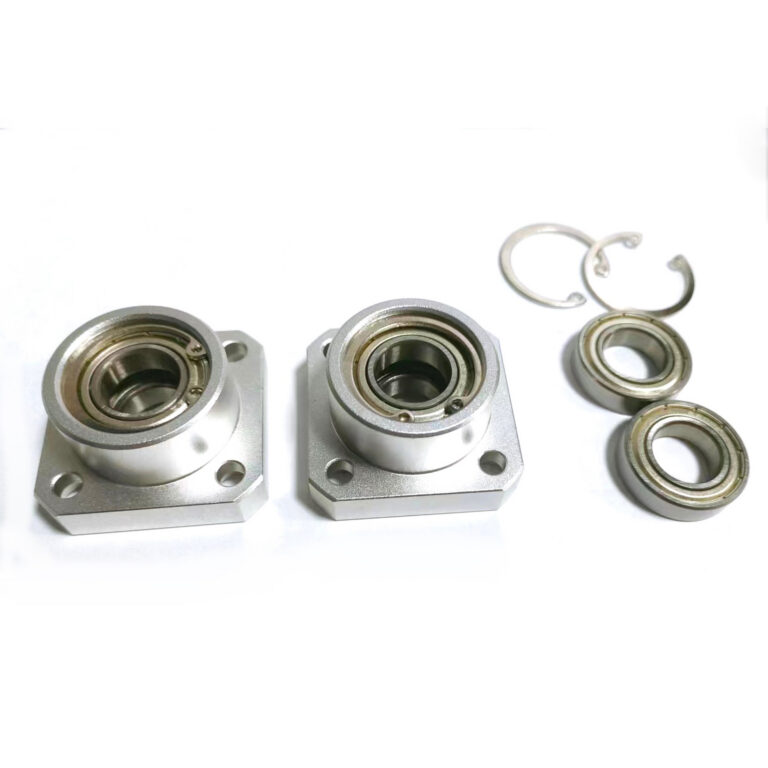

Secure Retaining Ring System These units are retained — the bearing is positively locked in the housing with a snap ring (retaining ring). This prevents axial movement, reduces noise, and increases reliability under dynamic loads and vibration. The visible retaining ring in the image highlights the precision engineering that keeps your shaft exactly where it belongs.

Premium Construction

• Bearing: High-precision deep groove ball bearing (steel or stainless options available)
• Housing: High-strength aluminum alloy – lightweight yet extremely rigid (black anodized or natural silver finish)
• Shaft Diameters: Available from 6mm to 30mm+
• Mounting: Base mount with counterbored or through holes for easy bolting
• Protection: Double shielded bearings for excellent dust resistance
• Load Capacity: Excellent radial load support with moderate axial capability

Easy Installation Simply bolt the T-base to any flat surface, slide in your shaft, and you’re ready to run. The precision-machined bore ensures accurate shaft alignment right out of the box.

Technical Specifications (Typical)

• Housing Type: T-Shaped, Base Mount, Single Bearing
• Retention: Yes – Retained with circlip/retaining ring
• Material: Aluminum alloy housing + Chrome steel bearing
• Finish: Anodized black or silver
• Temperature Range: -20°C to +100°C (higher with special grease)
• Speed Rating: Suitable for high-speed applications
• Lubrication: Pre-lubricated, maintenance-free in most applications

Multiple bore sizes and configurations are available to match your exact requirements.

Why Choose Our T-Shaped Bearing Housing?

1. Compact & Rigid – Ideal for tight machine designs
2. Cost-Effective – Premium quality at competitive prices
3. Reliable Retention – No more bearing walk or misalignment issues
4. Versatile – Perfect for both horizontal and vertical shaft orientations
5. Aesthetic & Functional – Clean, professional look in black or silver finishes (as pictured)

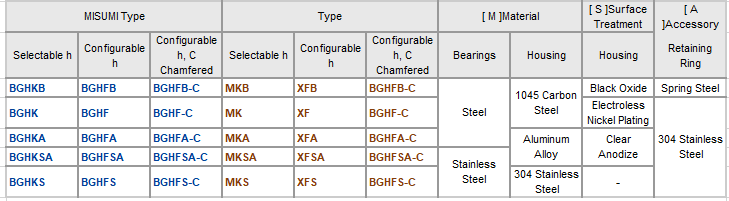

These units are direct high-quality alternatives to MISUMI BGHKB series and other Japanese brands — offering the same performance with better availability and pricing for independent machine builders and automation companies.

Common Applications

• Factory automation equipment
• Linear motion systems and gantry robots
• Conveyor and material handling systems
• Packaging and filling machinery
• CNC routers and 3D printers
• Aluminum extrusion frame projects (80/20, MakerBeam, etc.)
• Textile machinery and printing equipment
• Custom test fixtures and prototype machines

The T-shaped base makes these bearings especially popular in modular framing systems where space and clean design matter.

Installation & Maintenance Tips

• Mount on a flat, rigid surface for best alignment
• Use Loctite on mounting bolts in high-vibration environments
• Ensure proper shaft tolerance (h6 or h7 recommended)
• Most units are pre-lubricated for long service life
• Periodic inspection recommended in extremely dusty or high-speed applications

Frequently Asked Questions

Q: What does “Retained” mean? A: The bearing is axially fixed inside the housing using a retaining ring, preventing it from shifting under load or during operation.

Q: Are these compatible with MISUMI systems? A: Yes. Our T-shaped base mount bearings are designed as high-quality, drop-in alternatives to MISUMI BGHKB and similar series.

Q: Can they handle axial loads? A: Yes — deep groove ball bearings support moderate axial loads in both directions, enhanced by the retaining system.

Q: Which color should I choose? A: Black anodized for a sleek, modern look or natural silver for a clean industrial appearance. Both offer the same performance.

Order Your T-Shaped Base Mount Bearings Today

Ready to upgrade your machinery with reliable, compact Bearings with Housing – T-Shaped, Base Mount, Retained? Browse our full range of sizes and configurations. Fast shipping, technical support, and bulk pricing available for OEM and repeat customers.
