"Precision CNC Components. Built for Your Machine's Peak Performance."
Cantilever Shafts – Flanged, Tapped End
PRODUCT PARAMETERS
Description

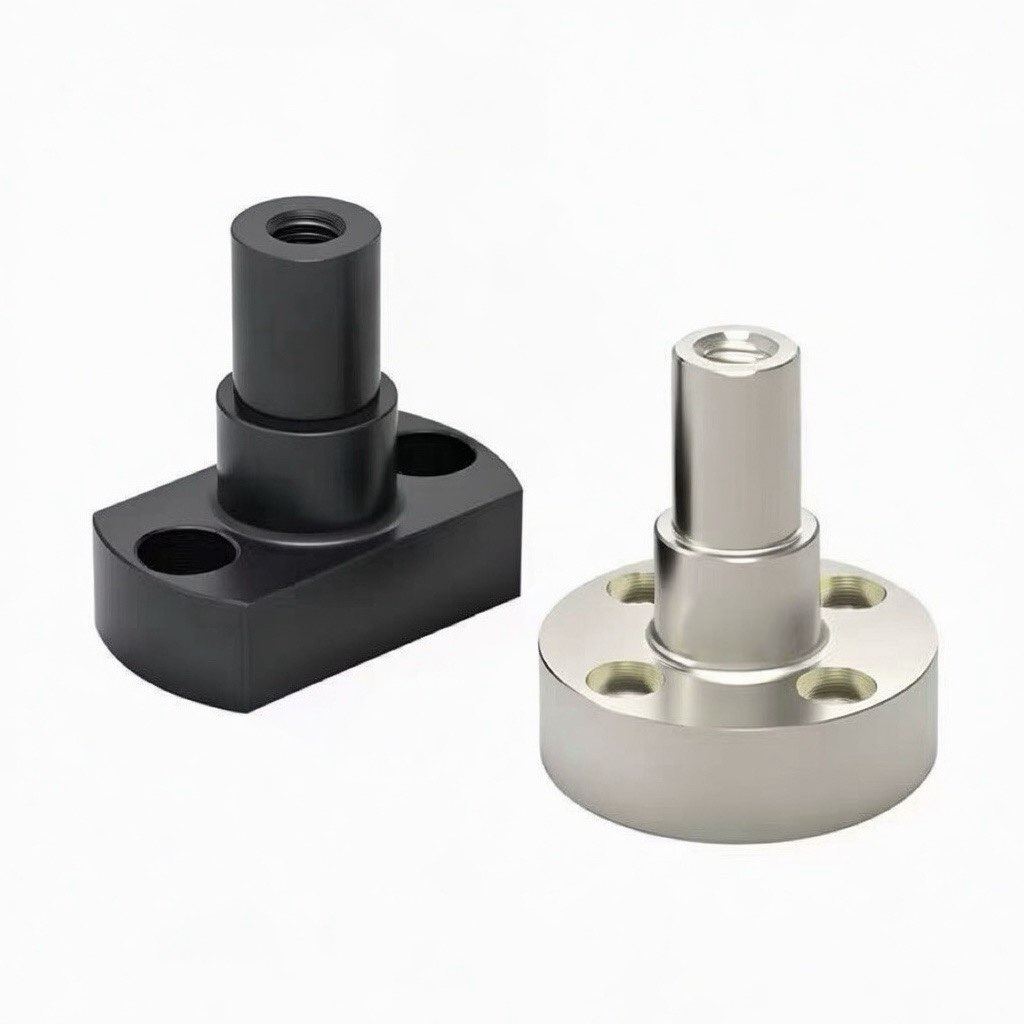

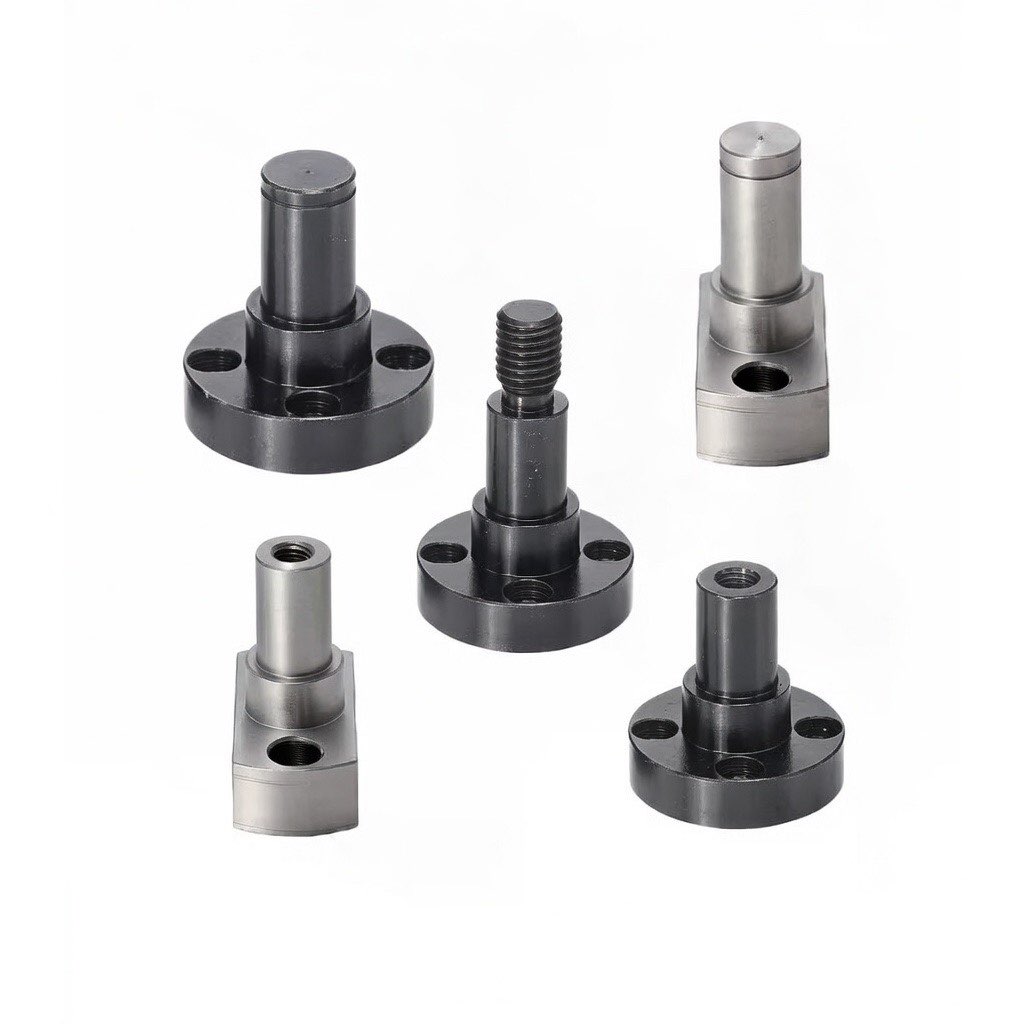

Precision Single-End Mounted Shafts | Flanged Base with Tapped End
We engineer high-precision Cantilever Shafts – Flanged, Tapped End specifically for applications that demand rigid, one-sided mounting. These flanged cantilever shafts combine a robust mounting flange with a precision-ground shaft body and a tapped end, making them ideal for space-limited installations where traditional double-supported shafts are not feasible.
Whether you’re building robotics systems, automation equipment, or custom machinery, our flanged cantilever shafts deliver exceptional rigidity, accuracy, and ease of installation.
These shafts are widely used in:
- Linear motion systems
- Robotics & automation equipment
- Pick-and-place machines
- Conveyor systems
- Packaging machinery
- Medical devices
- Semiconductor manufacturing equipment
Product Features & Benefits

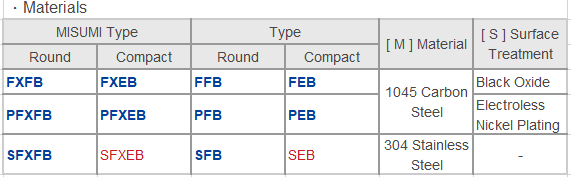

Our flanged cantilever shafts with tapped end are manufactured from premium materials and precision machined to tight tolerances. Here’s why engineers and manufacturers choose them:

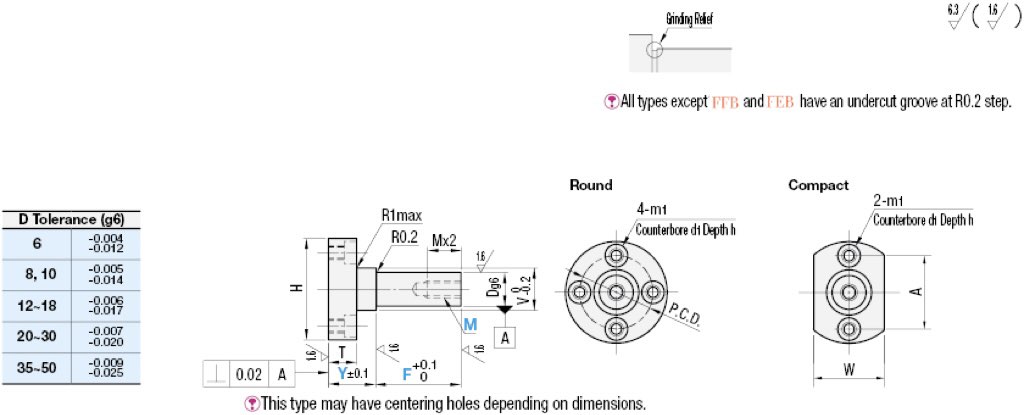

- Robust Flange Design: The integrated circular or square flange features multiple counterbored mounting holes (typically 2, 3, or 4 holes) for secure and stable attachment to machine frames or bases. This eliminates the need for additional shaft supports on the opposite end.
- Tapped End Configuration: We precision-tap the shaft end with internal threads. This allows you to easily and securely attach pulleys, timing belts, sensor brackets, arms, bearings, or other mechanical components using screws or threaded fasteners.
- Precision Ground Surface: We grind the shaft diameters to strict h6 or h7 tolerances. This ensures smooth linear motion when you pair them with linear bearings or bushings.
- High Rigidity & Low Deflection: The cantilever design is optimized for minimal bending under load, making these shafts suitable for high-speed and high-precision applications.
Applications
- Automation Industry – Support shafts for linear actuators
- Robotics – Joints and arm mechanisms
- CNC & Machinery – Guide shafts and positioning systems
- Conveyors – Roller and belt tensioning systems
Why Choose Our Cantilever Shafts?
- Fast Shipping – Most standard sizes ready to ship within 48 hours
- Competitive Pricing – Direct manufacturer pricing
- Strict Quality Control – 100% inspection before shipment
- Technical Support – Expert team ready to help with selection and customization
Related Products
- Linear Shafts (Supported & Unsupported)
- Linear Rails & Blocks
- Flanged Linear Bearings
- Shaft Supports (SHF / SK Series)
- Precision Lead Screws
Ready to order? Add to cart or contact our sales team for bulk pricing and custom specifications.
