Lead Screw Clamp Plates – Flanged with Bearings
PRODUCT PARAMETERS
Description
Lead Screw Clamp Plates – Flanged with Bearings | Precision Flanged Lead Screw Bearing Supports

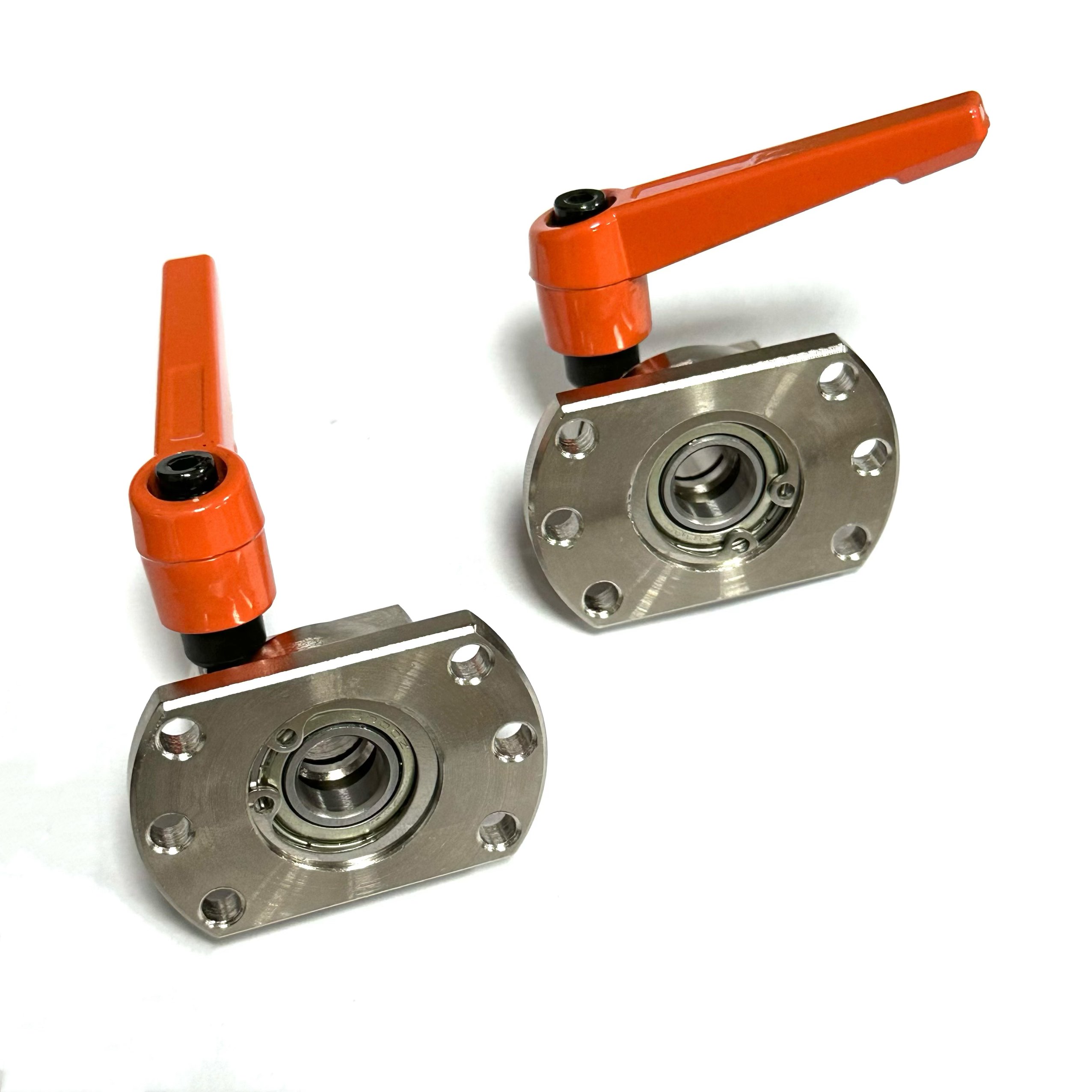

The Lead Screw Clamp Plates – Flanged with Bearings are premium precision support components designed for trapezoidal lead screws and ball screws in linear motion systems. Featuring a robust stainless steel flanged base with integrated high-precision bearings and a bright orange quick-lock handle, these clamp plates provide secure end support while ensuring smooth rotation and excellent stability.
Perfect for 3D printers, CNC routers, automation equipment, laser cutters, and precision instruments. The flanged design with multiple mounting holes allows for easy and rigid installation on various machine frames.
Lead Screw Clamp Plates | Misumi MTQDM Replacement Part | Exact Fit | In Stock Fast Shipping
High-Precision Flanged Lead Screw Bearing Plates with Quick-Lock Handles | Stainless Steel Mounting Brackets for Linear Motion Systems
Key Features & Benefits
- Integrated Precision Bearings: Built-in deep groove ball bearings reduce friction, minimize noise, and ensure smooth lead screw operation.
- Stainless Steel Construction: Made from high-grade SUS304 stainless steel for superior corrosion resistance and long-term durability.
- Quick-Lock Orange Handle: Ergonomic bright orange lever handle enables fast clamping and releasing, ideal for frequent adjustments.
- Wide Compatibility: Supports common lead screw sizes including 8mm, 10mm, 12mm, and 16mm trapezoidal screws.
Why Choose Our Lead Screw Clamp Plates?
- Superior Rigidity & Stability: Heavy-duty flange combined with precision bearings effectively reduces screw whip and resonance for high-accuracy positioning.
- Easy Installation & Adjustment: The quick-lock handle makes setup and fine-tuning fast and convenient, perfect for prototyping and production lines.
- Excellent Durability: Premium stainless steel and high-quality bearings ensure reliable performance under high loads and continuous operation.
- Professional Industrial Design: Sleek brushed stainless steel finish paired with vibrant orange handles looks modern and professional on any machine.
Applications
- 3D Printers and Laser Engraving Machines
- CNC Routers and Milling Machines
- Automated Linear Motion Platforms
- Medical and Laboratory Equipment
- Robotics and Industrial Automation
- Smart Home and DIY Projects
What’s Included
Each set includes one complete flanged clamp plate with integrated bearings and quick-lock handle.We do not include mounting bolts. Standard M6/M8 bolts are recommended.
Installation Guide
1. Insert the end of the lead screw into the bearing bore.
2. Secure the flange to your machine base using bolts through the mounting holes.
3. Rotate the orange handle to lock the screw in place.
4. Check alignment and smooth rotation before full operation.
FAQ
What lead screw sizes do we support?
Standard versions support 8mm, 10mm, 12mm, and 16mm trapezoidal lead screws. Custom sizes available upon request. Are the bearings replaceable?
Yes, we use standard bearing models for easy maintenance and replacement. Do you offer bulk discounts?
Yes, we provide competitive pricing for wholesale and bulk orders.
Ready to Upgrade Your Linear System?
Contact us today for pricing, customization, or technical support.
